PureFlow AirDog
Raptor™ 100 & 150 1998.5- 2002 Dodge Cummins
Section 5 Fuel Lines
Section 5A: Connecting the Raptor™ to the Filter Canister.
5A-1. Remove the Banjo Fitting and fuel supply line from the original factory fuel filter
canister.

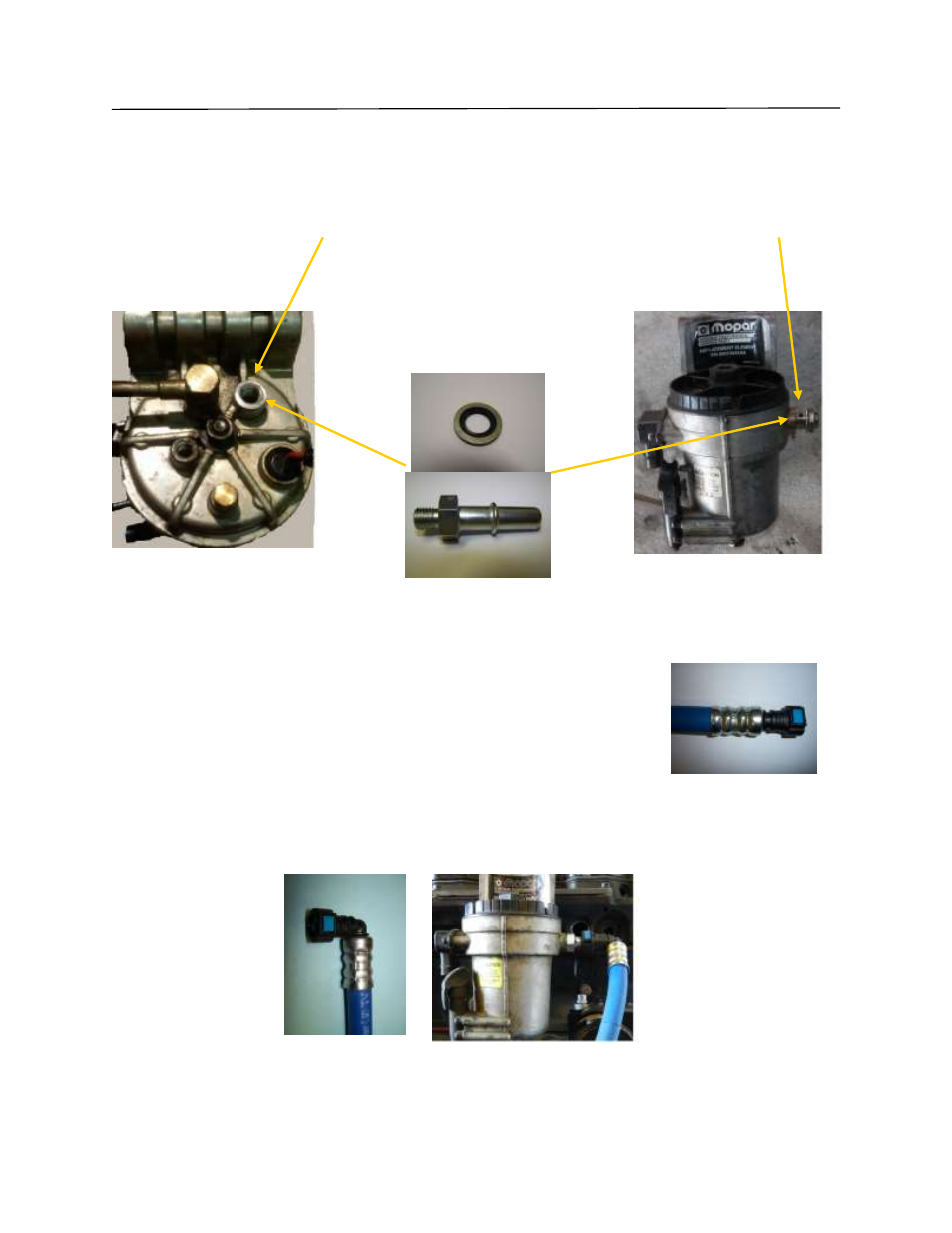

Fuel Filter Canister
1998.5 - 1999 2000 - 2002
Figure 7 Figure 8
5A-2. Install the 12mm X ½” Male SAE J2044 Quick Connect Fitting with supplied seal
washer into the inlet port on the fuel filter canister. Properly torque the fitting. Do not
over tighten. The fitting could crack or break!
5A-3. Insert the female quick connect end (see figure 9) of the
“Pressure Hose Assembly” into the male quick connect fitting
previously installed in the port marked “OUT”. You will hear a
“click” when it connects.
Figure 9
5A-4. Connect the other end of the “Pressure Hose Assembly” (Figure 10) to
the inlet fitting installed in step 5A-2. It will “click” when properly connected.
Figure 10
