PureFlow AirDog
Raptor™ 100 & 150 1998.5- 2002 Dodge Cummins
Section 8 Cleaning GeRotor of debris
Cleaning Debris from the Raptor Pump Gerotor Assembly.

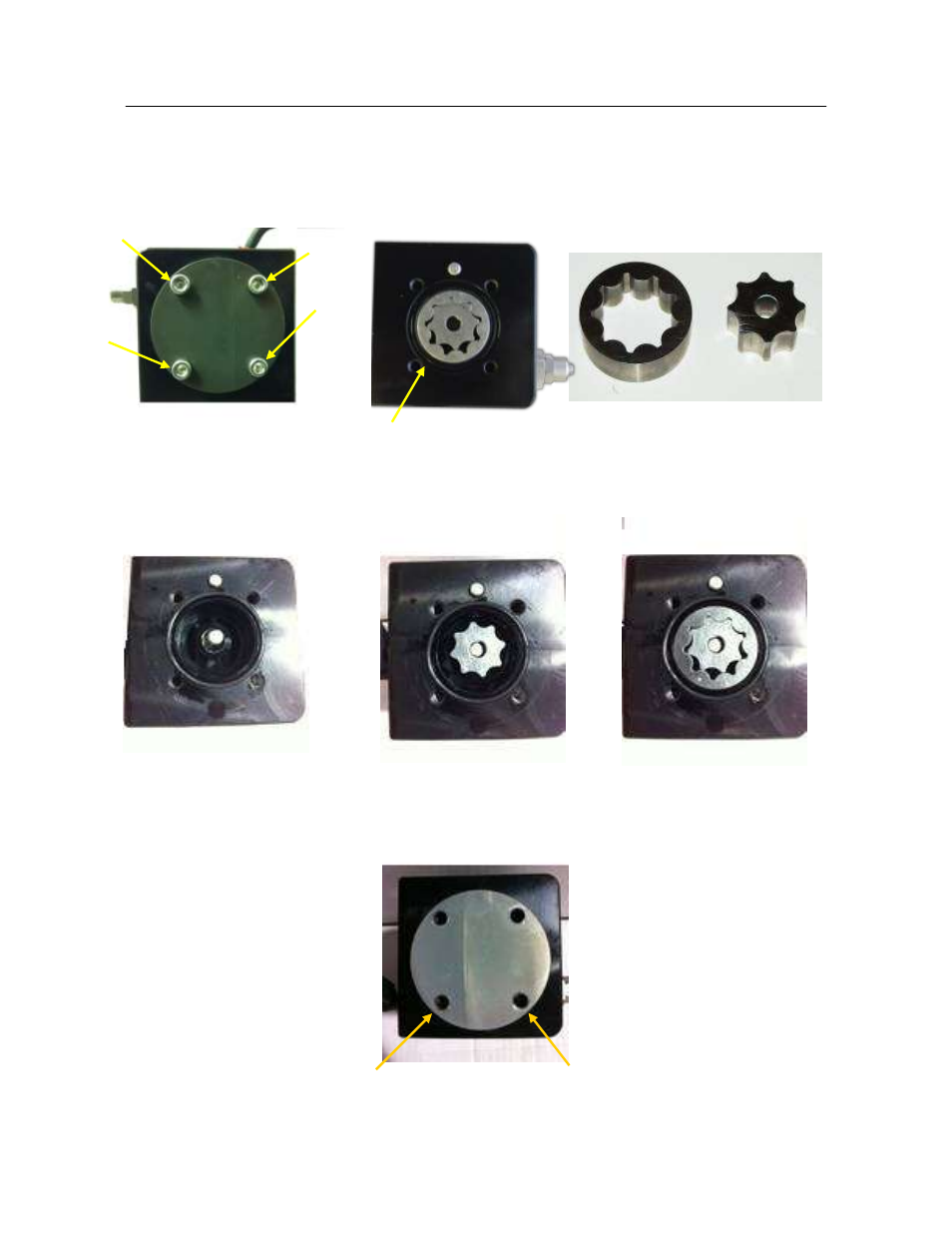

Step 1 Step 2 Step 3
Remove the four (4) socket Carefully remove the O-ring, Remove and clean the gerotor.
head cap crews that secure you will need to re-use it.
The rotor should come out very
easily. If it doesn’t there may be
something jammed inside it.
Step 4 Step 5 Step 6
Remove the O-rings and clean
Replace the center gear. Align and install the outer
the inside of the gerotor pocket. gear and O-rings.
Step 7
Install the gerotor cap. Be very
careful not to dislodge or pinch the O-rings.
Tighten the cap screws in an opposing pattern.
