15
PureFlow AirDog
Raptor™ 100 & 150 1998.5- 2002 Dodge Cummins
Section 6 Electrical Harness
Connecting the Raptor™ Power Supply Leads

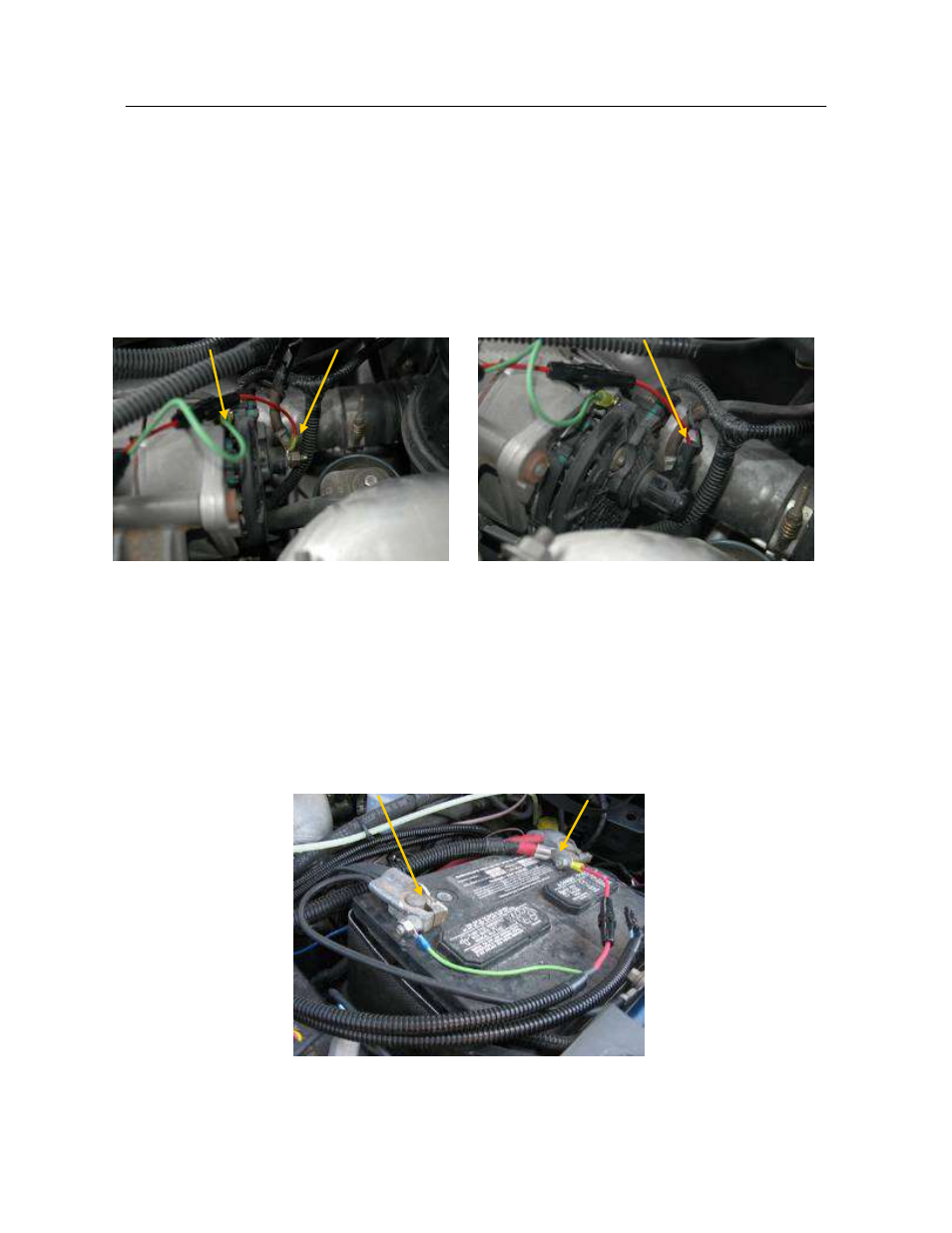

NOTE: The “Hot Lead” & “Ground Wire” can be connected to either the Alternator, Figure 22
& 23; or the Battery, Figure 24.
Connecting the power supply leads to the alternator instead of the battery will
create a corrosion free connection.
Green (-) Red (+) Replace the Protective Cover
Figure 22 Figure 23
7-3.
Route the Red & Green power supply leads to the alternator
Connect the Green (-) lead to the alternator Chassis Ground connection. Connect the
Red (+) lead to the alternator Hot Lead.
6-5.
To connect to the battery, connect the RED (+) lead to the POSITIVE (+) post of the
driver’s side battery. Connect the GREEN (-) lead to the NEGATIVE (-) post of the same
battery.
Green (-) Red (+)
Figure 24
BE SURE TO PROPERLY SECURE THE WIRING HARNESS TO THE VEHICLE.
