HYDRAULIC CIRCUITS
6036 8990417 8-18

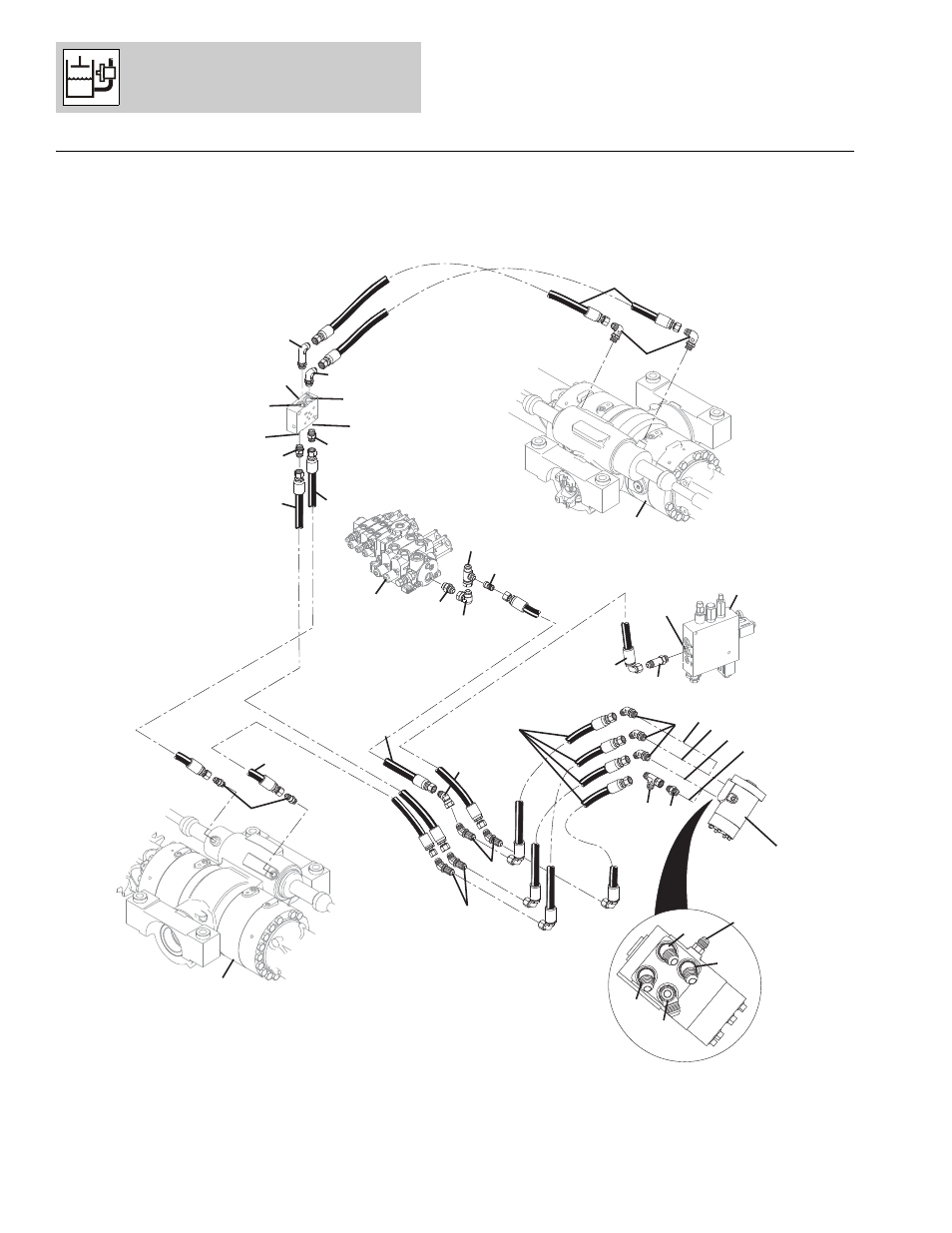

Figure 8-5 Power Steering
16
17
15
8 1
15
18
19
20
21
17
4
6
11
2
12
13 14
5
10
7
7
9
3
15
23
24
25
26
PA3492
PORT
“PS”
PORT
“T”
PORT
“A”
PORT
“P”
PORT
“B”
“T”
“L”
“R”
“P”
“T”
“L”
“R”
“P”
“LS”
SECONDARY
FUNCTION
MANIFOLD
