OPERATION
!
NOTES: To keep the battery in prime condition it is best to charge the battery
after each use, and every 3 months if stored. After each use charge for 24
hours to ensure the battery is fully charged.
The battery will not be damaged if it is charged for longer than 24 hours, but it
is advisable not to leave it on for more than 48 hours, since this might shorten
the battery life.
IMPORTANT: Charge the battery after each use. Never store the Mower with a
FLAT battery.

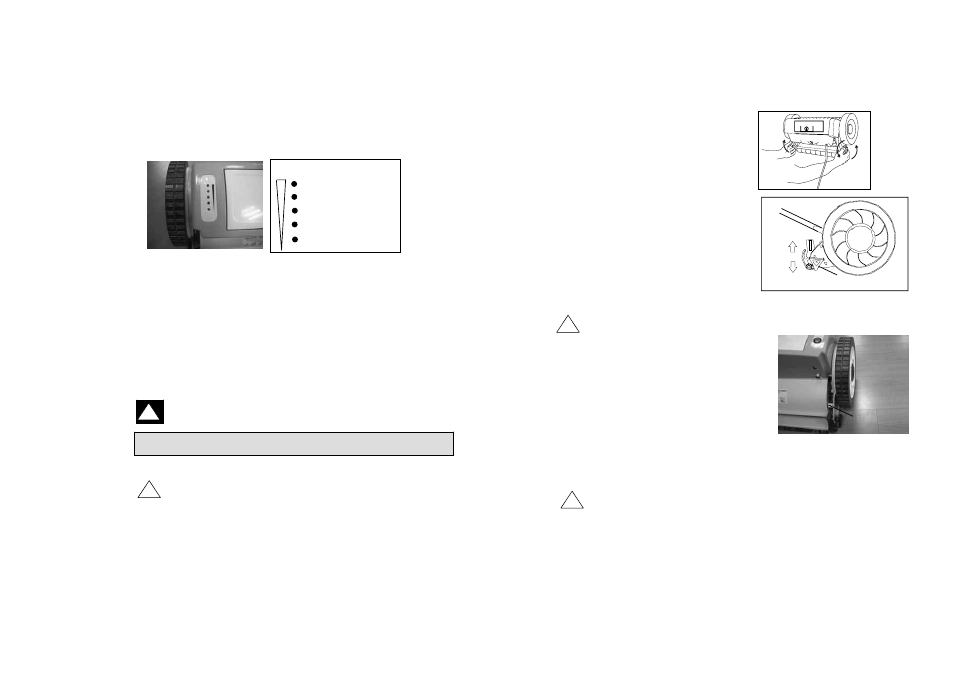

CHARGING INSTRUCTIONS: there are 5 LED on the main unit, The first three Led
Middle Power
High Power
Lower Power
Charging Reminder
Charging Indicator
Green
Green
Green
Red
Explanation Color
are showing the power capacity of the mower during operating. When the first 3
LED turn off and the fourth LED turns darker, it reminds you that the mower is
lack of power and need to be charged. The last LED is charging indicator,when it
turns Green, the mower charging is finished. See below explanation for details:
Green
Only use the charger supplied with this product. Do not attempt to charge
this product with any other charger nor attempt to charge any product with
this charger, as it can cause damage and will invalidate your guarantee.
1.Cutting Height Adjustment
! Caution:For safety ensure that the Battery is removed from the Mower
before adjusting the cutting height.
The cutting height of the Mower ma y be adjusted from approximately 7.8 inches
(20cm) up to approximately 19.5 inches(50cm). Actual height may vary according
to the height of the grass . Adjust the mower to the desired height as follows:
(1)Ensure that the roller is fitted flat, it is recommended that the height is adjusted
on a level surface. It is also recommended that the grass catcher be removed as
this will allow easier access to the adjustment knobs.
Green
8
Owner’s Manual
(2) Loosen the two large black knobs,
one on each side of the mower
body, to allow movement of the
roller arms.(See Figure 9)
(3)Slide the roller supports until the roller
is at the required position, ensuring that
it is level and the knobs are at the same
height.
(4)Tighten the knobs on both sides ensuring
they are at the same height and properly
secured.(See Figure 10)
Figure 9
2.Blade Adjustment
Height Cut
Low Cut
Knob Figure 10
Warning: Blades are Extremely sharp, to avoid injury be careful not to touch !
blades when make adjustments.
Adjustment Nut
Blade have been pre-adjusted prior to leaving factory.
Misalignment can sometimes occur;often caused by
blades being too loose or too tight against the
cutting bar. This can cause an uneven cut or make
the mower hard to push.
To Correct misalignment, adjustments to the cutting
bar are needed.
Each end of the cutting bar can be adjusted separately.
The cutting bar pivots, It is located under the blade.
Turn the two adjustment nuts clockwise to tighten;
this moves the cutting bar closer in toward the blade.Turn the two adjustment nuts
counter-clockwise to loosen and move the cutting bar farther away from the blade.
NOTE:Adjusting the nuts while making blade adjustments is a very sensitive procedure.
, t u n t n e m t s u j d a e n o g n i n e t h g i t e r o f e B . t n e m t s u j d a r o j a m a d e r e d i s n o c s i " 6 1 / 1 f o n r u t A
make sure to adjust the opposite nut an equal amount.
Do not over-tighten adjustemnt nut, as this could damage cutting bar.
