ARB 3936020 - Manual (Page 4)

13/6/08 Page 4 of 11 3786946

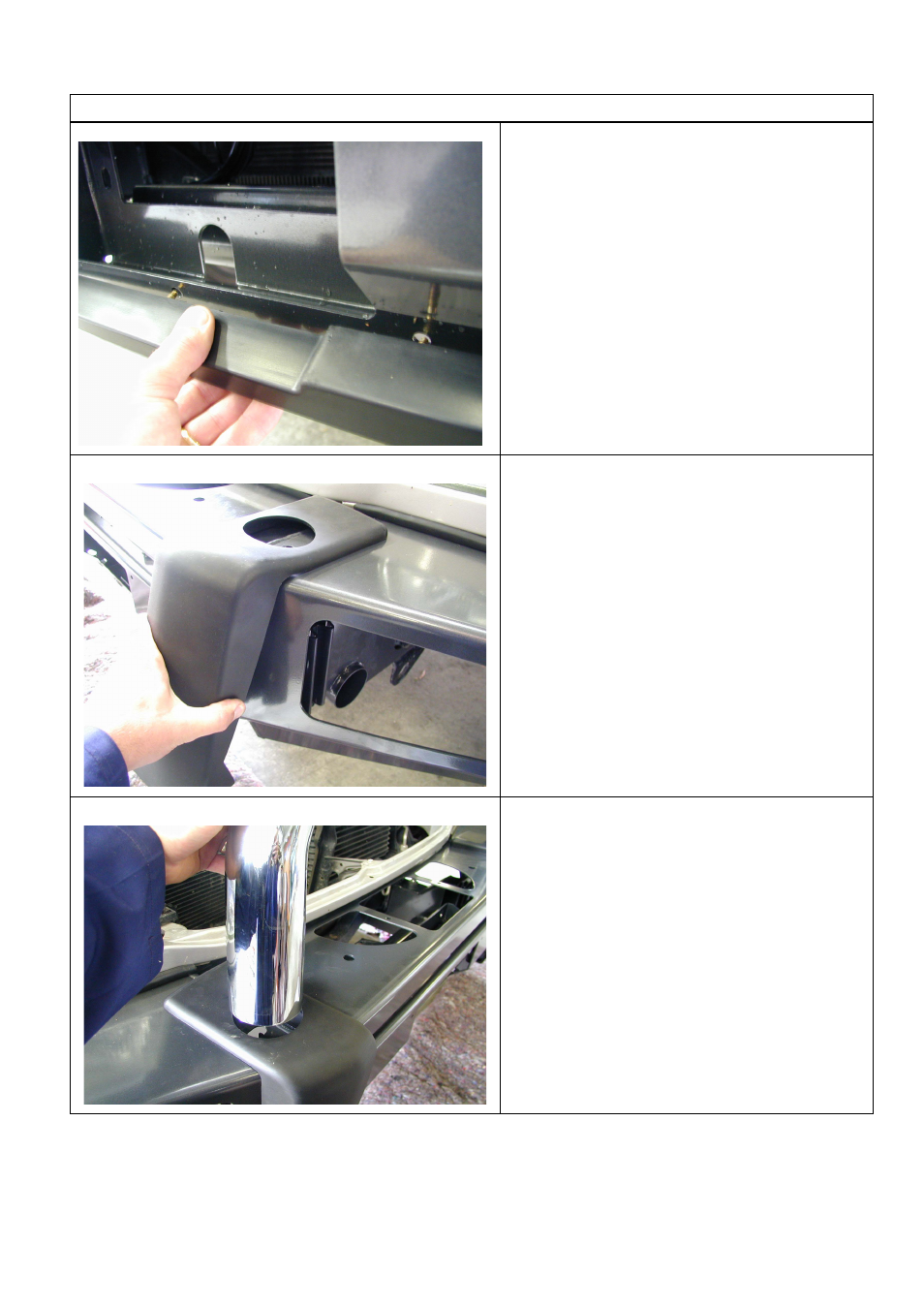

ASSEMBLY SEQUENCE FOR WINCH BUMPER.
1. Position the lower buffer on the winch bumper
and assemble using the M6 flange nuts. (do
not over-tighten)
2. Insert the side buffers through the holes and
fix using the M6 flange nuts. (do not
overtighten)
If fitting optional fog lights, do so now.
Refer to the instructions provided in the fog
light kit.
3. Push the top tube through the hole in the
buffer and fasten using the M12 x 40mm bolts,
washers and spring washers.
Go to step 4 if not fitting top tube
