ARB 3936020 User Manual
Page 10
13/6/08
Page 10 of 11
3786946
18.

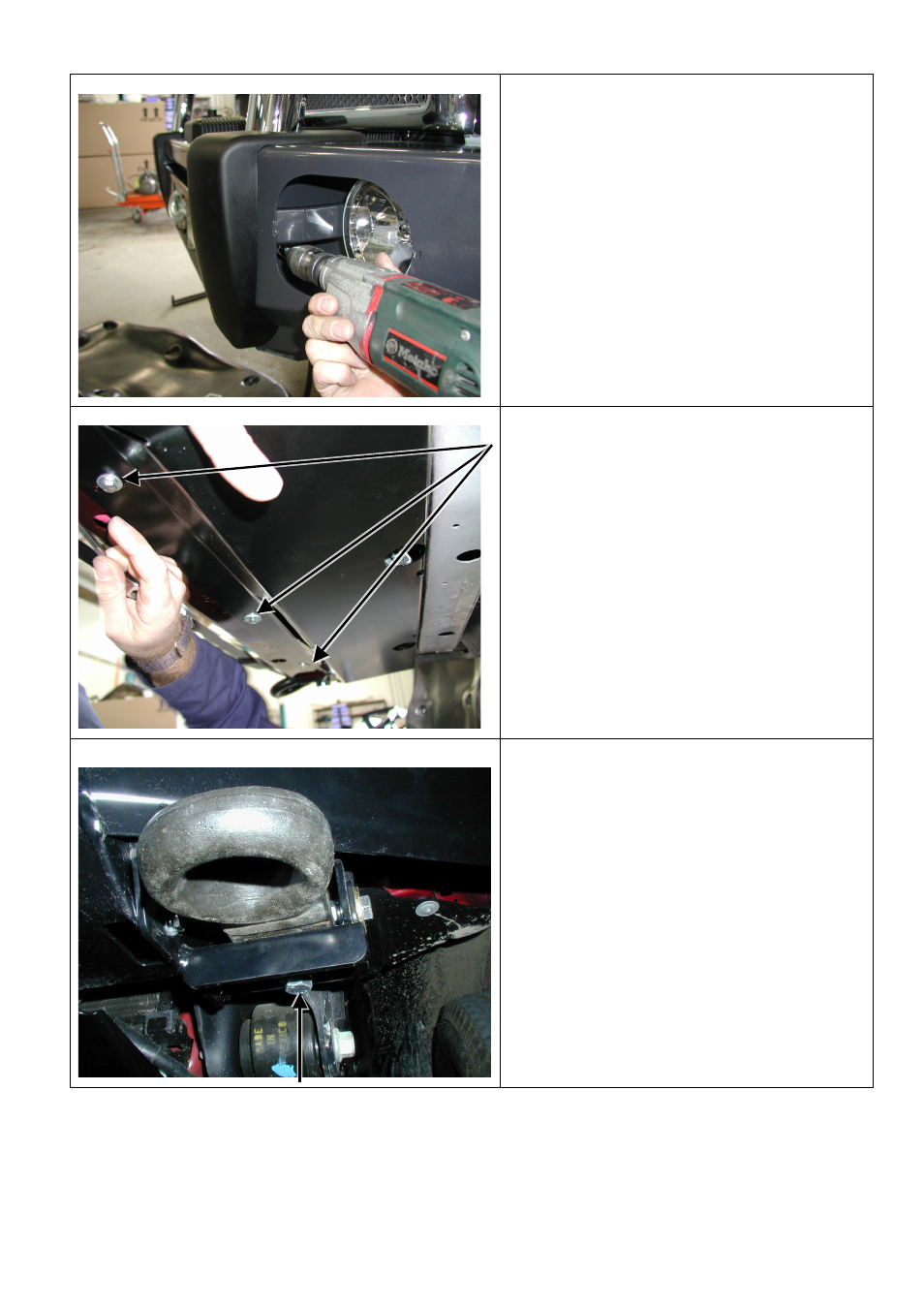

The bar must be pin bolted to the mount
brackets. Using a drill and 10mm drill bit, drill
through the upper and lower Ø10mm holes
located in the mount brackets.
Fasten the holes using M10 bolts, flat washers
and spring washers.
19.
Fit three M8 cage nuts to square holes inside
the bar. Bolt the deflector to the bar using M8
bolts, large M8 flat washers and spring
washers.
20.
Bolt the tow hooks to the mount brackets using
the M12 x 40mm bolts, flat washers and spring
washers.
