PREPARATION TO VEHICLE
1. Remove licence plate from the vehicle and
set aside
.
2. Remove the three plastic scrivets securing
the bumper in the intake area behind the
licence plate location
3. Remove the bolts from the spoiler between
the lower bumper and sump guard

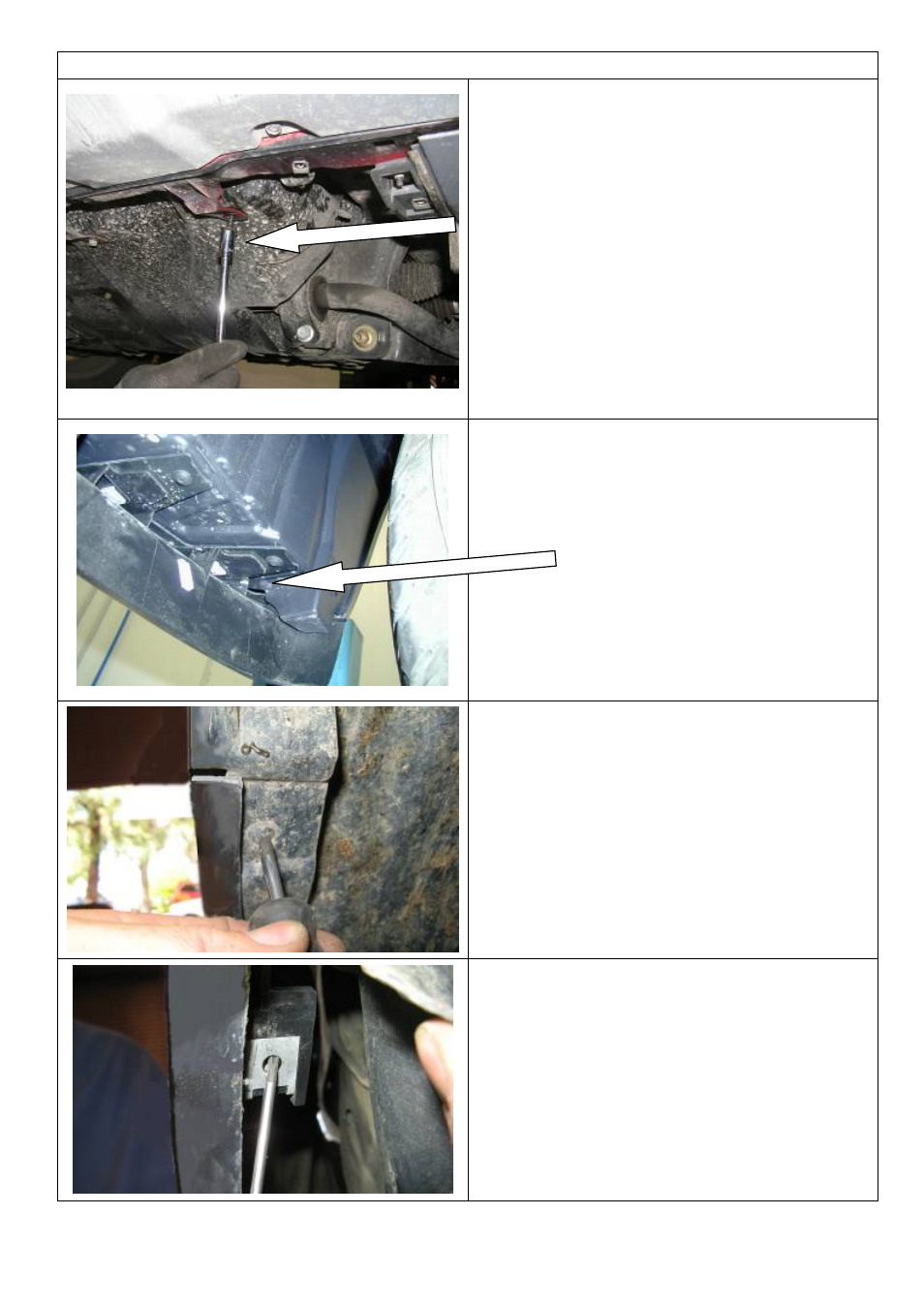

4. Remove the four lower bolts that attach the
lower bumper tabs to the vehicle (refer to
attached photo). There are also another two
self tapping screws in each side, located in a
recess in the lower bumper face – these need
to be removed.
5. Remove the two bolts and screw from the
fender opening area each side that attaches
the bumper bar to the plastic inner guard liner
as shown.
6. Remove the screws securing the fender liners
to bumper in the forward wheel arch areas
7. Remove the screws and speed nuts from the
bumper on each side in the wheel arch area
located vertically above wheel and tire.
