Bull bar fitment to vehicle – ARB 3438320 User Manual
Page 16
Last Rev Date: 17/11/2009
Page 16 of 18
Fitting instructions# 3787059
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
BULL BAR FITMENT TO VEHICLE

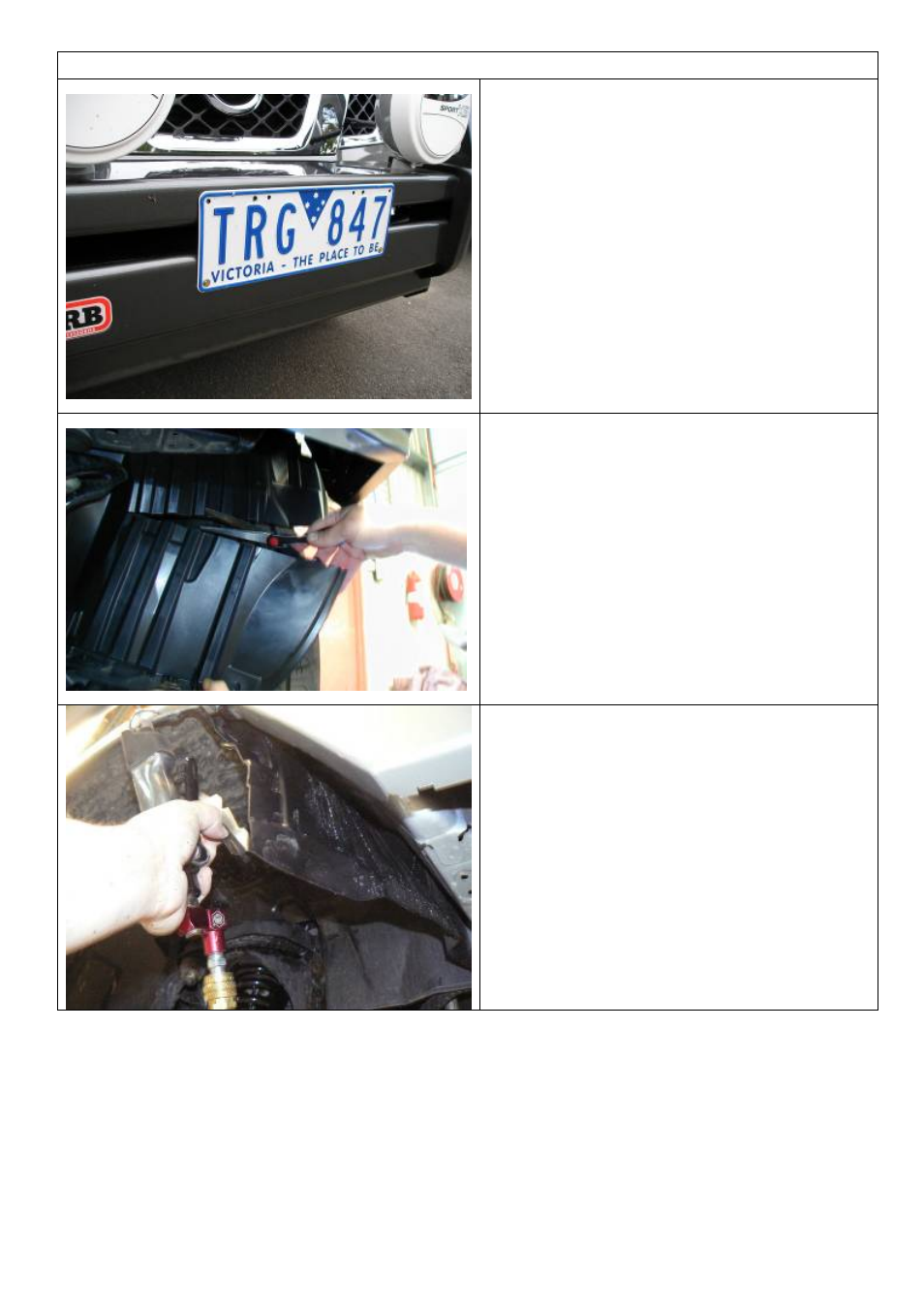

64. The licence plate can now be attached to
the bull bar. Insert the two plastic square
plugs supplied into the two square holes in
the face of the bull bar.
65. If winch fitted, position the licence plate as
shown fastening using lower holes. If winch
not fitted use the top row of holes, licence
plate is positioned lower and covers RFL
opening in front of bull bar
66. Using the two dome head screws supplied
screw into position firmly.
67. Trim the fender liner horizontally level with
the bottom edge of the bull bar wing
68. Trim the fender liner vertical edge so that it
has about 20mm (3/4”) overlap to clip in
behind wing return
