ARB 3462020 User Manual
Page 6
11/10/05
Page 6 of 14
3783176

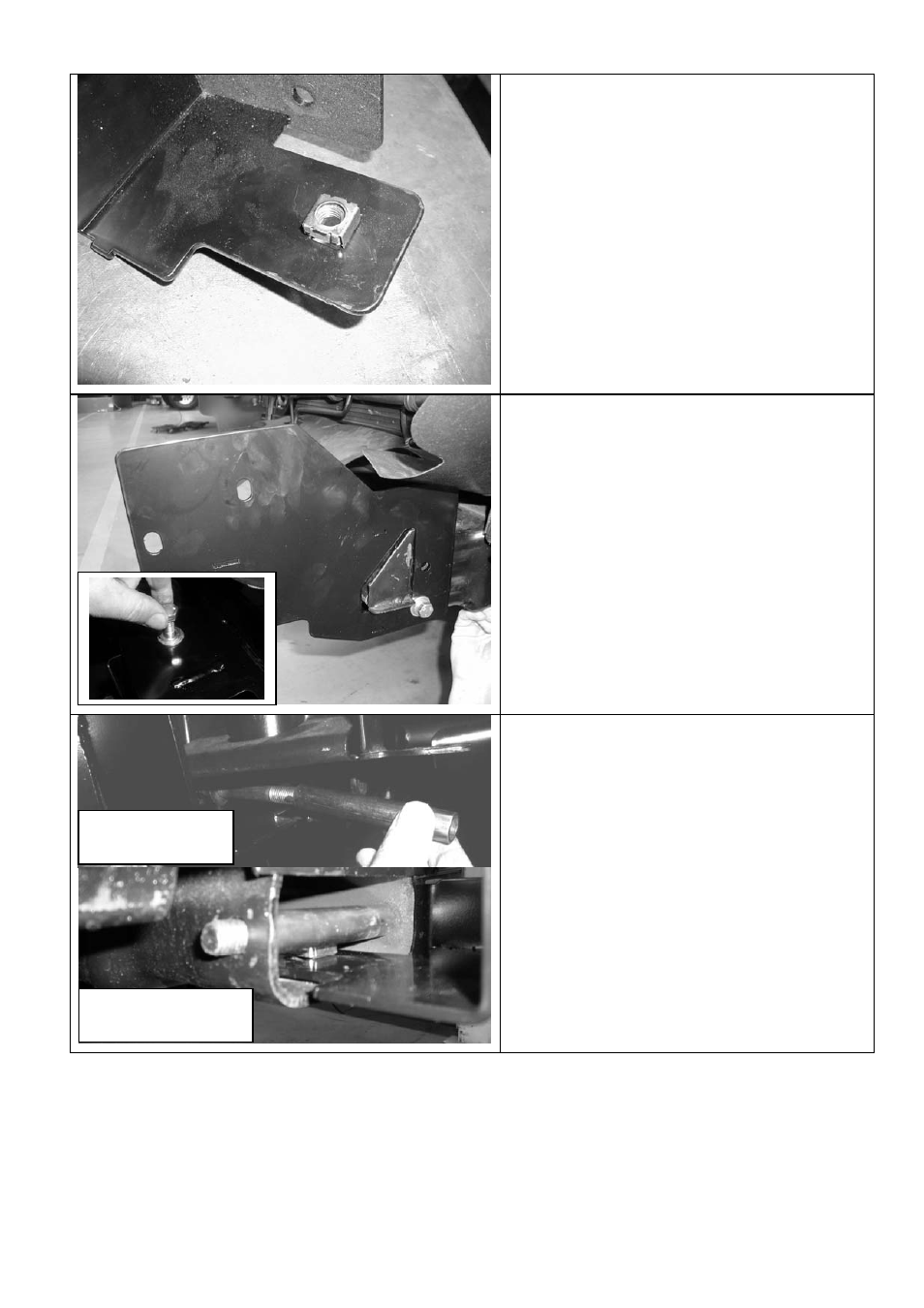

1.7 Fit cage nuts to bracket tangs as shown
1.8 Position the mount brackets as shown on
the ends of the chassis rails (LHS shown).
Loosely fit an M12 bolt and washer set to
top bolt position and lower position as
shown finger tight only.
1.9 Partly withdraw M12 x 150 bolt and fit
crush sleeve over bolt body inside chassis
as shown. Fit flat and spring washers, and
nut. Do not tighten.
Sleeve in position
Inserting sleeve
