11/10/05 Page 12 of 13 3783177
4.

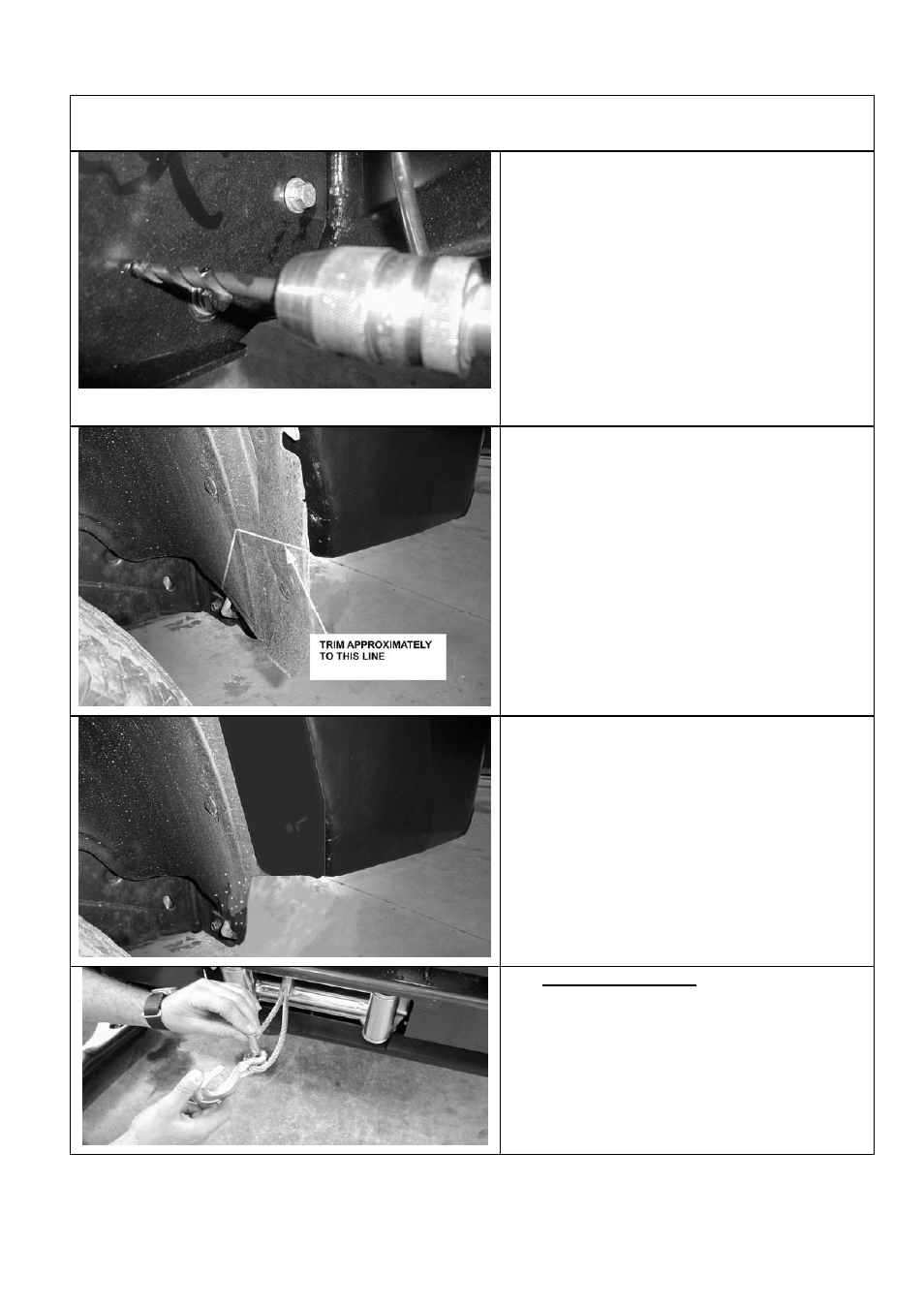

FITTING BULL BAR TO VEHICLE
4.1 Using two people, three if winch fitted,
position the bar assembly on the vehicle
mounts.
Bolt the bar to the mounts using M12
bolts, large flat washers and spring
washers. Align the bar to the profile of the
guards, grille and light profile and tighten
all bolts.
Using the M10 pilot holes in mount
brackets, drill pinning hole through
uprights on bull bar. Fit M10 screw,
washer set and flange nut and do up tight.
4.2 Trim excess plastic inner guard molding to
meet lower profile of bull bar wing. Note
the position of water bottle on LHS of
vehicle and trim neatly around it.
4.3 Fit inner guard plates to ends of bull bar
wings and fasten with M6 black screws
and washers.
4.4 If fitting with winch
With the winch cable through the roller fair
lead. Mount the hook to the end of the
cable.
