ARB 3462020 - Manual (Page 13)

11/10/05 Page 13 of 14 3783176

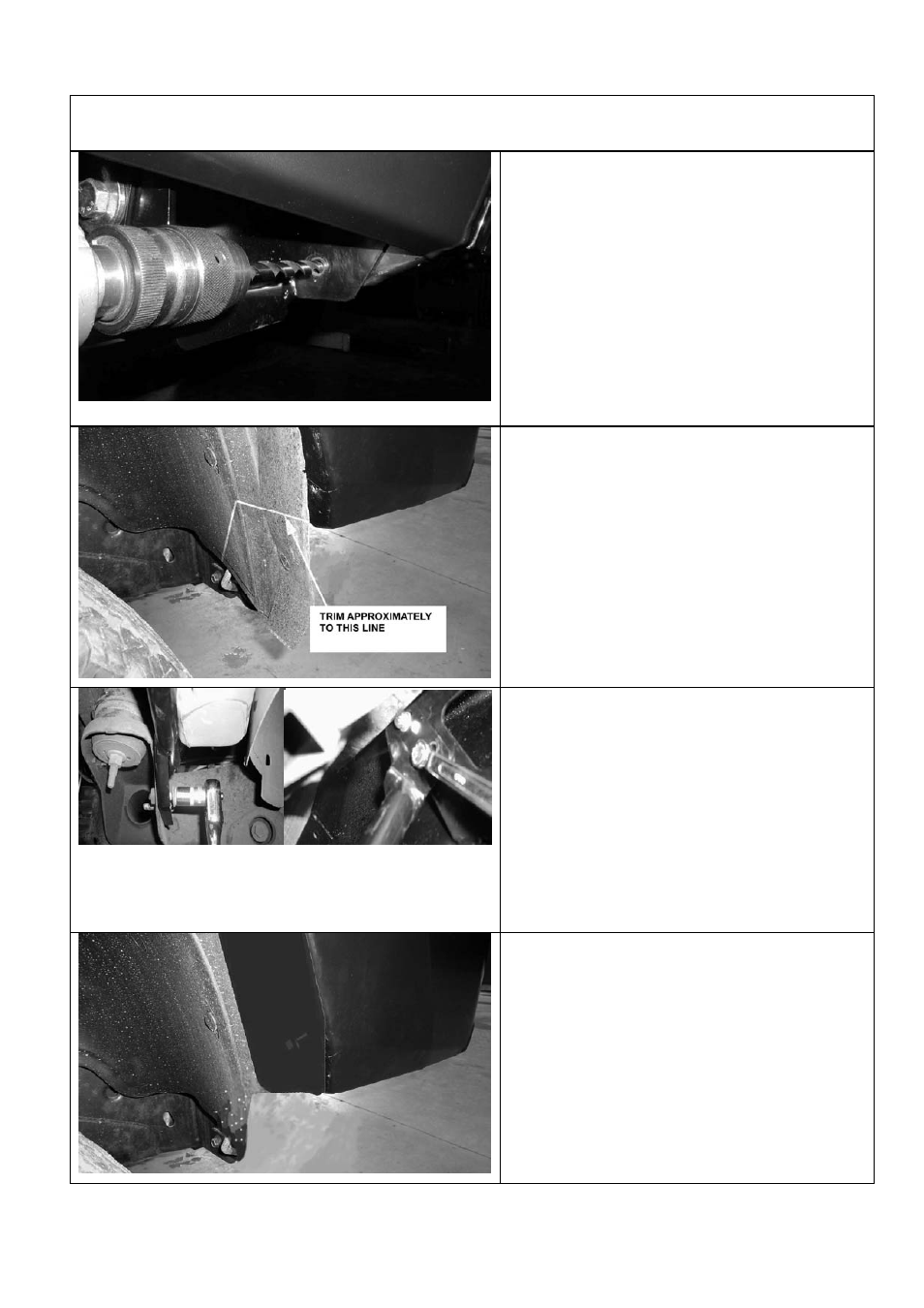

4.
FITTING BULL BAR TO VEHICLE
4.1 Using two people, three if winch fitted,
position the bar assembly on the vehicle
mounts.
Bolt the bar to the mounts using M12
bolts, large flat washers and spring
washers. Align the bar to the profile of the
guards, grille and light profile and tighten
all bolts.
Using the M10 pilot holes in mount
brackets, drill pinning hole through
uprights on bull bar. Fit M10 screw,
washer set and flange nut and do up tight.
4.2 Trim excess plastic inner guard molding to
meet lower profile of bull bar wing. Note
the position of water bottle on LHS of
vehicle and trim neatly around it.
4.3 Fit washer bottle protection frame to
lower mounts where original bumper
stabiliser arms were located using 2 x
M10 x 30 bolt and washer sets. Fit off
the upper bracket to inner wing area of
bull bar as shown using M8 x 25 bolts
and washer sets.
NOTE: The 2 x M8 cage nuts should be in
place from step 2.7.
4.4 Fit inner guard plates to ends of bull bar
wings and fasten with M6 black screws
and washers.
