13/12/05 Page 6 of 12 3783101

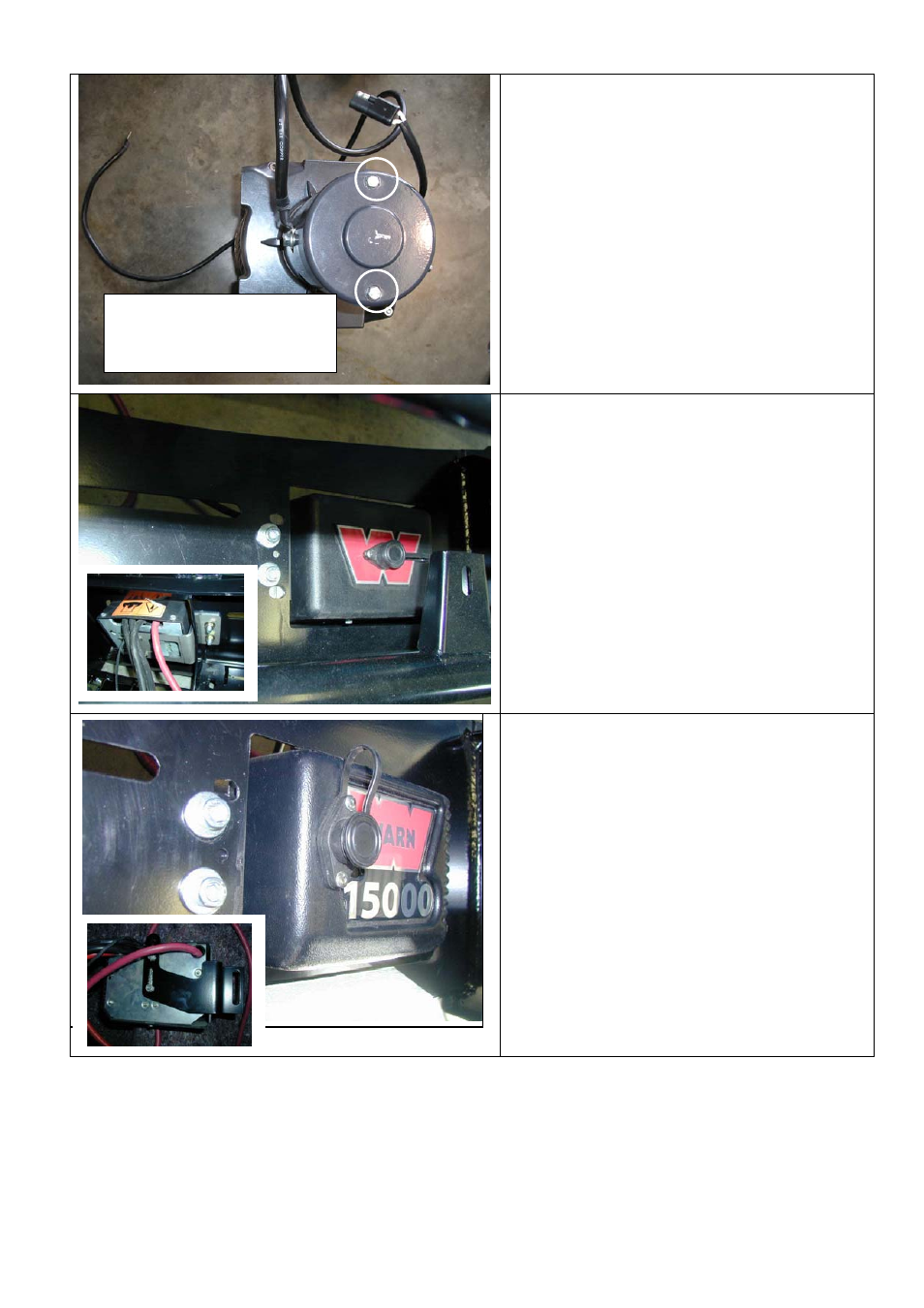

Rotate motor end 180°.
Undo the 2 x bolts securing the motor in
position, withdraw bolts and rotate motor
180°, so terminals will now face away from
vehicle when mounted. Tighten up
retaining bolts.
7. Fit control box to pan:
• For 10000-12000lb winches, use universal
control box bracket supplied, attaching to
rear of control box mount studs.
• Slide bracket flange under pan and align
with mount slots.
• Fasten in position with 2 x M10 cap
screws, black washers and flange nuts.
• For 15000lb winches, use Warn supplied
control box bracket, attaching to rear of
control box mount studs.
• Slide bracket flange under pan and align
with mount slots.
• Fasten in position with 2 x M10 cap
screws, black washers and flange nuts.
Factory motor position
shown, motor must be
rotated 180°
