3 Installing the Air Locker
25
3.14 Reinstalling the Differential Assembly
c Reassemble the differential assembly according to your vehicle
manufacturer’s service manual using gasket sealant where
necessary.
NOTE : Be careful not to damage the sintered bushing in the
end of the Air Locker when installing axle stubs. The
fit should be snug, and light tapping may be required
to fully insert the stub into the spline. In some cases,
a small chamfer may need to be ground onto the axle
stubs as a lead-in for insertion into the bushings.
HINT : Drilling an access hole in the right hand differential
support bracket (See Fig. 17.) allows the bolts on the
inner stub axle flanged joint to be inserted after the
differential assembly is already in position under the
vehicle. This makes reinstalling much easier.

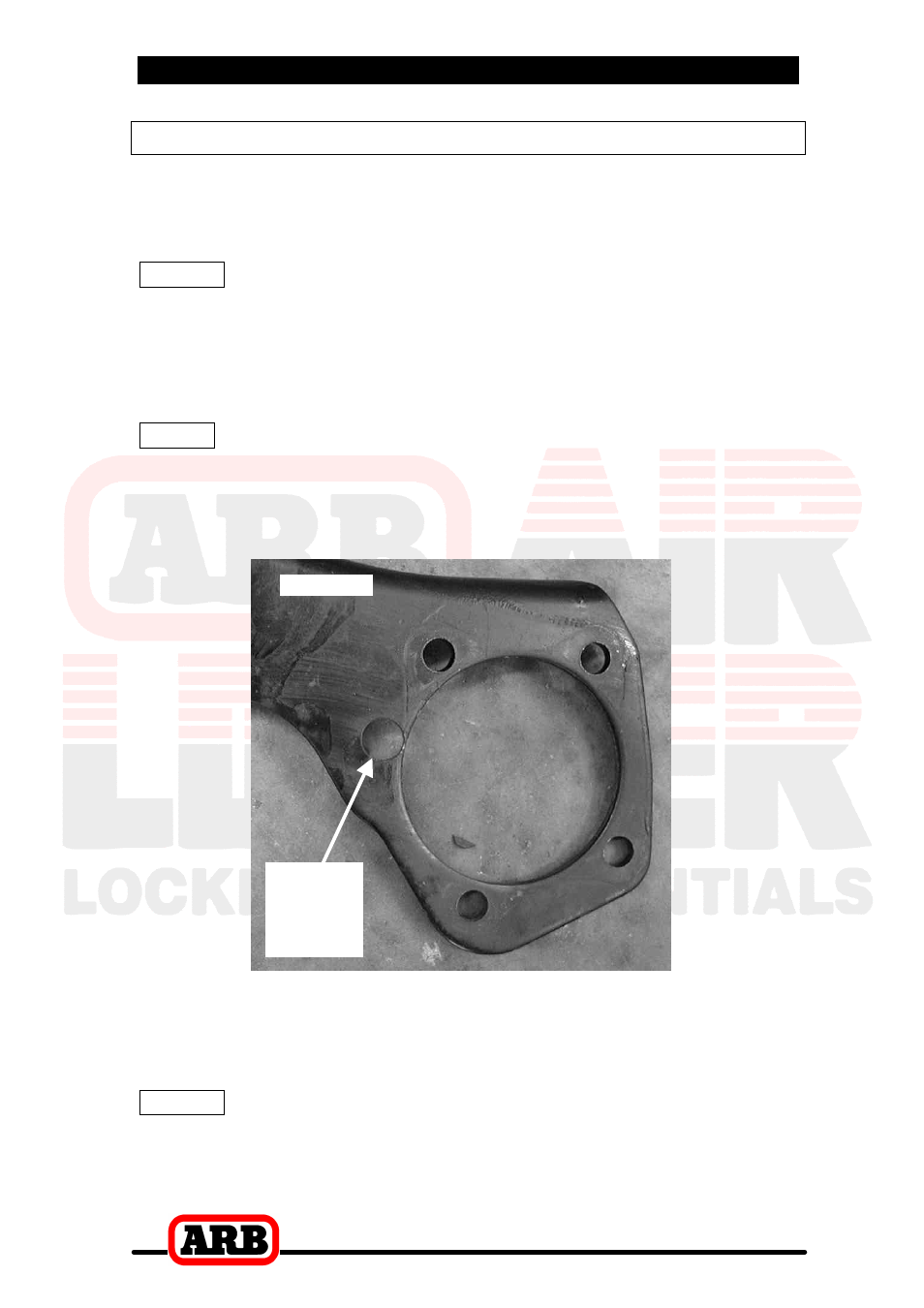

Figure 17.
c Install the differential assembly into the vehicle.
c When inserting the CV axle into the differential housing a gentle tap
will be required to seat the retaining clip.
NOTE : Be careful not to damage oil seals with the axles.
c Reconnect the drive shaft flange.
Approx.
Ø18mm
[Ø11/16”]
hole
