Page 29

5 Installing the Air System

5.1

Mounting the Solenoid

5.1.1

Connection to an ARB Air Compressor

(Fig.15.)

c Remove one of the 1/8” BSP plugs from its port in the compressor

tank.

c Apply Teflon paste to the nipple (1/8” X 1/8” BSP) and insert it into

the port and tighten.

c Apply Teflon paste to the free end of the nipple.
c Assemble the inlet port side of the solenoid (stamped with a ‘1’)

onto the nipple and tighten. The solenoid should be rotated into a
position that does not obstruct any other ports on the compressor
tank.

NOTE : The solenoid exhausts compressed air through the

center of the black retaining cap when the

Air Locker

is disengaged. Make sure this orifice cannot be
obstructed.

c Apply Teflon paste to the threads of the 5mm push-in fitting and

assemble it into the solenoid outlet port (stamped “2”) and tighten.

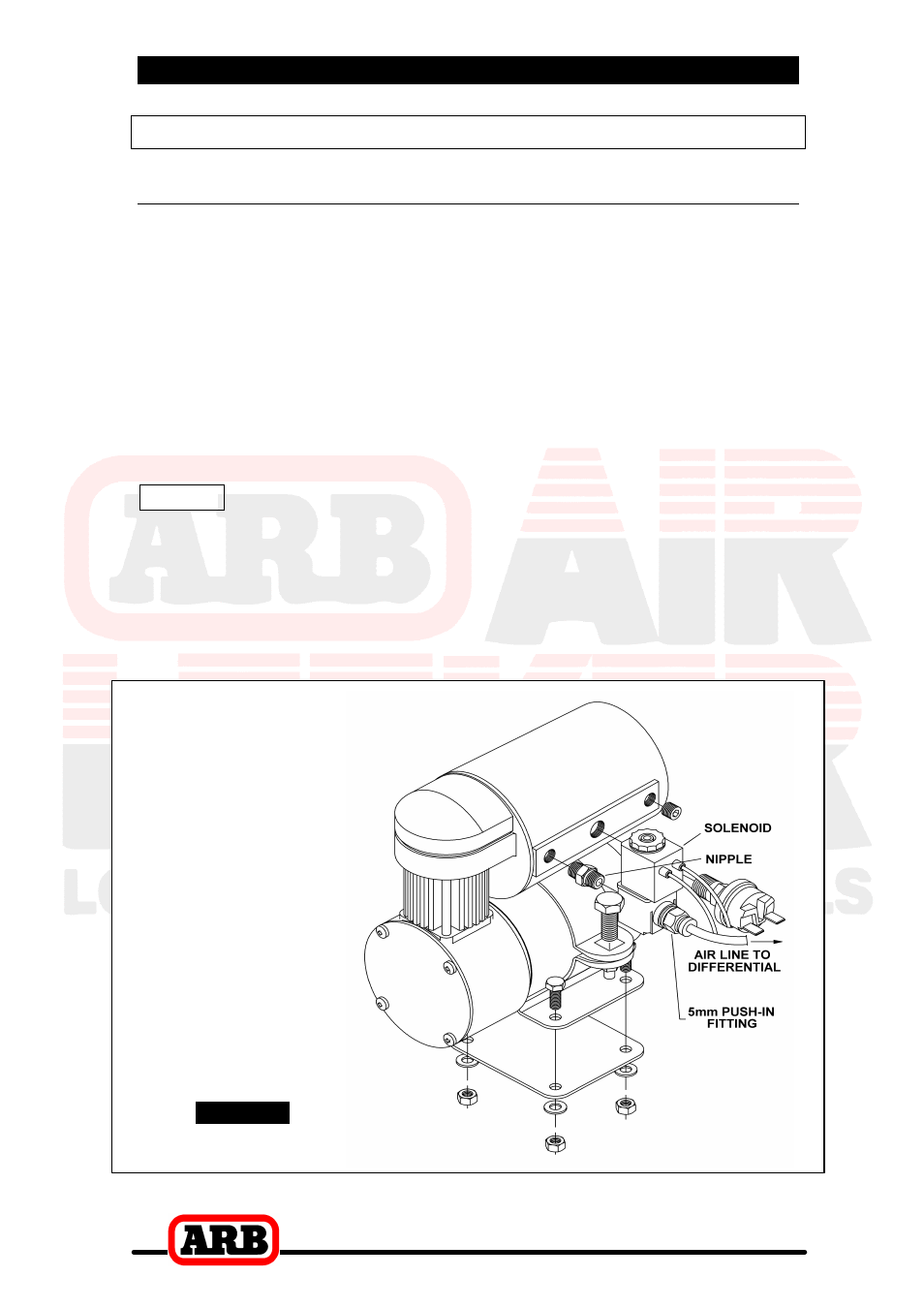

Figure 15.

ARB

Air Compressor
