4 Installing the Air Locker
15
4.4 Assembling the Differential Carrier
c Assemble the supplied bearing cup (now installed into the seal
housing) onto the seal housing side bearing cone.
NOTE : The grooves in the seal housing will house the O-
rings in the final assembly but they will not be
installed now to avoid damage to the O-rings.
c Install the supplied master shim onto the seal housing.
NOTE : The shim pack cannot be installed at this time as the
required thickness (shown as ‘E’ in Figure 7.) has yet
to be determined.

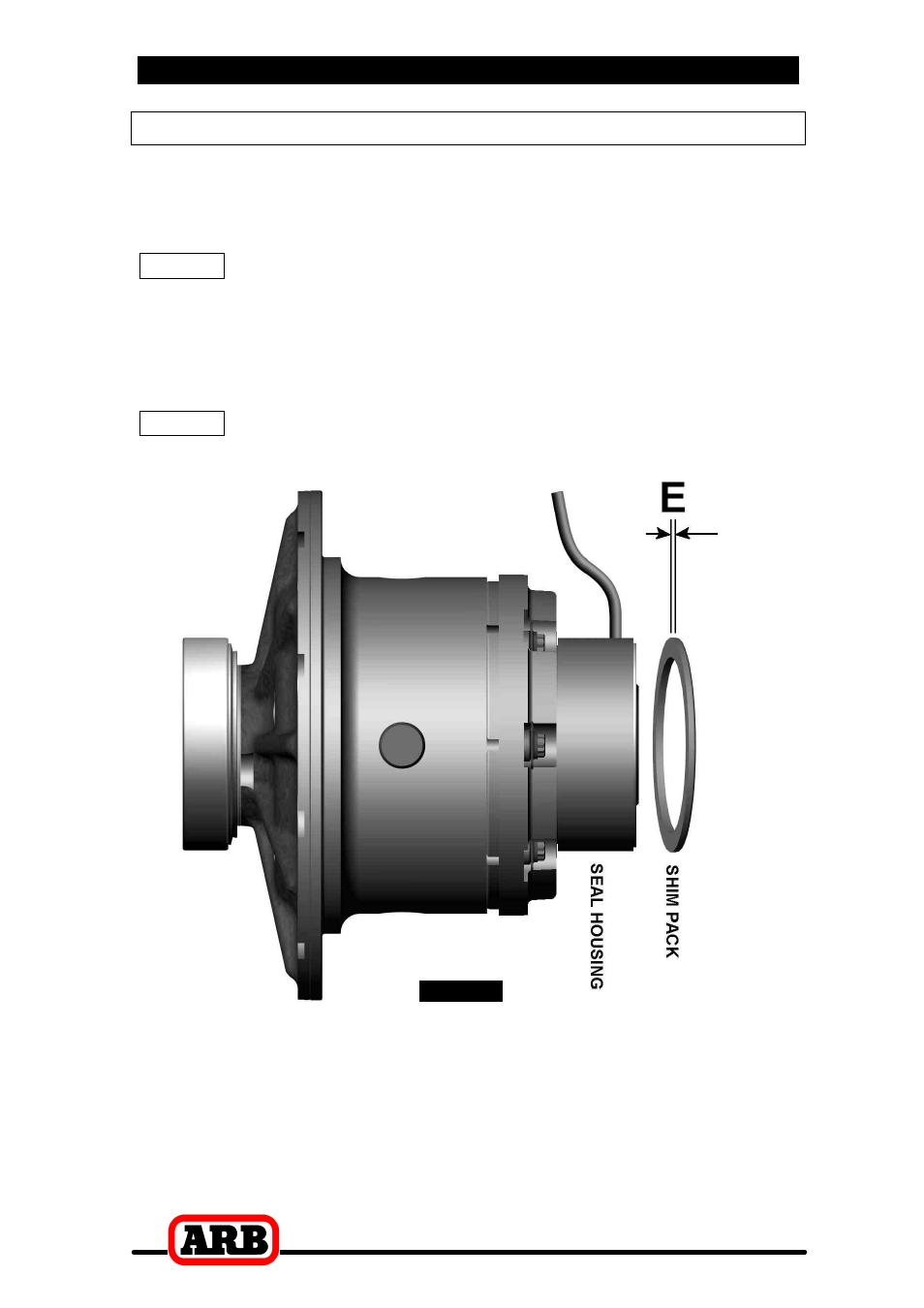

Figure 7.
c Holding the master shim and seal housing onto one end and the
bearing cup in place at the other end, insert and hold the Air Locker
into the differential housing with the seal housing tube pointing
straight out of the housing.
