4.4 Assembling the Differential Carrier
c Place the bearing cup over the bearing cone on the seal housing
side (Fig 9.)

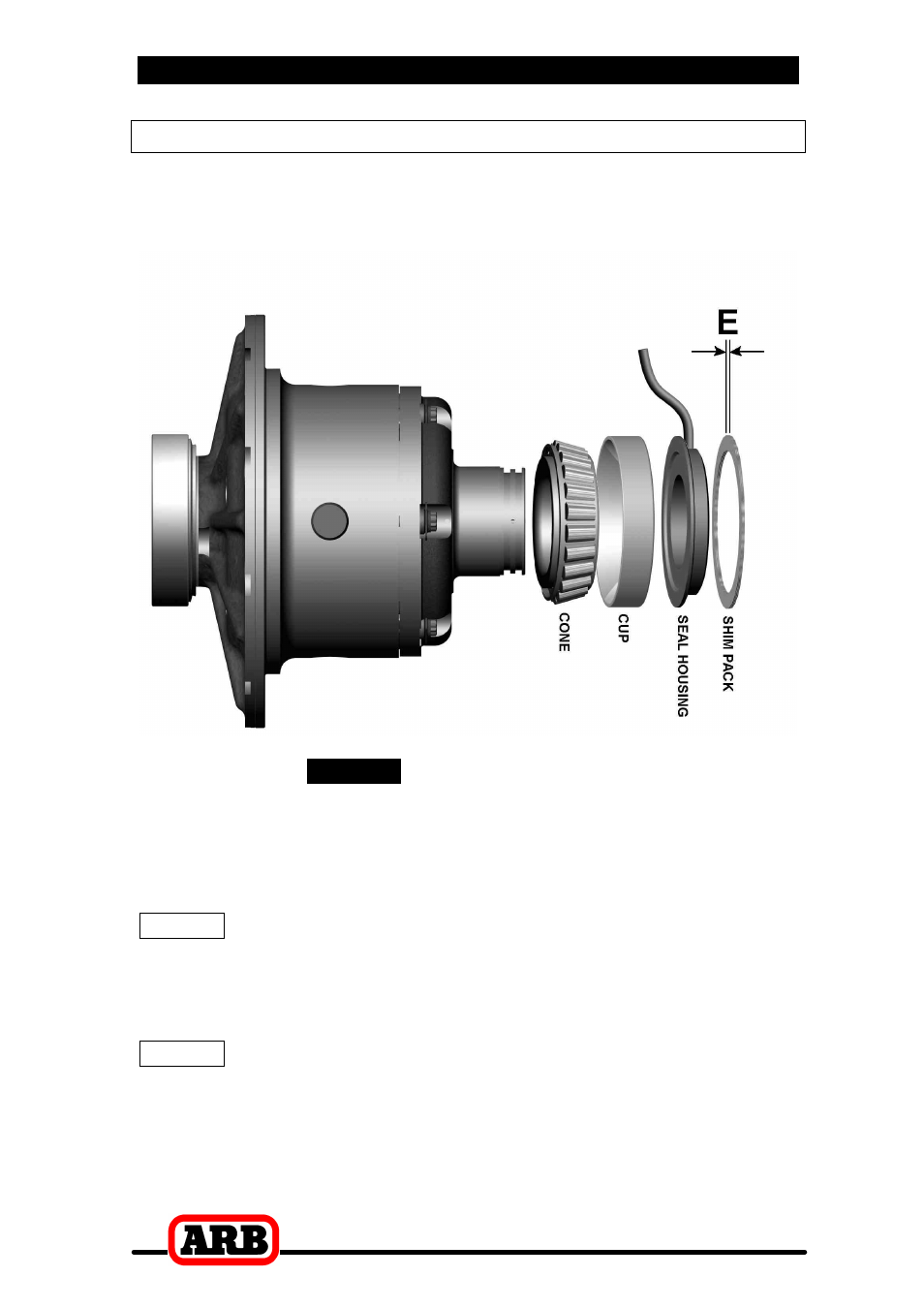

Figure 9.
c Slide the seal housing into place against the bearing cup (stepped
side out).
NOTE : The grooves in the bearing journal under the seal
housing, will house the O-rings in the final assembly
but they will not be installed now to avoid damage to
the O-rings.
NOTE : The shim pack cannot be installed at this time as the
required thickness (shown as ‘E’ in Figure 9.) has yet
to be determined.
c Hold the bearing cup in place on the ring gear side.
