3 Bench Measurement
9
c Measure the thickness of the shim pack removed from the ring gear
side of the differential carrier (shown as ‘B’ in Figure 4.).and record
this measurement as ‘B’.
c Measure the distance from the Air Locker bearing shoulder to the
ring gear mounting face (shown as ‘C’ in Figure 5.) and record this
measurement as ‘C’.

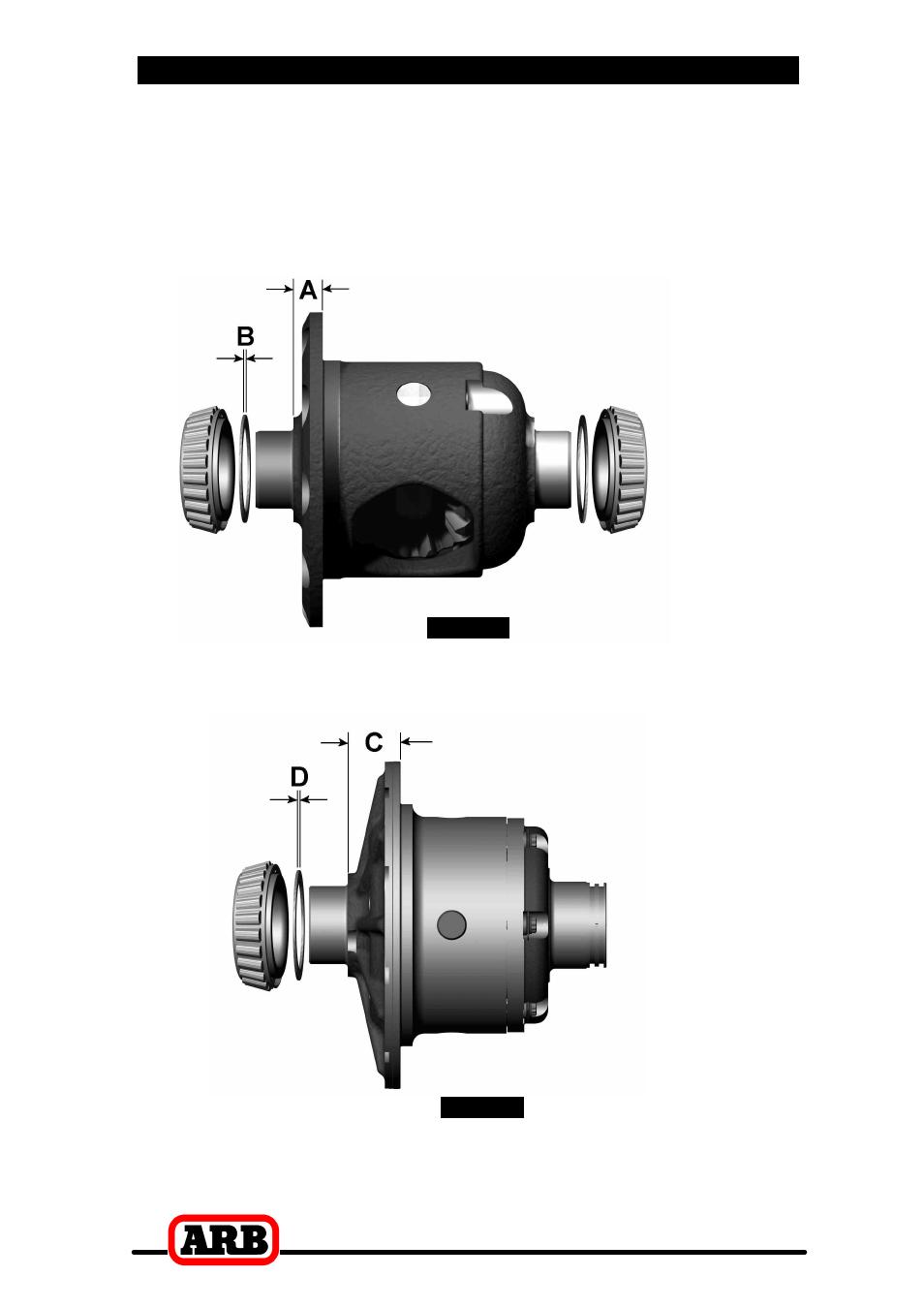

Figure 4.
Figure 5.
