3 Installing the Air Locker
14
3.6 Final Air Locker Assembly
c If necessary reinstall the pinion shaft assembly and using a torque
wrench tighten to the torque specified in your vehicle service
manual.
c Reinstall the Air Locker into the axle housing.
c Install the bearing caps oriented as they were marked before they
were removed.
c Rotate the seal housing so the slot and the tube are pointing
straight out of the axle opening. Then install the supplied washers
and seal housing bracket with the tab locating in the slot as shown
in Figure
7.
NOTE : Spring washers are to be left off the seal housing side
bearing cap bolts.

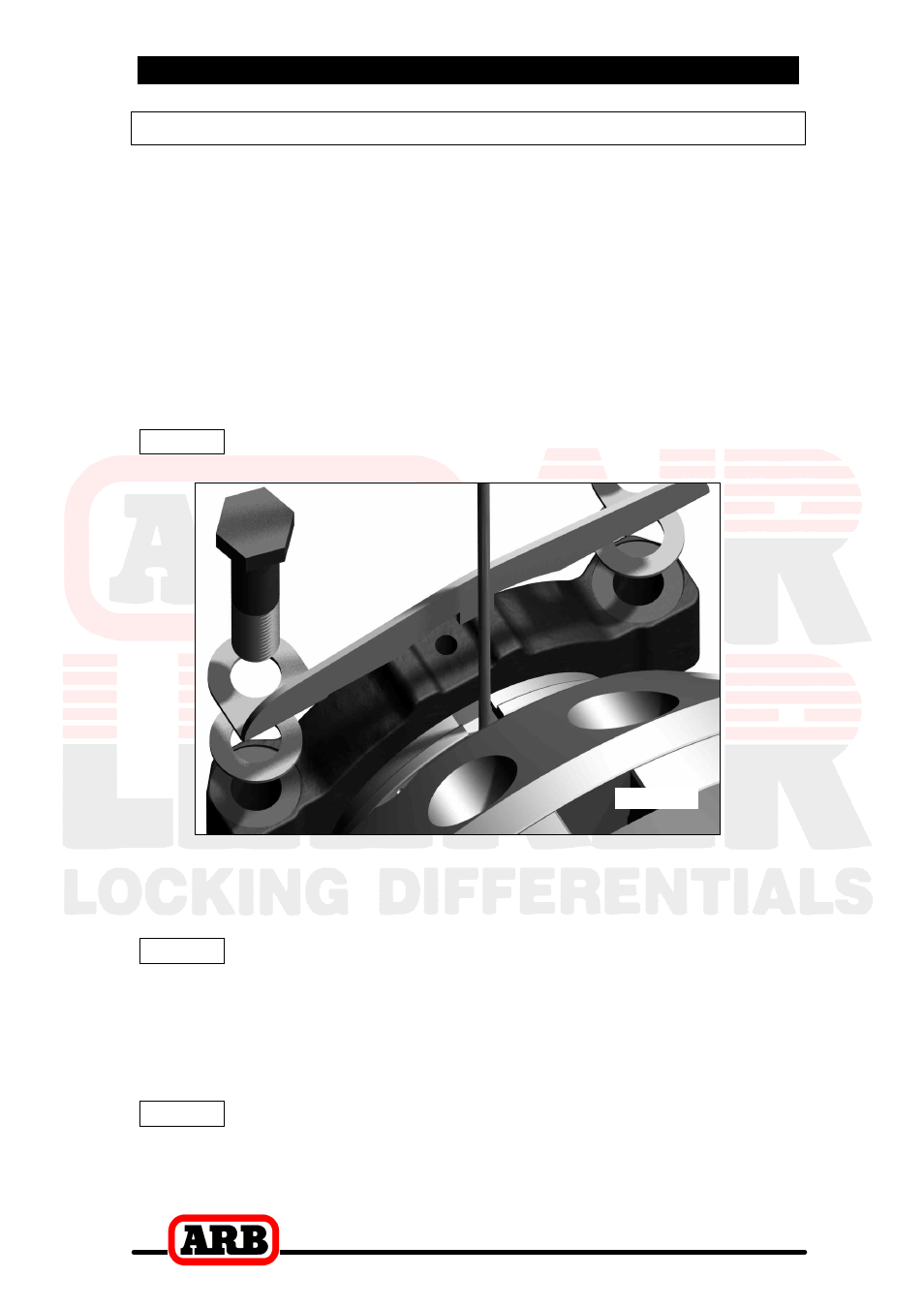

Figure 7.
c Insert the bearing cap bolts and finger tighten. It is not necessary to
torque them down at this time.
c Lightly hand tighten the seal housing side adjuster nut.
NOTE : You should feel no backlash between the ring and
pinion gears once the adjuster nut tightens.
c Reverse the adjuster nut (counterclockwise) ¼ turn.
c Using the appropriate adjuster nut wrench, hand tighten the
opposite adjuster nut.
NOTE : You should now feel some backlash between the
ring and pinion gears. If not, there might be a
clearance problem which is binding the carrier.
Re-check the clearance.
