BUSH HOG/ LAND MAINTENANCE REPAIR PARTS MANUAL
83-1-4
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50025326 1 Input Shaft 1-3/8” Z6
2 70279 1 Oil Cap
3 71453 3 Ball Bearing 3207
4 70329 2 Shim 35.3 x 48 x 0.3
70330 2 Shim 35.3 x 48 x 0.4
70331 2 Shim 35.3 x 48 x 0.5
70332 2 Shim 35.3 x 48 x 1.3
5 70226 1 Parallel Key 10 x 8 x 30
6 50025327 1 Crown Gear Z30
7 70292 2 3/8” GAS Solid Plug
8 50044136 1 Snap Ring 62 x 65 x 3
9 70628 1 Shim 55.3 x 61.7 x 0.3
70629 1 Shim 55.3 x 61.7 x 0.4
70630 1 Shim 55.3 x 61.7 x 0.5
70631 1 Shim 55.3 x 61.7 x 1.0
10 70618 4 Bolt M10 x 20
11 50044137 1 Cover
12 70129 1 Ball Bearing 6007
13 50025330 1 Output Pinion Z12
14 50025328 1 Spacer 64 x 70 x 59.7
15 70134 1 Double Lip Seal
16 70600 1 Snap Ring SB 72
17 50025329 1 Castle Nut M24
18 70695 1 Flatwasher 25 x 44 x 4
19 70110 1 Snap Ring 33 x 35 x 1.5
20 70133 2 Snap Ring 72 x 75 x 2.5
21 50044138 1 Casing
22 70639 1 Shim 60.3 x 71.7 x 0.3
70640 1 Shim 60.3 x 71.7 x 0.4
70641 1 Shim 60.3 x 71.7 x 0.5
70642 1 Shim 60.3 x 71.7 x 1.0
23 50044139 1 Oil Seal
24 50044140 1 Spacer 35.1 x 51 x 5.5
25 70699 1 Cotter Pin B5 x 50
*26 *81572 1 Vent Plug

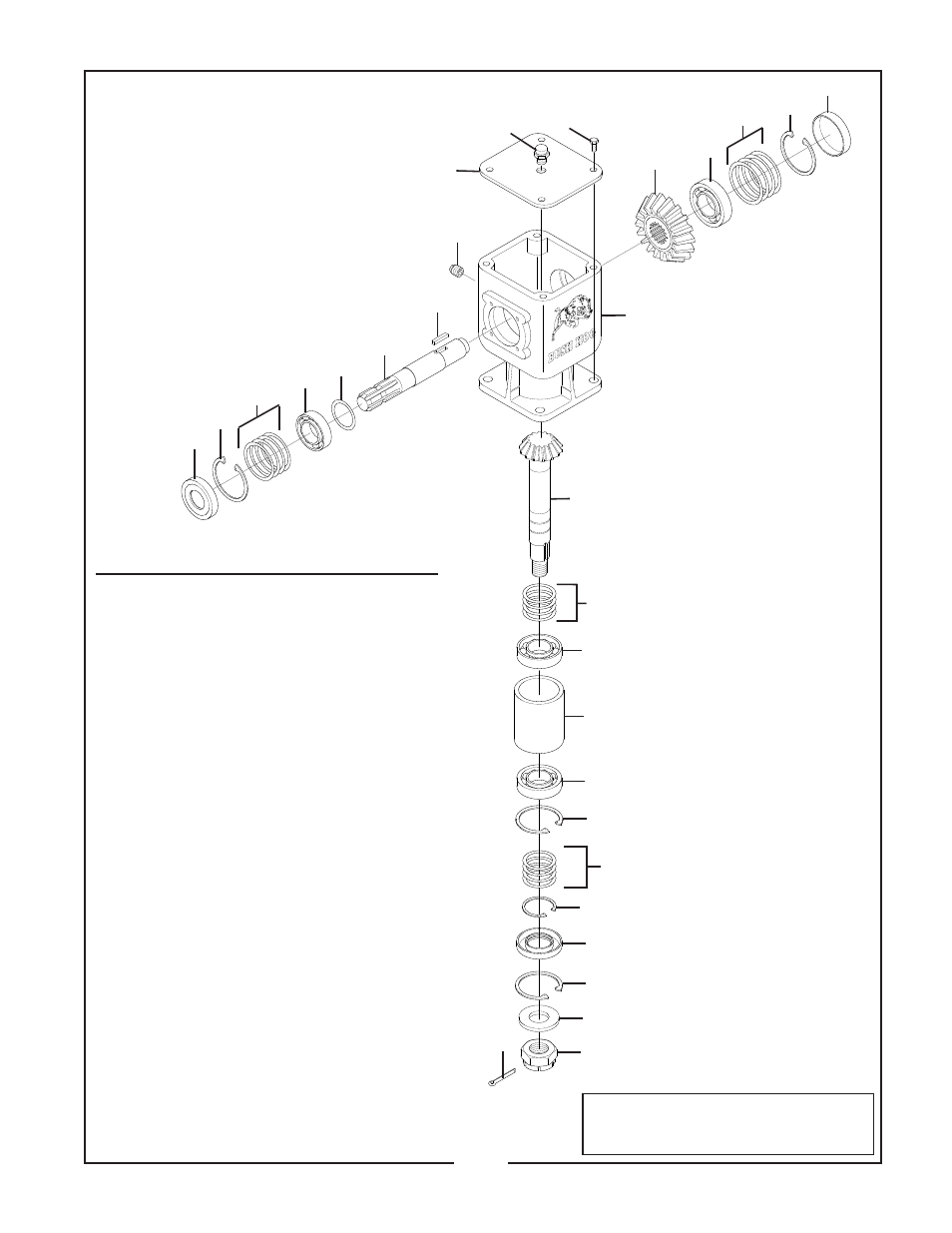

50044135 GEARBOX ASSY.
540 RPM, Ratio 1 : 2.5
Mfd. by Comer
Used On: RFM 60 Rear Finishing Mower
23
8
9
12
1
24
7
5
21
13
4
3
14
6
3
22
20
2
*26
11
10
3
15
16
18
17
19
20
4
25
November, 2009
*Ref. No. 26 - 81572 is not part of the gearbox
assembly and must be orderd seperately.
