BUSH HOG/ LAND MAINTENANCE REPAIR PARTS MANUAL
83-1-2
REF. PART
NO. NO.
QTY. DESCRIPTION
1 82324 3 Blade, CW Uplift
2 44508 3 Capscrew 1/2” x 1-1/2” Gr. 8 NF
3 44040 3 Saftey Washer, Heavy Duty
4 97658 A/R Spacer -.1345” Thick
5 50048640 3 Spindle Assy.
6 5161614 9 Carriage Bolt 1/2” x 1-1/2” Gr.5
7 ---------- 9 Lockwasher 1/2”
8 ---------- 9 Hex Nut 1/2”
9 50045587 3 Pulley, 5” EOD
10 88753 3 Woodruff Key #606
11 20414 5 Locknut 5/8”, Flanged
12 70699 1 Cotter Pin B5 x 50
13 50025329 1 Castle Nut M24 x 2
14 70695 1 Flat Washer M 25 x 44 x 4
REF. PART
NO. NO.
QTY. DESCRIPTION
15 ---------- 2 Capscrew5/8” x 3” Gr.5
16 50025107 1 Sheave, 12”
17 19455 1 Square Key .25” x.25” x.875”
18 50053331 1 Belt 136.9”
19 50051435 1 Bushing
20 88663 1 Pulley, Idler
21 -------- 1 Hex Nut 5/16”
22 50051288 1 Tension Rod
23 50008038 1 Tension Spring
24 88691 1 Bushing, Flanged-Bronze
25 50051433 1 Idler Arm Weldment
26 50005860 1 Pin
27 15908 1 Flatwasher 1”
2
3
4
1
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
15

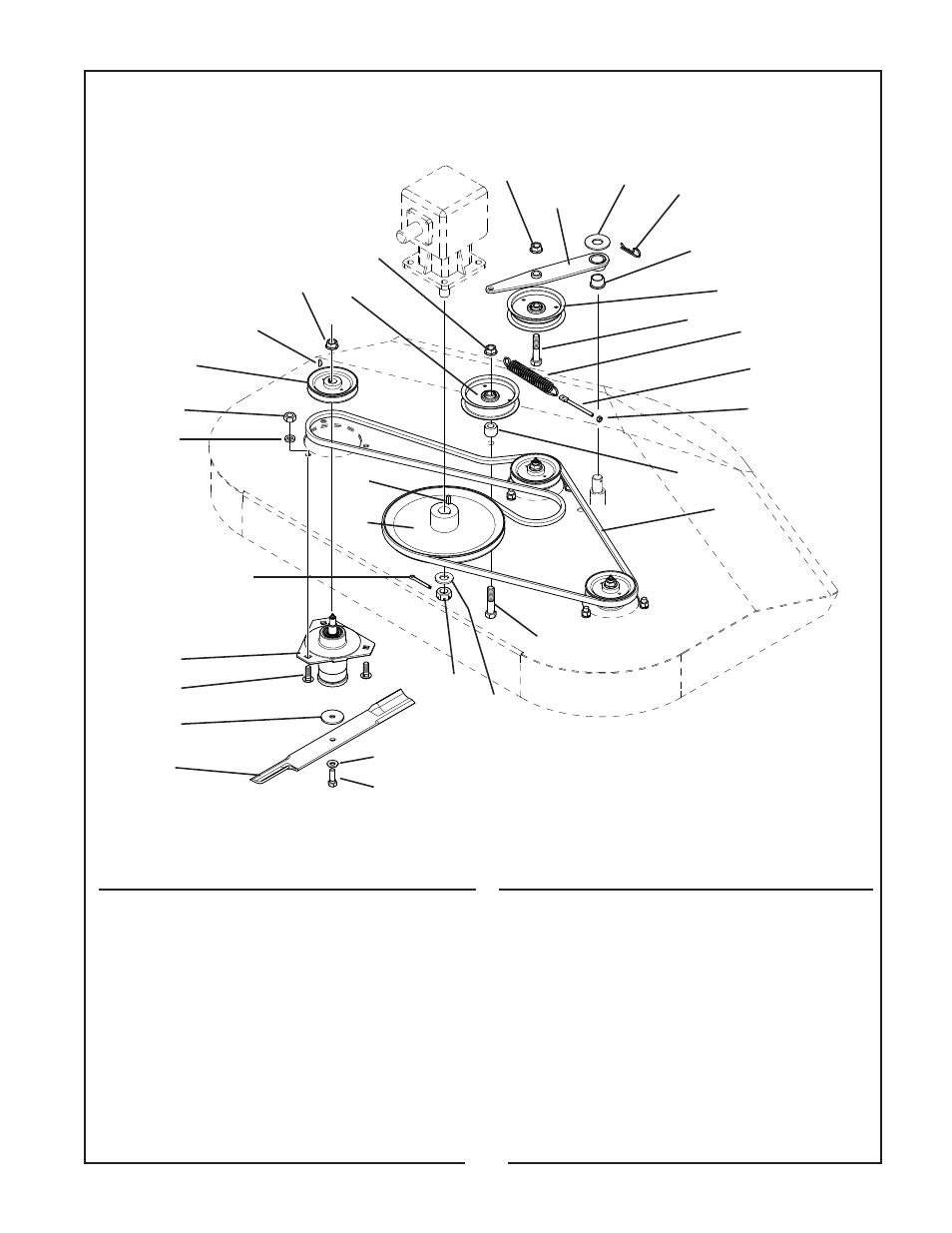

BELT, PULLEYS, BLADES & SPINDLES
Used On: RFM 60 Rear Finishing Mower
November, 2009
