BUSH HOG/ LAND MAINTENANCE REPAIR PARTS MANUAL
83-1-9

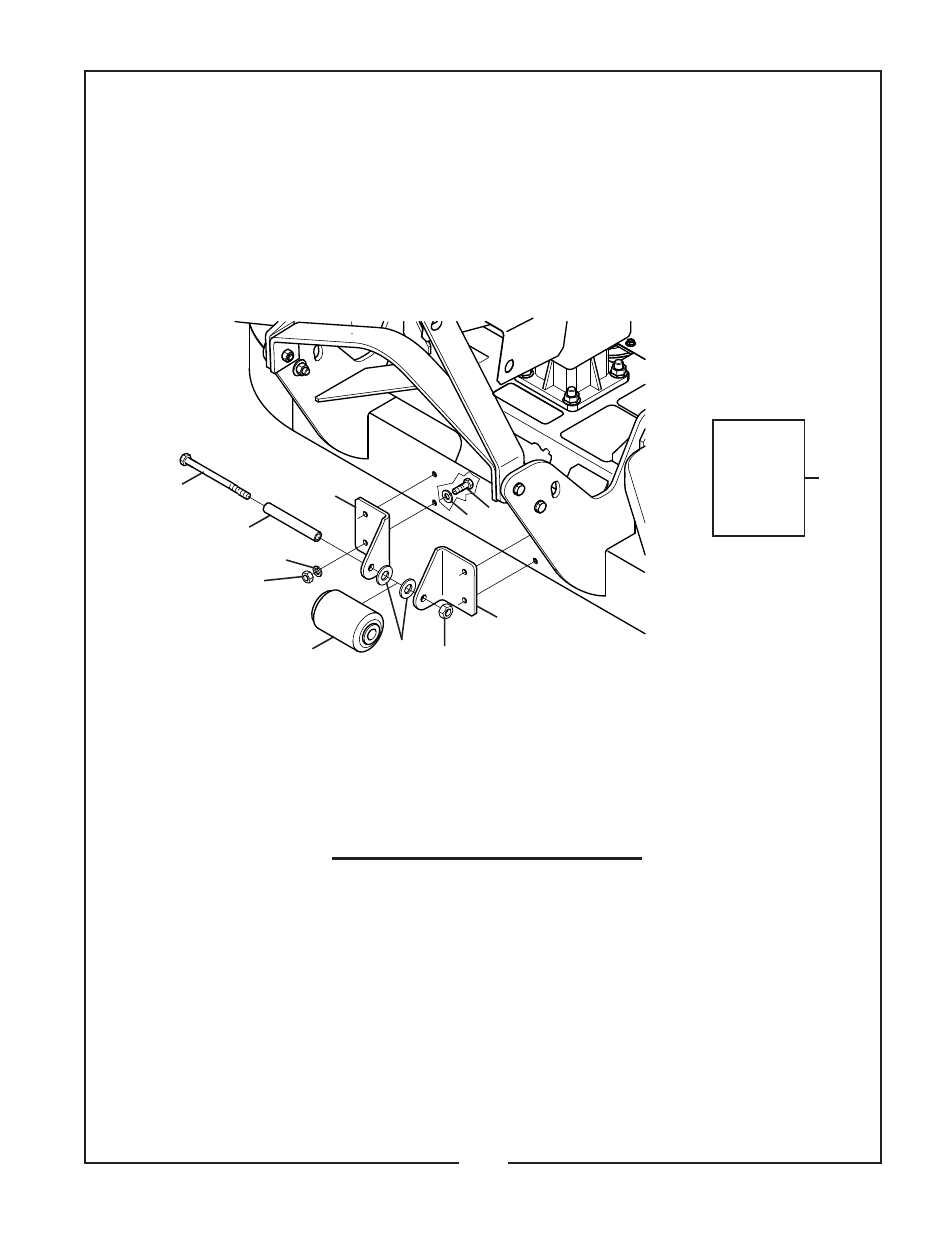

50059787 FRONT ROLLER
Model: RFM60 Rear Finishing Mower
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50059784 1 Roller Mount, Right
2 50059785 1 Roller Mount, Left
3 79057 1 Roller
4 50021170 1 Sleeve
5 –––– 4 Capscrew 3/8” x 1-1/4”
6 20580 1 Capscrew 1/2” x 6-1/2”
7 –––– 4 Hex Nut 3/8”
8 15554 1 Locknut 1/2”
9 –––– 4 Flatwasher 3/8”
10 –––– 2 Flatwasher 3/4”
11 –––– 4 Lockwasher 3/8”
12 50059786 1 Instruction Sheet
6
4
11
7
3 10
8
12
2
1
9 5
Bush Hog
Assembly
Instructions
November, 2009
