ART
A
SSEMBLY
9
11
10

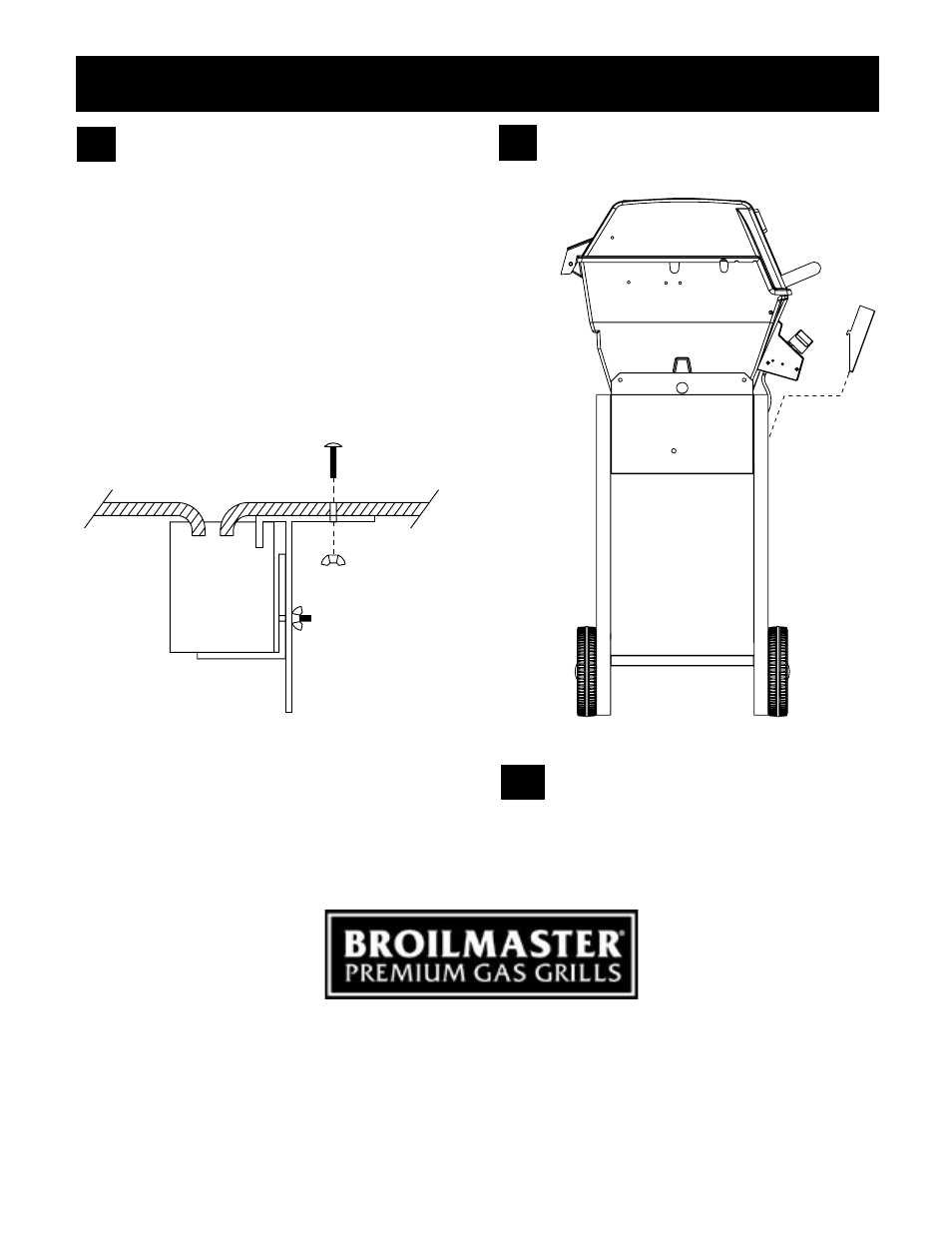

Attach the grease retainer assembly and grease retainer
top assembly to the bottom of the grill head and fasten
with one (1)10-24 x 3/4 Phillips bolt and one (1)10-24
wing nut provided with grill head for use with stabilizing
arm and burner stabilizing arm.
Loosen the wing nut and move the slide up or down to
accept the grease cup. Be sure to trap the rim of the cup
as shown. Figure 11
Use only noncombustible containers for the grease cup
(aluminum or tin cans) do not use combustible containers
such as Styrofoam or paper cups.
Insert manifold cover plate into front panel. Figure 12
F
IGURE
12
F
IGURE
11
Assembly of garden cart is completed.
