Broilmaster B100613-3-1203 - Manual (Page 7)

B100613-3-1203 Page 7
C
ART
A
SSEMBLY
5 67
8

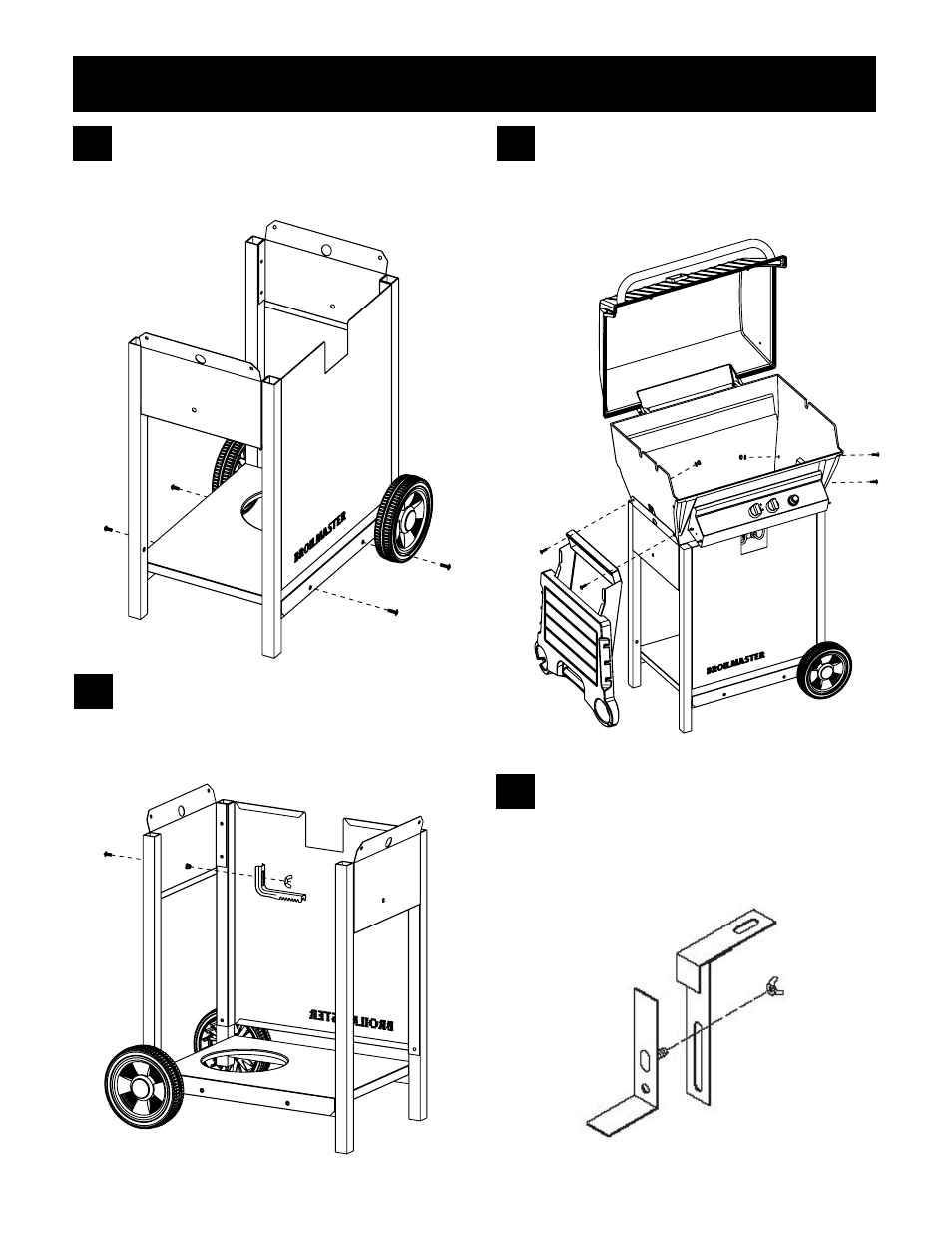

Attach base shelf to each frame assembly with two (2)
1/4-20 x 3/4 Phillips screws. Figure 7
F
IGURE
9
6
Attach cylinder retainer to head bracket which is adjacent
to wheels with one (1) 1/4-20 wing nut and (1) 1/4-20 x
3/4 Phillips screw. Figure 8
F
IGURE
8
Place grill head onto garden cart. Attach side shelf and
grill head to the two frame assemblies with four (4) 1/4-20
x 3/4 Phillips screws, 1/4 x 5/8 lock washers and 1/4-20
hex nuts. Figure 9
F
IGURE
10
F
IGURE
7
Attach the grease retainer assembly to the grease re-
tainer top assembly with a 10-24 wing nut.
