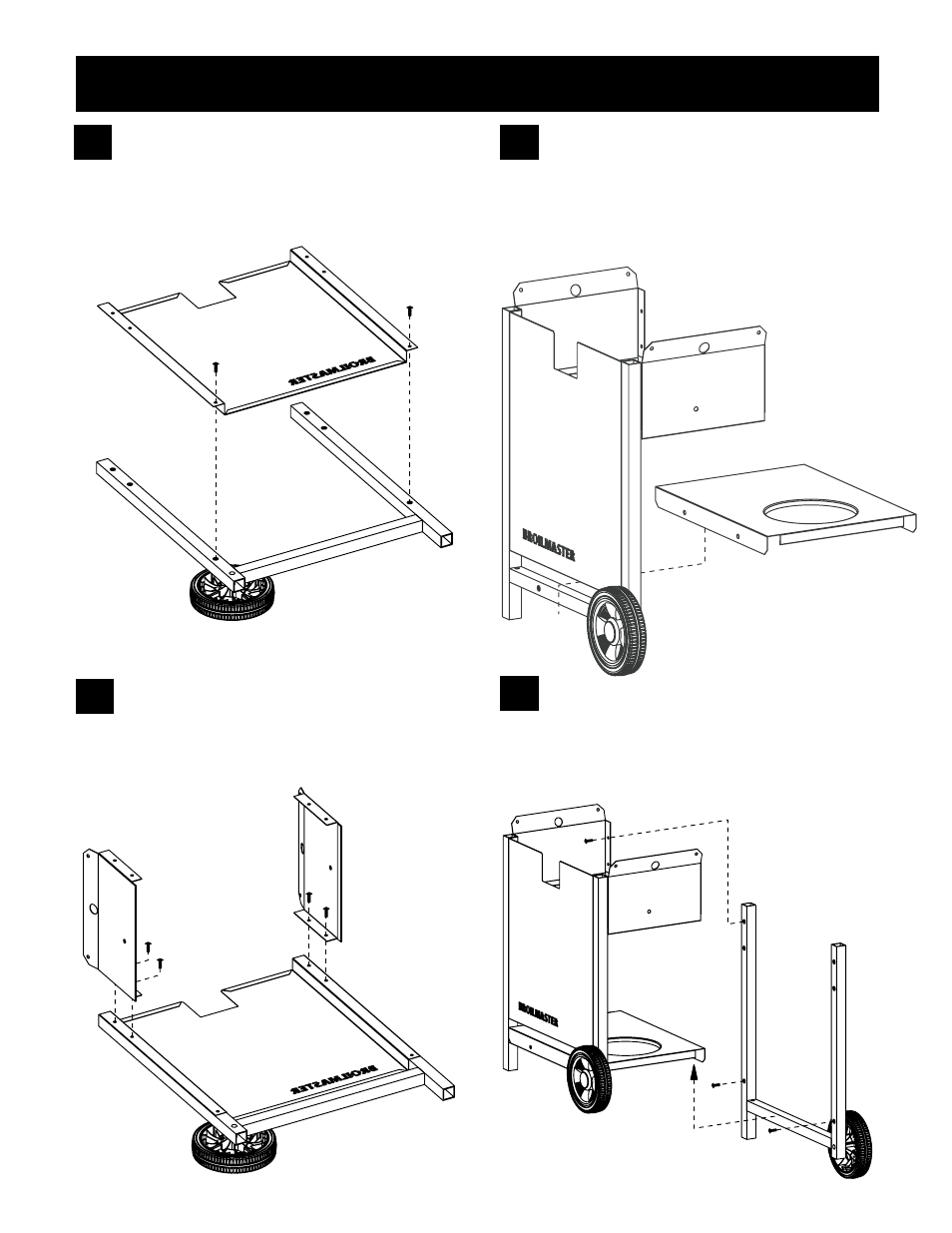

Lay one frame assembly on a non-abrasive surface.
Place front panel onto frame assembly. Attach bottom
of front panel to bottom of frame assembly with two (2)
1/4-20 x 3/4 Phillips screws. Figure 3
F
IGURE
3
Place two (2) head brackets onto frame assembly. Attach
each head bracket to frame assembly with two (2) 1/4-20
x 3/4 Phillips screws. Figure 4
F
IGURE
4
3
Place base shelf onto frame assembly. Install the large
hole in base shelf for LP cylinder on wheel end of cart.
DO NOT attempt to attach base shelf to frame assembly
at this time. Figure 5
F
IGURE
5
4
Attach each head bracket to second frame assembly with
two (2) 1/4-20 x 3/4 Phillips screws. Attention: Insert two
(2) 1/4-20 x 3/4 Phillips screws into bottom of second
frame assembly to prevent the entry of rain. Figure 6
F
IGURE
6
