3.1 ASSEMBLY GUIDE
9

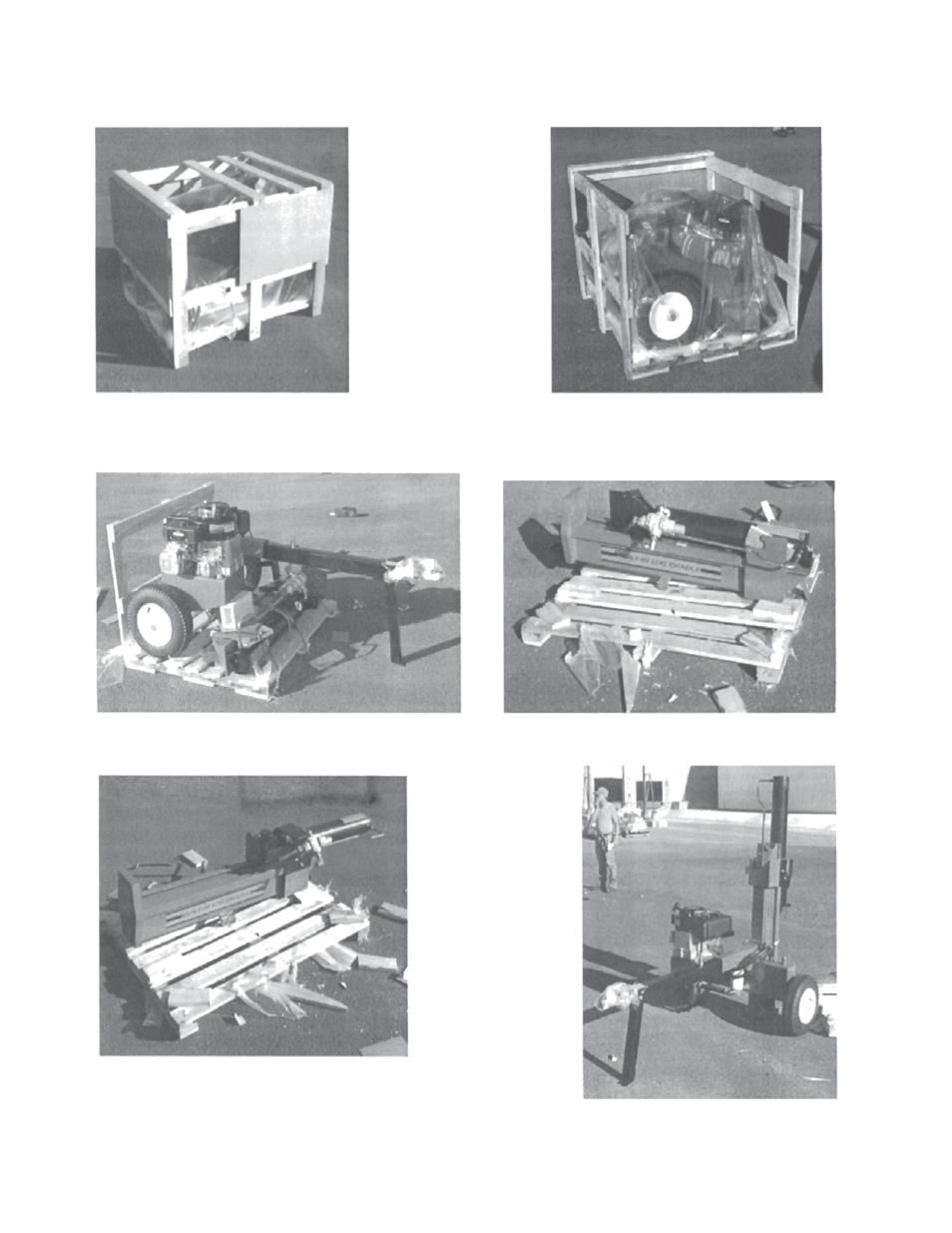

LOG SPLITTER ASSEMBLY GUIDE
Compact Log Splitter in crate.
Crate with top and end piece
removed (see Step 1, pg. 8).
Crate with side board in place to provide
support. (see steps 1 - 4, pg. 8). Wood block
under tank to keep it upright.
Beam rotated and centered on bottom of
crate (see steps 5 - 6, pg. 8).
Cylinder pushed all the way back
and stripper plate attached (see
steps 6 - 7, pg. 8).
Beam attached to tank/tongue
assembly (see step 8, pg. 8).
