3
U
SING THE
PIP (P
ICTURE
-I
N
-P
ICTURE
) F
EATURE
Picture-In-Picture (PIP) is the show-
ing of two pictures on the TV screen
at the same time. (One main screen
picture and one small inset picture -
or PIP). For your ease and conve-
nience this TV has two separate
inputs (ANTenna A and ANTenna B)
for your home’s Antenna and/or
Cable TV system signal.
The ANT A input is primarily for the
TV’ main screen picture. The ANT B
input is provided as a second, dedi-
cated source option for the TV’s PIP
“window” and its feature operations.
The signal connected to the ANT B
input can be either a Split Signal
Input (as described in the section on
this page), or another type of exter-
nal signal source (such as a satellite
dish system, additional home anten-
na, video accessory, etc.).
See the following steps on how chan-
nels connected to the ANT(enna) B
Input can be shown and used within
the PIP window:
Connect your Antenna or Cable
TV signal to the single 75 ohm
INPUT plug on a two-way Signal
Splitter (not supplied).
Connect two lengths of RF Coaxial
Cable (F-type connectors on both
ends) to the two OUTPUT plugs on
the two-way Signal Splitter.
Connect the twin OUTPUT
plugs on the Signal Splitter to the
ANT A and ANT B Inputs on the
rear of the TV.
S MART H ELP
For other possible PIP
connections see pages 41-42
for the “More PIP Connections”
section.
If you need any accessories or parts
to complete the described PIP con-
nections, contact your dealer, or our
Parts Information Center at:
1-800-851-8885
BEGIN

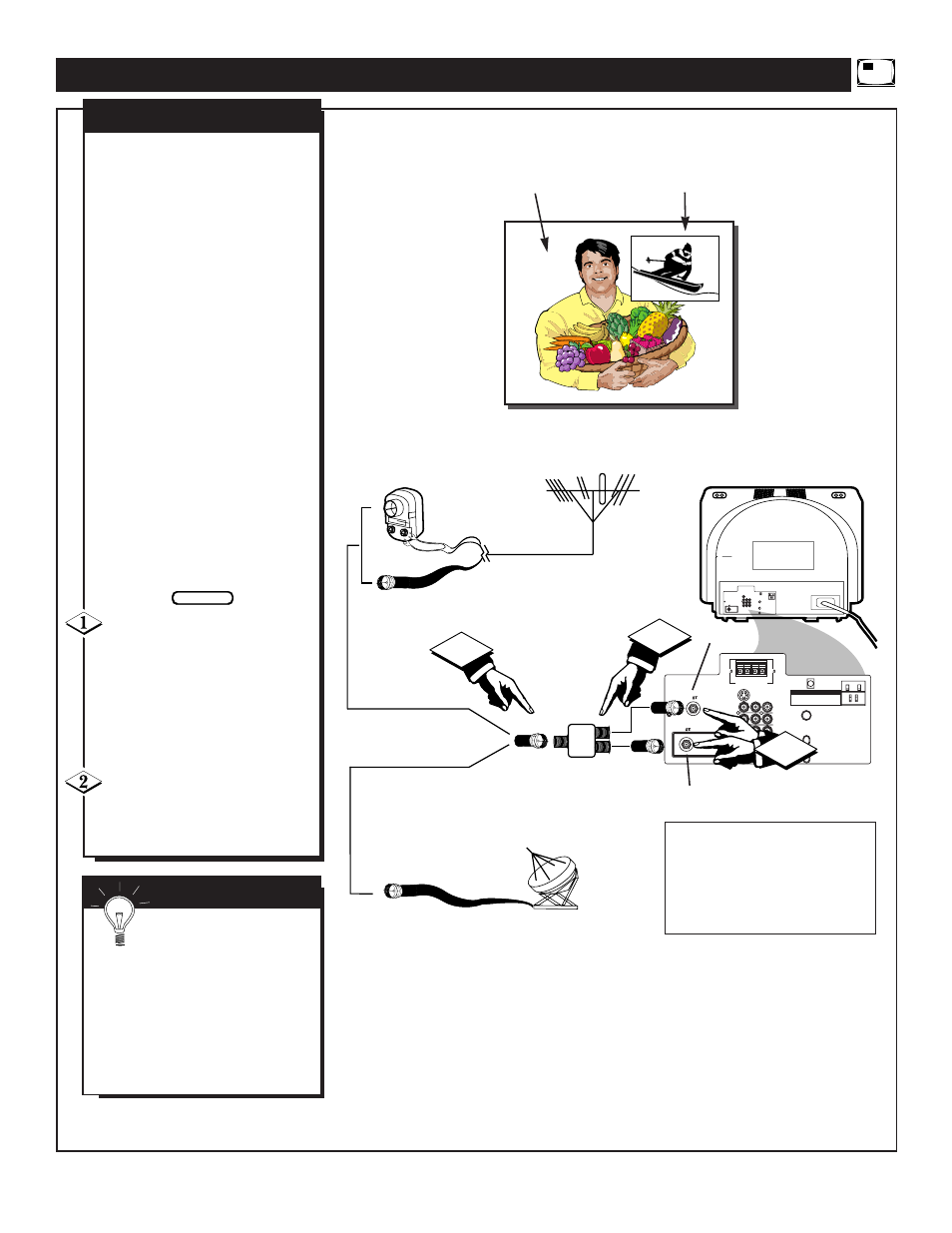

Hooking up PIP
MAIN SCREEN PICTURE PIP INSET PICTURE
BACK OF TV
ANT(enna) “A”
CABLE TV
COMPANY
COMBINATION
VHF/UHF ANTENNA
OUTDOOR OR INDOOR ANTENNA
RECEIVES NORMAL BROADCAST
CHANNELS 2-13 (VHF) AND 14-69
(UHF)
OPTIONAL TWO-WAY SIGNAL
(single 75 ohm Input to twin 75
ohm Outputs - optional RF
Coaxial connecting cables also
required)
CABLE TV SIGNAL
300 TO 75 OHM
ADAPTER
TWIN LEAD WIRE
ROUND CABLE
75 OHM
ANT(enna)
“B”
ROUND CABLE 75 OHM
Note: The purpose of the ANT B input is to
provide an easily connected, dedicated pic-
ture source for PIP feature use. Other signal
source options (such as satellite dish system,
additional external antenna, VCR, or Video
Game) could also be connected and displayed
on the TV’s PIP screen window through the
use of the ANT B input.
