Philips 20PS47S - Manual (Page 9)

M
ONITOR
O
UTPUT
C
ONNECTIONS
6
T he Audio/Video (Monitor) Output jacks
are great for recording with a VCR or
used to connect an external audio system
for better sound reproduction.

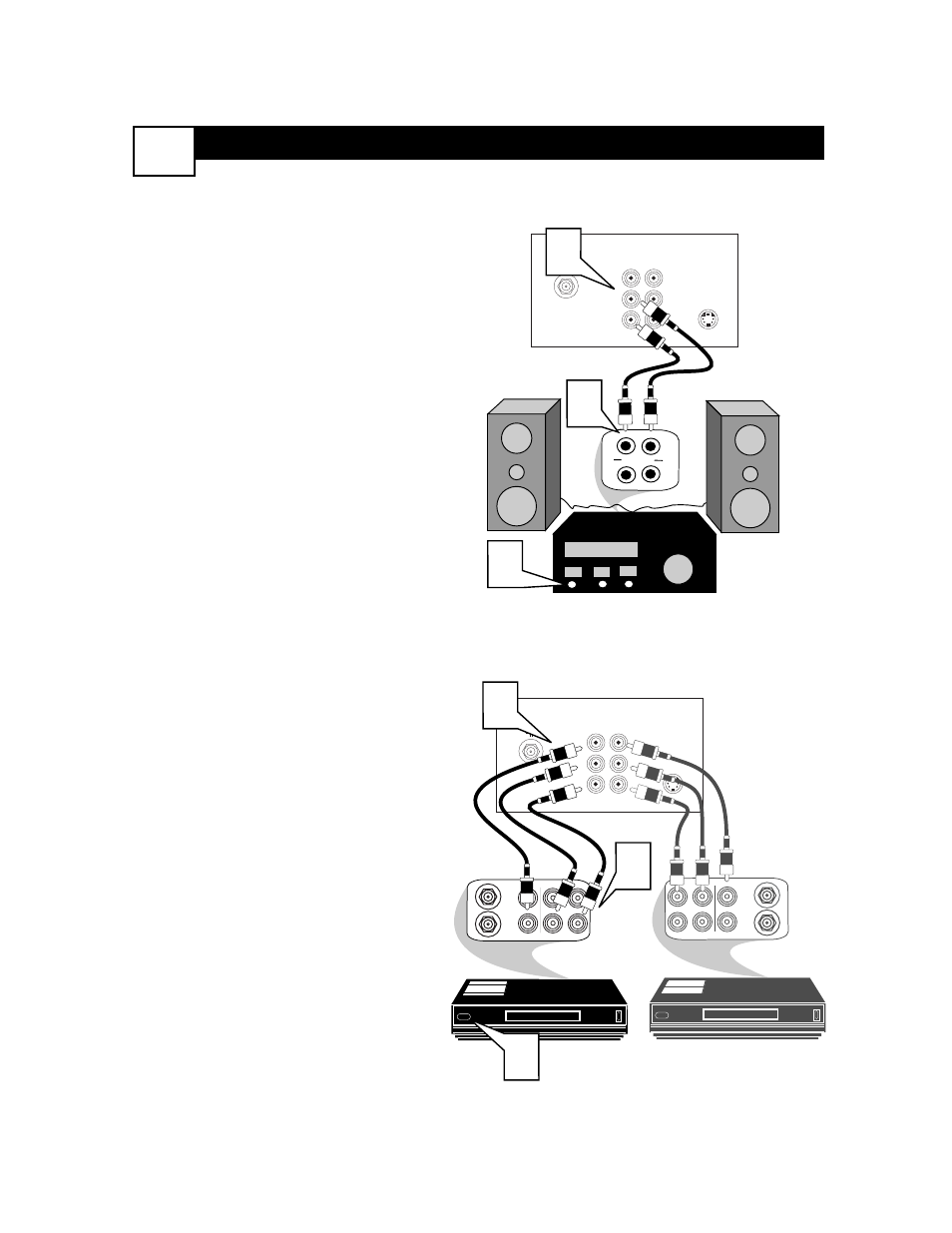

AUDIO SYSTEM CONNECTION:
1 Connect one end of the R(ight) and
L(eft) AUDIO (Monitor Out) jacks
on the TV to the R and L audio input
jacks on your amplifier or sound sys-
tem. Set the audio system’s volume
to a normal listening level.
2 Turn the TV and audio system ON.
You can now adjust the sound level
coming from the audio system with
the VOLUME (+) or (–) button on
the TV or remote control.
SECOND VCR CONNECTION:
NOTE: Refer to panel number 3 for the
proper hookup of the first VCR. Follow
the instructions on how to tune to the AV
1 channel to view a pre-recorded tape.
The following steps allow you to con-
nect a second VCR to record the pro-
gram while your watching it.
3 Connect one end of the yellow
Video Cable to the Monitor Out
VIDEO plug. Connect the other end
to the VIDEO IN plug on the second
VCR.
4 Connect one end of the red and
white Audio cable from the Monitor
Out AUDIO L and R plugs on the
TV to the AUDIO IN plugs on the
VCR.
5 Turn the Second VCR ON, insert
a black VHS tape and it’s ready to
record what’s being viewed on the
TV screen.
75 ⍀
VIDEO
L
AUDIO
R
Monitor
out
AV1
in
S-VIDEO
AUX/TV INPUT
PHONO INPUT
R L
1
2
1
75 ⍀
VIDEO
L
AUDIO
R
Monitor
out
AV1
in
S-VIDEO
ANTENNA
OUT
ANTENNA
IN
VIDEO AUDIO
IN IN
OUT OUT
L R ANTENNA
OUT
ANTENNA
IN
VIDEO AUDIO
IN IN
OUT OUT
R L
3
4
5
Back of TV
Audio Cables
(Red and White)
External Audio System
with Audio Outputs
Back of TV
Audio Cables
1st VCR
(refer to panel 3 for
proper connection)
Video
Cable
2nd VCR with Audio and
Video Input Jacks
AUDIO SYSTEM CONNECTION:
SECOND VCR CONNECTION:
