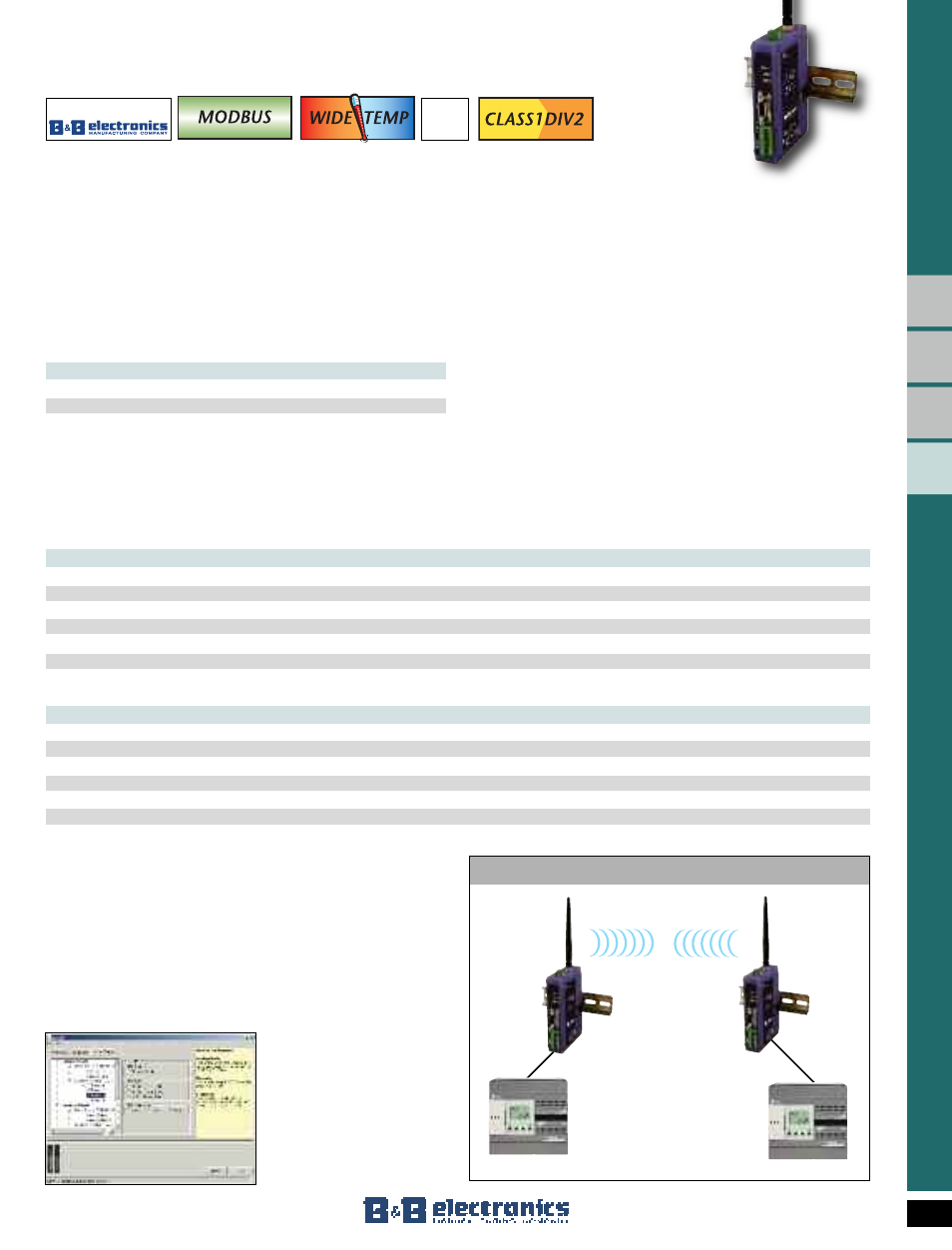

ZP24D Radio Modems
PLC PLC
Industrial Grade Radio Modems
Easy to install and maintain, long ranges
Features
• DIN rail mount - saves panel or cabinet space
• Constant signal strength feedback - during installation
and troubleshooting later
• Rugged circuitry, wide temperature - for indoor and
outside applications
• Handles most industrial control power configurations and
power supplies
• RS-232, 422, 485 serial communications
Specifications
• Modbus compatible - no additional converters needed
• Heavy duty DIN mount industrial grade case and
components
• Frequency: ISM band, 902 to 928 MHz or 2.400 to 2.4385 GHz
• Modulation: FSK- Frequency Shift Keying
• Signal strength indicator aids trouble shooting
• 3dBi for 900 MHz; 2.1 dBi for 2.4 GHz RPSMA male dipole,
antenna included
• Wide temperature range -40° to 85°C
• Versatile power: 10 to 48 VDC or 24 VAC
• 256-bit encryption (Model ZP9D-115RM-LR)
• Class 1 Div 2 (Model ZP9D-115RM-LR)
Need to get a digital signal across a highway or river? Or just
to the other end of your big warehouse? Zlinx radio modems
can do the job faster, easier, and less expensively than stringing
cable. Easy plug-and-play set-up saves installation and
maintenance time. These compact and rugged units are
compatible with Modbus and Profibus so no additional
converters are required. Despite their low prices, these are not wimpy consumer or
office products. Select the power level you need to punch
through whatever distance and interference situations you
encounter. Zlinx radio modems are built to handle the heat,
cold, and environments of industrial operations.
Model No Frequency Radio Power RF Data Rate Range: indoor/outdoor Price
ZP24D-250RM-SR 2.4 GHz 100 mW 250 Kbps up to 300 ft/up to 1 mi $178.00
ZP24D-192RM-MR 2.4 GHz 50 mW 19.2 Kbps up to 600 ft/up to 3 mi 278.00
ZP24D-96RM-MR 2.4 GHz 50 mW 9600 bps up to 600 ft/up to 3 mi 278.00
ZP9D-192RM-MR 900 MHz 100 mW 19.2 Kbps up to 1500 ft/up to 7 mi 318.00
ZP9D-96RM-MR 900 MHz 100 mW 9600 bps up to 1500 ft/up to 7 mi 318.00
ZP9D-115RM-LR 900 MHz 1 mW to 1W (selectable) 115 Kbps up to 3000 ft/ up to 14 mi 358.00
Higher distances available with high gain antenna. (See page 71)
ZP9D-115RM-LR
U L
Model No. Description Price
ZP24D-ANT1 Zlinx Radio Modem - Spare Antenna, 2.4 GHz $15.00
ZP24D-DIN1 Zlinx Radio Modem - Spare DIN Mount Clip, Spring 2.00
ZP24D-TB1 Zlinx Radio Modem - Spare Terminal Block Kit, Dip Switch Cover 9.00
ZP9D-ANT1 Zlinx Radio Modem - Spare Antenna, 900 MHz 15.00
ZP9D-DIN1 Zlinx Radio Modem - Spare DIN Mount Clip, Spring 2.00
ZP9D-TB1 Zlinx Radio Modem - Spare Terminal Block Kit, Dip Switch Cover 9.00
MDR-60-24 24VDC, 2.5A DIN Rail Power Supply, Slimline 69.00
Accessories & Power Supply
Designed & Manufactured by
Model No. Description Price
RM-LR-KIT Radio Modem LR (Long Range) Starter Kit $748.00
RM-SR-KIT Radio Modem SR (Short Range) Starter Kit 398.00
Now Available! Starter Kits, Including:
Power Supplies • Programming Cables • Programming Software
ZP24D Radio Modems
Features
• New, simplified programming
• Basic screen and an advanced screen
• Auto search function if radio settings are forgotten
• Easy field firmware updates
Easy-to-program system! Zlinx radio modems and Zlinx
Modbus I/O use the same software manager suite.
Configuration software is
free (download from
B&B Electronics website.)
Or a CD can be purchased –
absolutely no registration
fees or worries about
installing it on any
computer you have.
Free Zlinx software for network configuration,
Modbus addressing, and alarms
(ZP9D-115RM-LR)
