12 Hookups (cont’d)

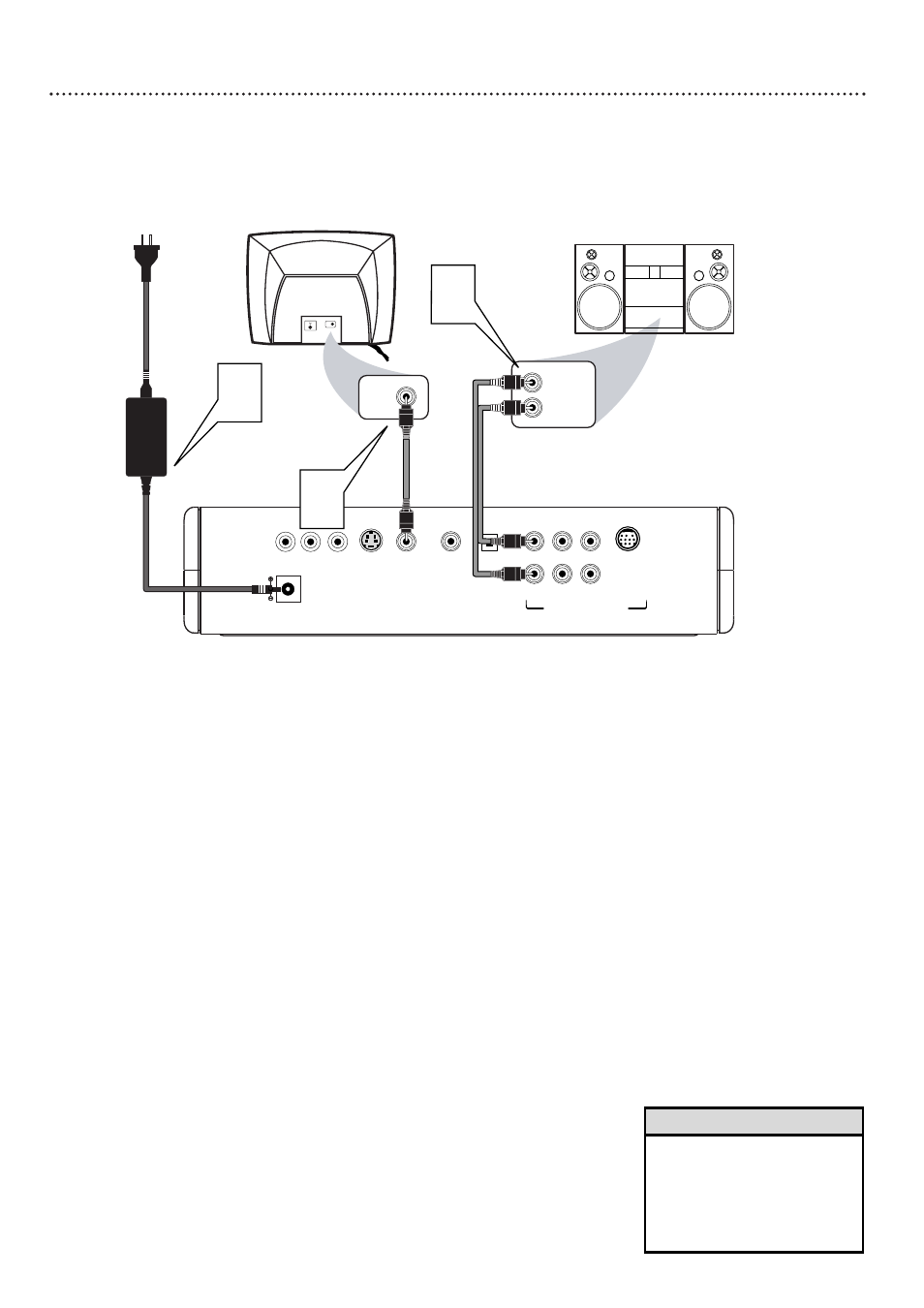

Connecting to a TV and a two-channel Stereo
(Stereo has Dolby Pro Logic or right/left Audio In jacks)
COAXIAL OPTICAL VIDEO S-VIDEO
Y Pb Pr
12V
FL SL CENTER
FR SR SUBW.
MULTI-5.1
Back of TV
(example only)
LEFT AUDIO IN
RIGHT AUDIO IN
1
Stereo
(example only)
VIDEO IN
2
VIDEO IN
3
MULTICHANNEL AUDIO OUT
1 Connect the supplied yellow video cable to the Player’s yel-
low VIDEO jack and to the corresponding VIDEO IN jack
on your TV.
2 Connect the supplied red and white audio cables to the
Player’s FR (front right, red) and FL (front left, white) jacks
and to the right/left AUDIO IN jacks on the Stereo. Match
the cable colors to the jack colors.
3
Connect the supplied power adaptor to the 12V jack on the
rear of the Player.
Connect the power plugs of the Player’s adaptor, the TV,
and the Stereo to a power outlet.
4 Press POWER y y or DVD y y to turn on the Player.
Turn on the TV and set it to the correct Video In channel.
Such channels may be called AUX or AUXILIARY IN,
AUDIO/VIDEO or A/V IN, EXT1 or EXT2, etc. These channels
often are near channel 00. See your TV owner’s manual for
details. Or, change channels at the TV until you see the Player’s
blue background screen on the TV.
Turn on the Stereo and set it to the correct Audio In chan-
nel or sound source. Refer to the Stereo’s manual.
5 Set TV TYPE accordingly. Details are on page 33.
Set AUDIO OUT to ANALOG. Details are on page 36. • You may use S-Video or
Component Video connections
instead for higher picture quali-
ty. These options must be avail-
able on your TV. Details are on
pages 10-11.
Helpful Hint
