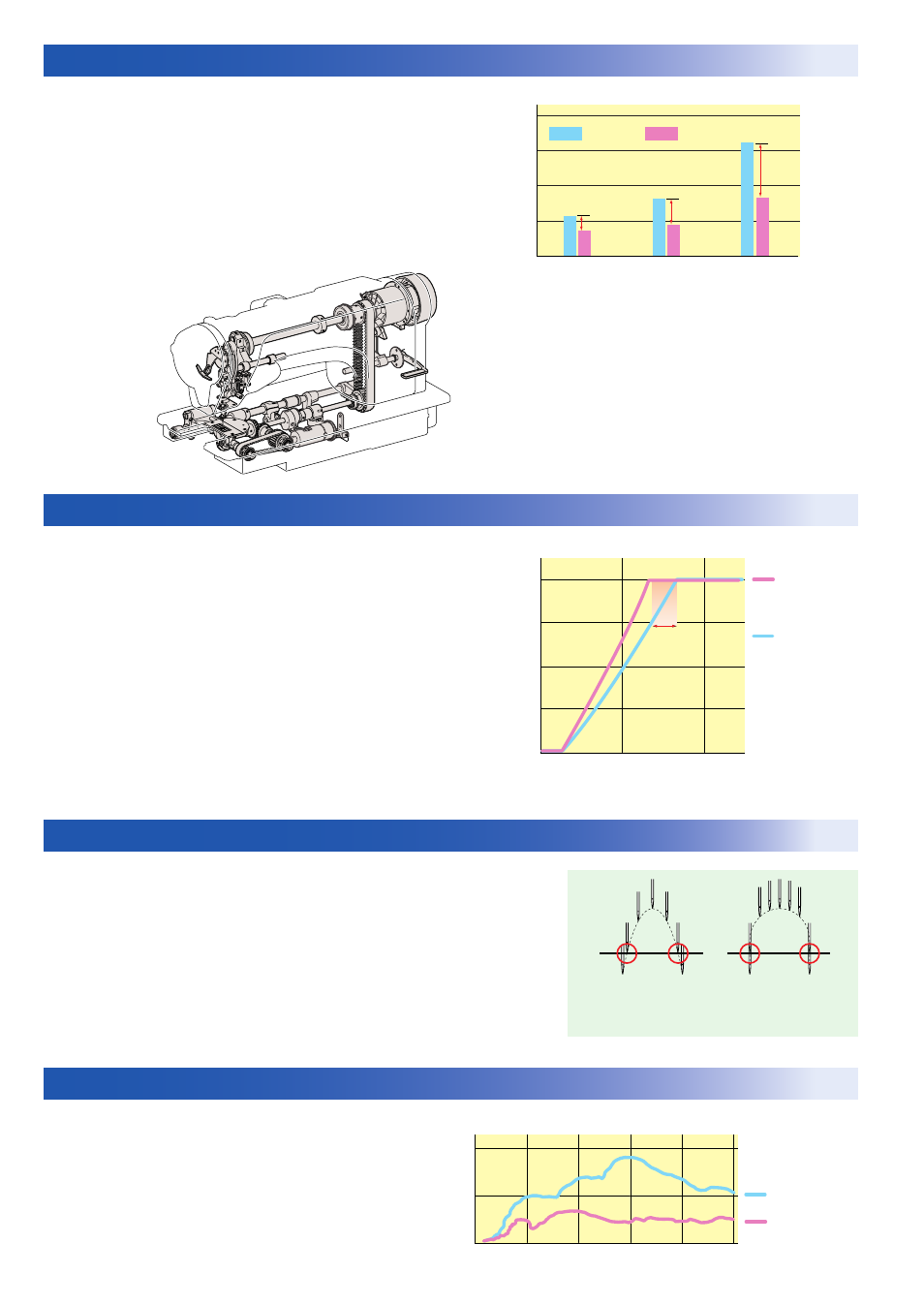

The internal brand-new direct drive motor, designed
through with magnetic field analysis, is the most compact
in the industry. As the motor’s driving force is transmitted
directly to the mechanisms, energy loss can be reduced to
the minimum. Electrical power consumption has been
lowered to approximately 50% of that of our conventional
V-belt driven system (AC servo motor). The Z-8550A and
Z-8560A are the top energy-saving models in the industry.
The industry’s most efficient energy savings
An operator’s control is essential for lock stitching
process. The direct drive system responds to an
operator’s control very well and performs sewing fit to
his/her intention.
Good response, comfortable sewing
The high-rigidity frame and well-balanced parts
details realized by computer analysis have
reduced the noise and vibration to the minimum.
This frees operators from fatigue and stress.
Low noise and low vibration allow stress-free operation
With the electronic zigzag stitchers, the needle moves
perpendicular to the material so that needle deflection does not
occur even at high speed sewing. Furthermore, the pulse motor
with servo control, adopted for the needle bar mechanism,
prevents position slippage.
No needle deflection, no position slippage, even at high-speed sewing
Previous
models Z-8550A
Z-8560A
Operation rate
Comparison of power consumption
0
100
200
300
400
Electric power consumption (Wh)
48%
reduction
50%
48%
reduction
17%
39%
reduction 39%
reduction
46%
reduction
25%
46%
reduction
Comparison of time to reach 4,000 rpm
0
1,000
2,000
3,000
4,000
Second
Z-8550A
Z-8560A
Previous models
Sewing speed (rpm)
0.1 0.2
0.17 second
0.14 second
20%
reduction 20%
reduction
Comparison of vibration level
Vibration amplitude (mm)
0
3,000 2,000 4,000 5, 000 Sewing speed (rpm) 1,000
Z-8560A
Previous models
Mechanical
zigzag stitcher
Electronic zigzag stitcher
Needle path
No needle deflection because
the needle moves perpendicular
to the material.
