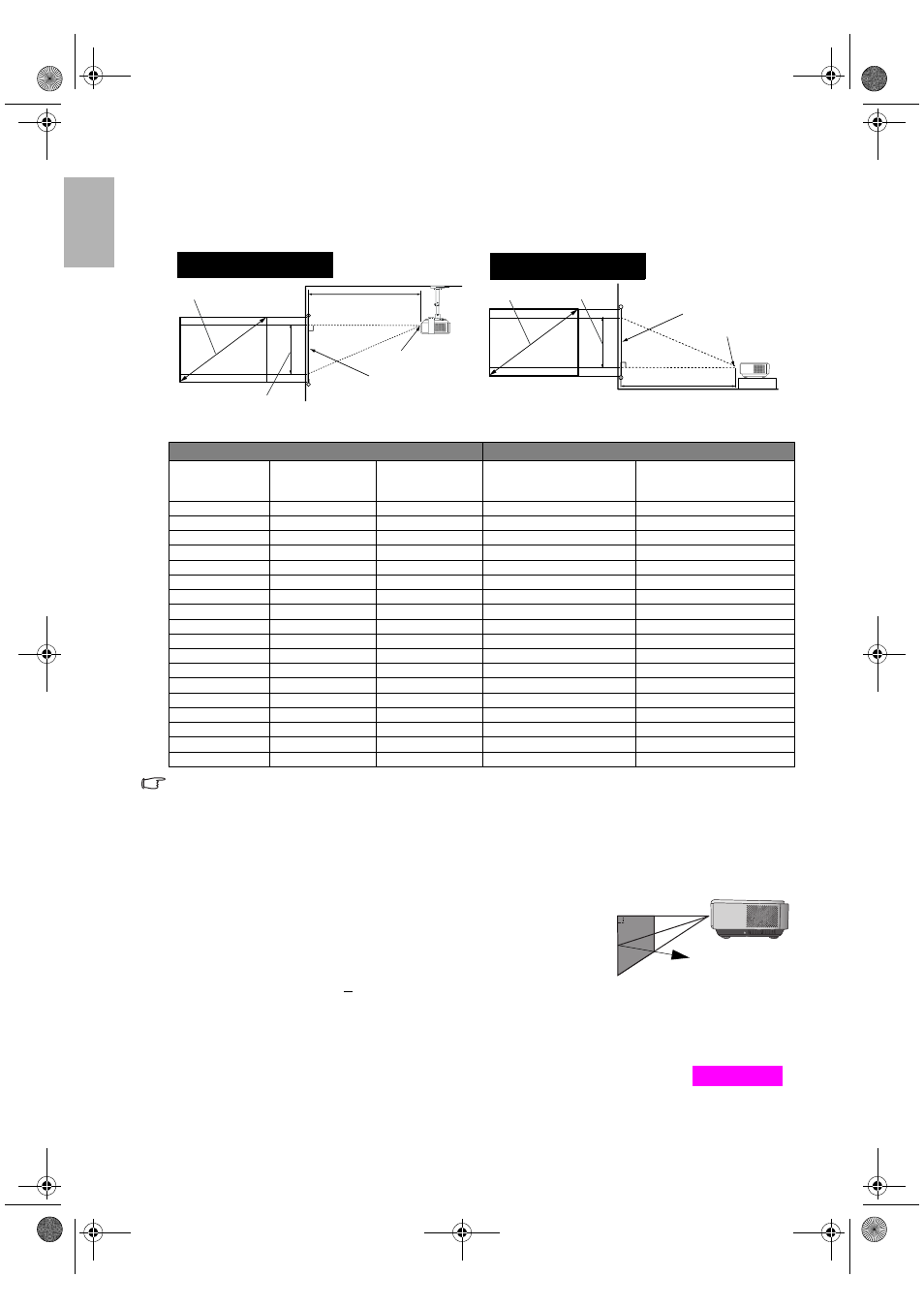

16 Positioning your projector
English Installation for a 4:3 ratio screen
The illustrations and table below are provided for those users who already have 4:3 aspect ratio screens or intend
to purchase 4:3 aspect ratio screens to view 16:9 ratio projected images.
4:3 (standard) ratio screen dimension table:
The above numbers are approximate and may be slightly different from the actual measurements. Only the
recommended screen sizes are listed. If the your screen size is not in the table above, please contact your
BenQ dealer for assistance.
An examination of the table reveals that you can place the projector lens in the range from 1.84 to 14.92m
distance from the screen, which will give you a projected image from 50" (1.02 x 0.76m) to 300" (6.1 x 4.57m).
Shifting the projection lens vertically
The vertical lens shift control provides flexibility for installing your
projector. It allows the projector to be positioned slightly above or below
the top level of the projected images.
The lens shift (offset) is expressed as a percentage of the projected image
height. It is measured as an offset from the projected image's vertical center.
The projector is equipped with + 100% vertical lens shift. You can shift the
projection lens upwards or downwards within the allowable range depending on your desired image position.
When the LENS button on the remote control or LENS SHIFT buttons (c or d) on the projector is pressed, an
adjustment bar displays on the screen.
To raise the projected image, press the Lens Shift c button on the projector or the c button
on the remote control.
To lower the projected image, press the Lens Shift d button on the projector or the d
button on the remote control.
Screen
Image Height
Projection Distance
Ceiling
Center of the lens
Diagonal
Ceiling Installation
Projection Distance
Floor
Screen
Image Height
Center of the lens
Diagonal
Floor Installation
Screen Dimensions (inch / cm) Projection Distance (inch / cm)
Diagonal Width Height
Min distance (with
max zoom)
Max distance (with min
zoom)
50 / 127 40 / 102 30 / 76 72 / 184 98 / 249
60 / 152 48 / 122 36 / 91 87 / 221 117 / 298
70 / 178 56 / 142 42 / 107 102 / 258 137 / 348
80 / 203 64 / 163 48 / 122 116 / 294 157 / 398
90 / 229 72 / 183 54 / 137 130 / 331 176 / 448
100 / 254 80 / 203 60 / 152 145 / 368 196 / 497
110 / 279 88 / 224 66 / 168 159 / 405 215 / 547
120 / 305 96 / 244 72 / 183 174 / 442 235 / 597
130 / 325 104 / 264 78 / 198 188 / 478 254 / 646
140 / 356 112 / 284 84 / 213 203 / 515 274 / 696
150 / 381 120 / 305 90 / 229 217 / 552 294 / 746
160 / 406 128 / 325 96 / 244 232 / 589 313 / 796
170 / 432 136 / 345 102 / 259 247 / 626 333 / 845
180 / 457 144 / 366 108 / 274 261 / 662 352 / 895
190 / 483 152 / 386 114 / 290 275 / 699 372 / 945
200 / 508 160 / 406 120 / 305 290 / 736 392 / 995
250 / 635 200 / 508 150 / 381 362 / 920 489 / 1243
300 / 762 239 / 610 180 / 457 435 / 1104 587 / 1492
0
100%
-100%
Vertical center of
the image
c
d
Lens Shift
