OPERATION
2647 01/11 Operation Section 4-13
© 2011 Alamo Group Inc.
OPERA
T
ION

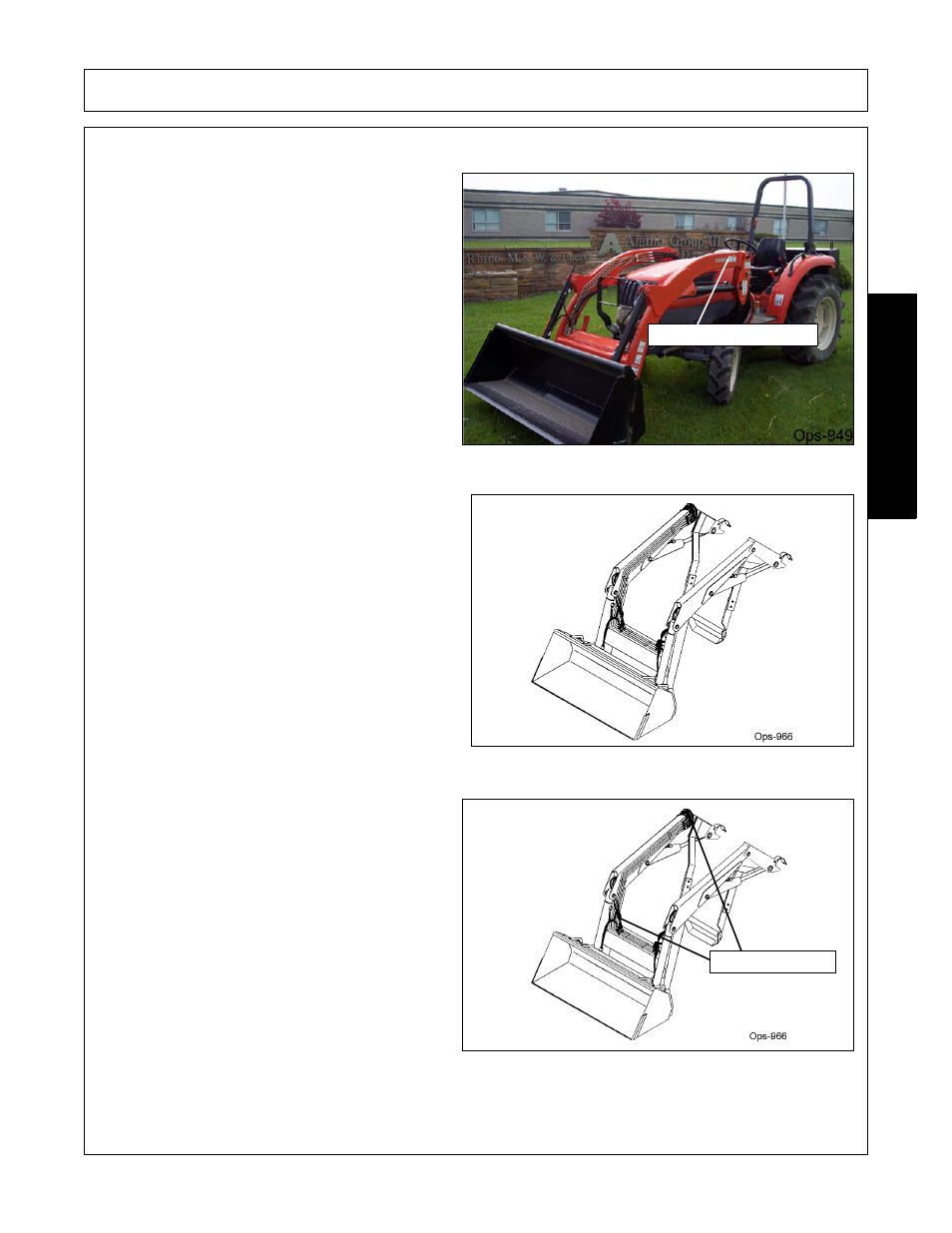

MOUNT ASSEMBLY
• Inspect condition of mounting frame weldment.
• Ensure all bolts and screws are in position and
are properly torqued.
• Ensure all pins are in place and fastened with
screws.
• Ensure frame is properly mounted to tractor
and hardware is properly installed and
tightened. OPS-L-0004_A
Mount Frame Assembly
LOADER BOOM ASSEMBLY
• Inspect condition of each arm section weldment
• Ensure all pins are in place.
• Ensure all bolts and screws are properly
installed.
• Check condition of bushings at boom pivot
points.
• Ensure each hydraulic cylinder is installed and
retained correctly. Ensure the proper size pins
are used to retain the cylinders in place and are
secured properly. OPS-L-0005_B
HYDRAULIC LINE INSPECTION
• Check for hydraulic leaks along hoses,
cylinders and fittings. IMPORTANT: DO NOT
use your hands to check for oil leaks. Use a
piece of heavy paper or cardboard to check for
hydraulic oil leaks.
• Inspect the condition of the valve weldment.
• Ensure fitting is properly connected
• Inspect condition of bushings. OPS-L-0018_B
Hydraulic Hoses
