ASSEMBLY
2647 01/11 Assembly Section 3-4
© 2011 Alamo Group Inc.
ASSEMBL
Y
Installing Mounting Brackets
Install all mounting brackets on the tractor according to instructions packed with mounting kit.
Note: Leave all hardware loose until the loader is completely assembled to facilitate assembly and proper
loader alignment.
Installing Bucket

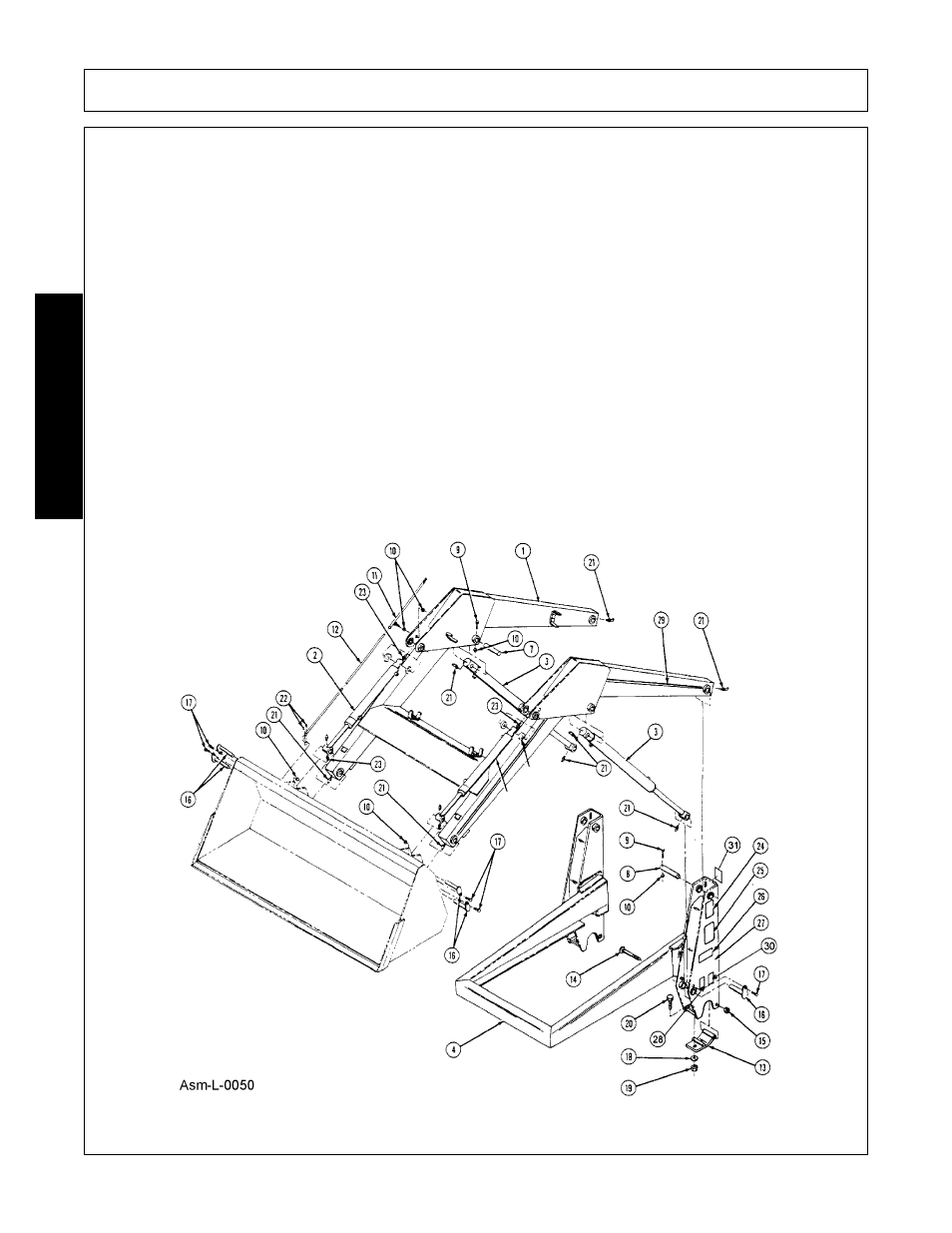

Attach bucket boom assembly (1) and bucket cylinders (2) with pin assemblies (16), 3/8-16 x 3/4” shoulder
bolts (17), and 3/8-16 lock nuts (10).
Installing Bucket Level Indicator
Remove 3/8-16 lock nut (10) from guide tube (11) and attach guide tube (11) to boom assembly (1) as
illustrated, and secure with 3/8-16 lock nut (10).
Slide bucket level indicator rod (12) into guide tube (11) and attach the other end of rod to bucket pin assembly
with 1” cotter pin (22).
Locate tractor and loader on level surface. With bottom of bucket resting on the surface, cut off the excess rod
(12) flush with the end of guide tube (11).
