Standard Equipment and Specifications
Specifications will vary with tractor, tire size, hydraulic system and bucket used. The specifications are given
for a loader equipped with 72” material bucket operated with an average tractor hydraulic system of 14 GPM.
Horsepower Range
60-100 HP
System pressure/flow rate
2500 PSI/ 14 GPM
Lift Capacity to maximum height
1930 lbs.
Breakout force at pivot pin
5640 lbs.
Rollback force at ground line
4495 lbs.
Total weight with bucket (approx.)
1945 lbs.
Hydraulic system flow
14 GPM
System pressure at rated flow
2500 PSI

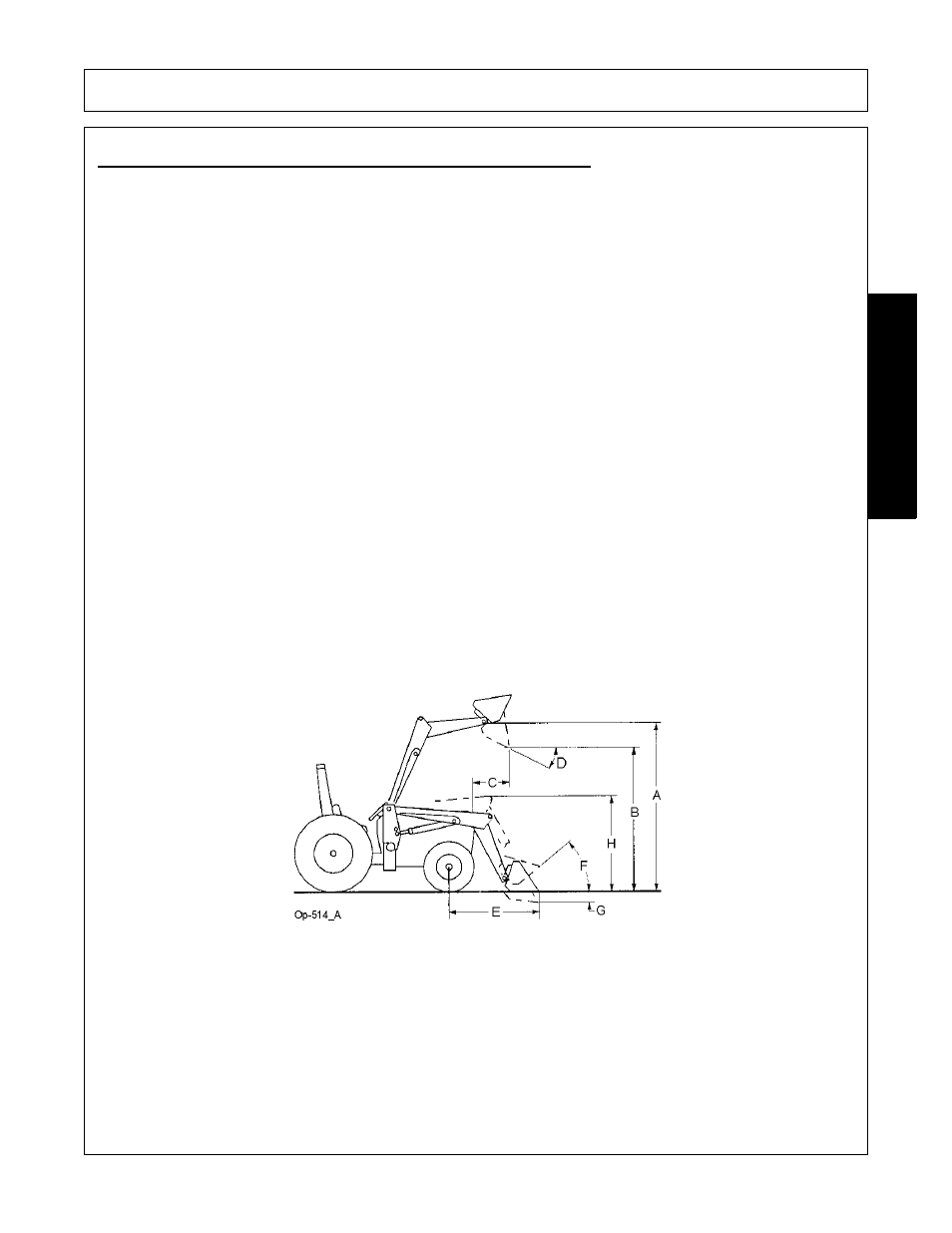

(A)
Maximum Lift Height at Pivot Pin
124”
(B)
Clearance with Bucket Dumped
102”
(C)
Reach at Maximum Height
36”
(D)
Maximum Dump Angle
45°
(E)
Reach with Attachment on Ground
71.5”
(F)
Attachment Rollback Angle
22°
(G)
Digging Depth
5”
(H)
Overall Height in Carry Position
73.62”
(Manufacturers estimated specifications and design subject to change without notice.)
