Bunn ES.1A - Manual (Page 27)

25
BUNN Espress™ Model ES•1A™
P-172

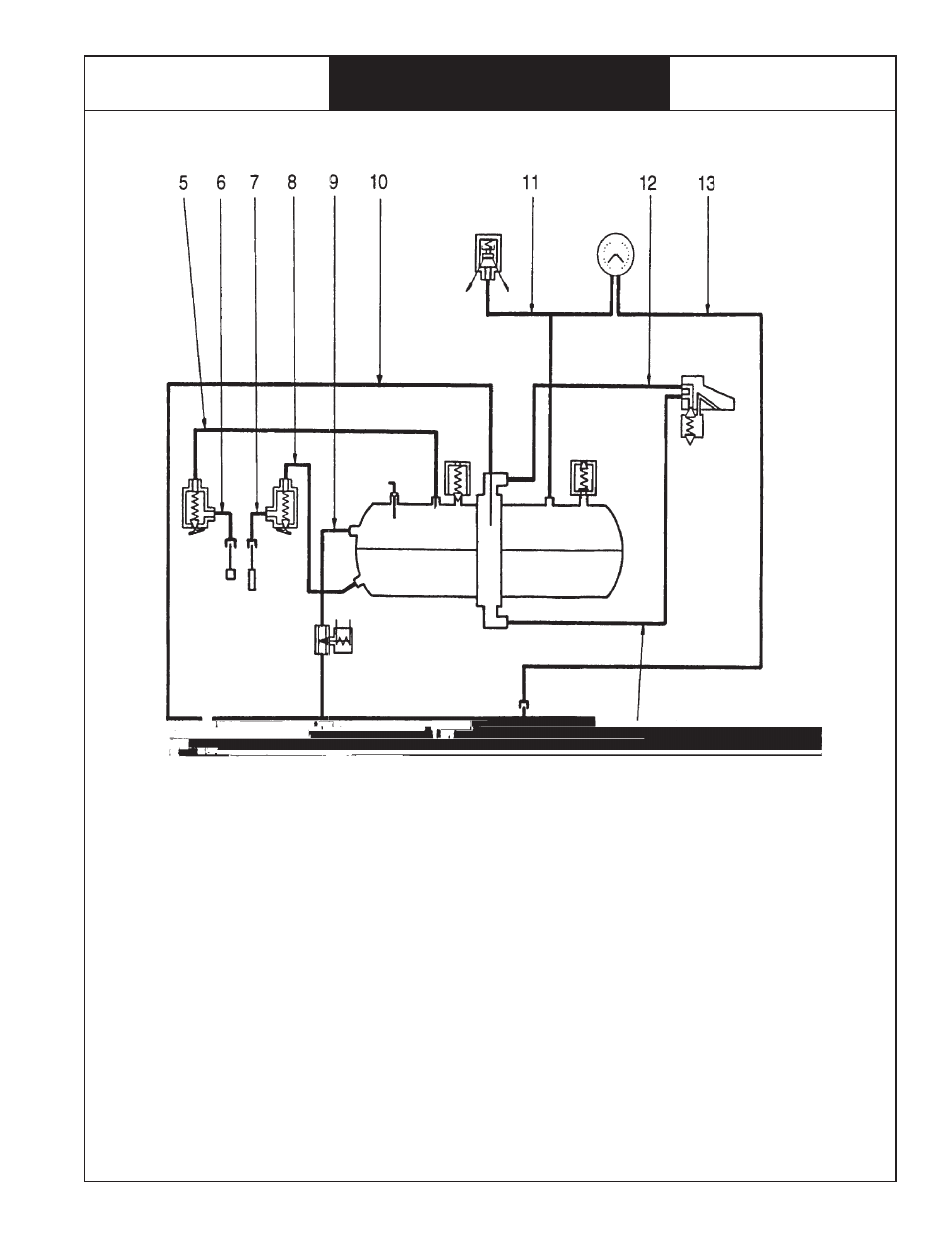

Figure Description Part Number
8 ...... Copper tube, tank to faucet valve .... 23616.0000
9 ...... Copper tube, refill solenoid to tank .. 23615.0000
10 .... Copper tube, flowmeter to exch. ...... 23614.0000
11 .... Copper tube-pressure switch .......... 23613.0000
12 .... Upper copper tube, exch. to group .. 23612.0000
13 .... Copper tube, press. gauge-pump .... 23611.0000
Figure Description Part Number
1 ...... Copper tube, pump inlet .................. 23623.0000
2 ...... Copper tube, pump out to rlf. chk. ... 23622.0000
3 ...... Lower copper tube, exch. to grp. ..... 23621.0000
4 ...... Copper tube, rlf./chk. to flowmeter .. 23620.0000
5 ...... Copper tube, tank to steam valve .... 23619.0000
6 ...... Copper tube, st. valve to swivel ftg. . 23618.0000
7 ...... Copper tube, faucet to swivel ftg. .... 23617.0000
REPLACEMENT PARTS
