BUNN Espress™ Model ES•1A™
18

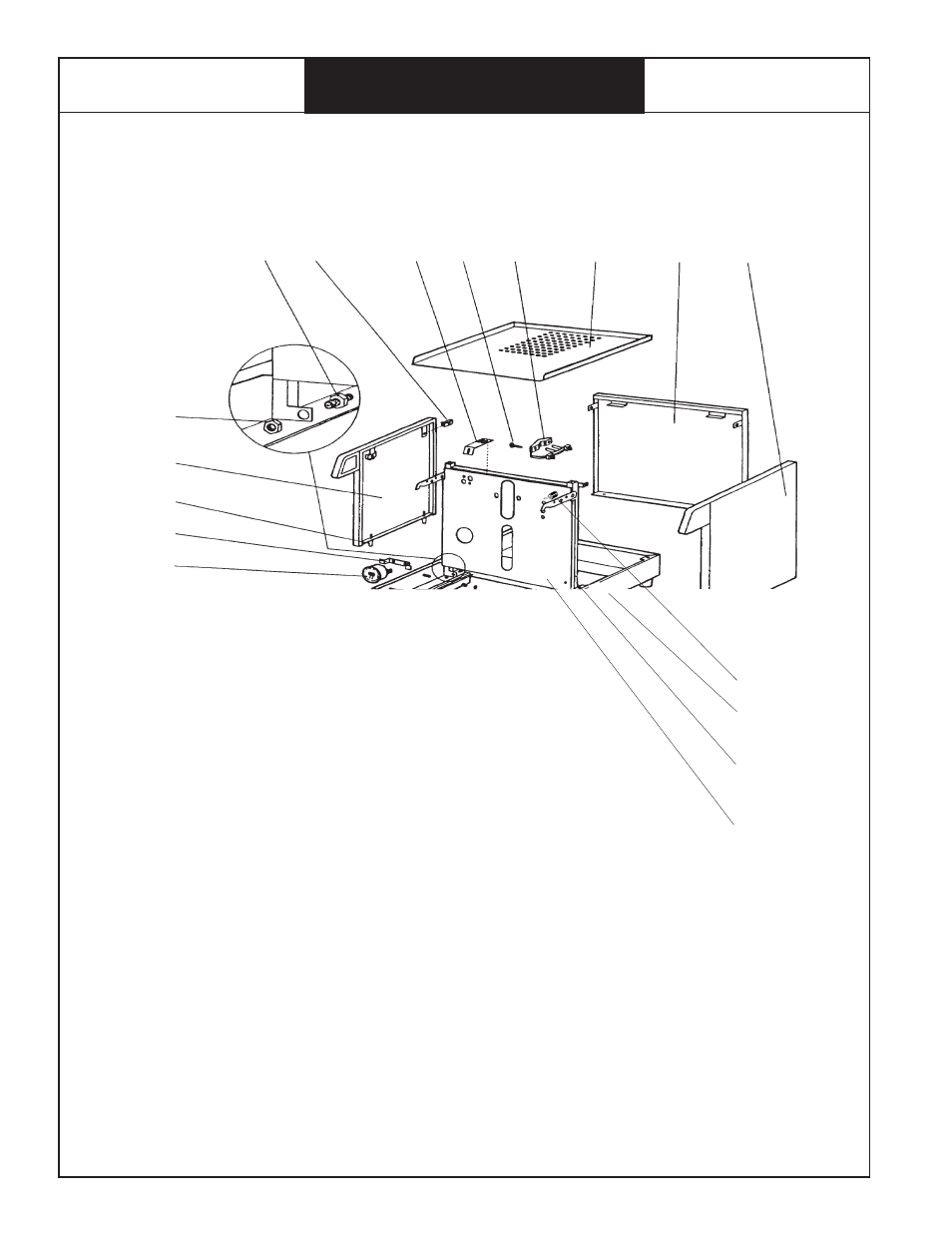

Figure Description Part Number
1 ...... Drip tray guide (left) ........................ 23654.0000
2 ...... Pressure gauge ............................... 24210.0000
3 ...... Pressure gauge mounting bracket ... 24212.0000
4 ...... Locating pin-lower side panel .......... 23648.0000
5 ...... Side panel (left) ............................... 23669.0000
6 ...... Nut .................................................. 23933.0000
7 ...... Outlet fitting ..................................... 23610.0000
8 ...... “U” clip ............................................ 23638.0000
9 ...... Center mtg. brkt., front panel .......... 23652.0000
10 .... Screw .............................................. 24004.0800
11 .... Cable clamp ..................................... 23635.0000
12 .... Top cup warmer panel ..................... 23658.0000
Figure Description Part Number
13 .... Back panel ....................................... 23656.0000
14 .... Side panel (right) ............................. 23668.0000
15 .... Programming switch-toggle ............ 22816.0000
16 .... Base frame ...................................... 23667.0000
17 .... Machine frame chassis .................... 23660.0000
18 .... Chrome front panel .......................... 23659.0000
19 .... Drain cup ......................................... 23634.0000
20 .... Drip tray guide (right) ...................... 23653.0000
21 .... Rubber foot ..................................... 23633.0000
22 .... Nut .................................................. 24045.0101
23 .... Drip tray .......................................... 23655.0001
24 .... Drip tray grate ................................. 23657.0000
9 13 14 7 8 10 11 12
6
5
4
3
2
1
24 23 22 21 20 19
15
16
17
18
P-165
REPLACEMENT PARTS
