LTC 2210 Series | Instruction Manual | Illustrations
Bosch Security Systems | December 17, 2004
EN | 11
6.0 ILLUSTRATIONS

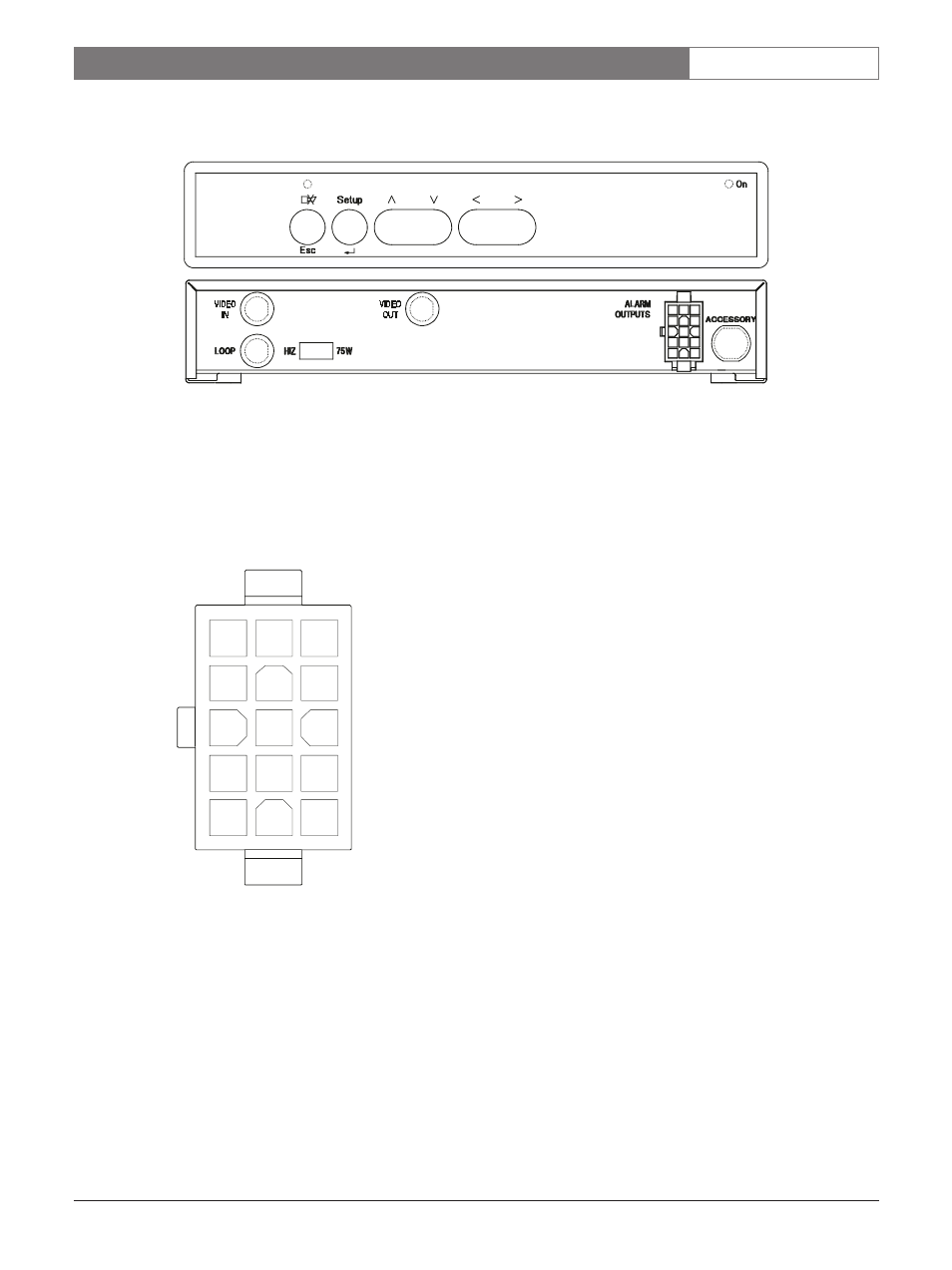

Figure 1 Front and Back Panels
NOTE: NC designates No Connection, NO designates Normally Open.
Figure 2 ALARM/ACCESSORY Connector
1 6 11
2 7 12
3 8 13
4 9 14
5 10 15
Pin Function Pin Function
1 Ground 9 Alarm Relay (NO)
2 NC 10 NC
3 NC 11 NC
4 NC 12 NC
5 NC 13 NC
6 Alarm 1 14 Alarm Relay (NO)
7 NC 15 Remote Alarm Enable
Input
8 NC
