4 2010AS3297 Manual
B&B Electronics -- PO Box 1040 -- Ottawa, IL 61350
PH (815) 433-5100 -- FAX (815) 434-7094

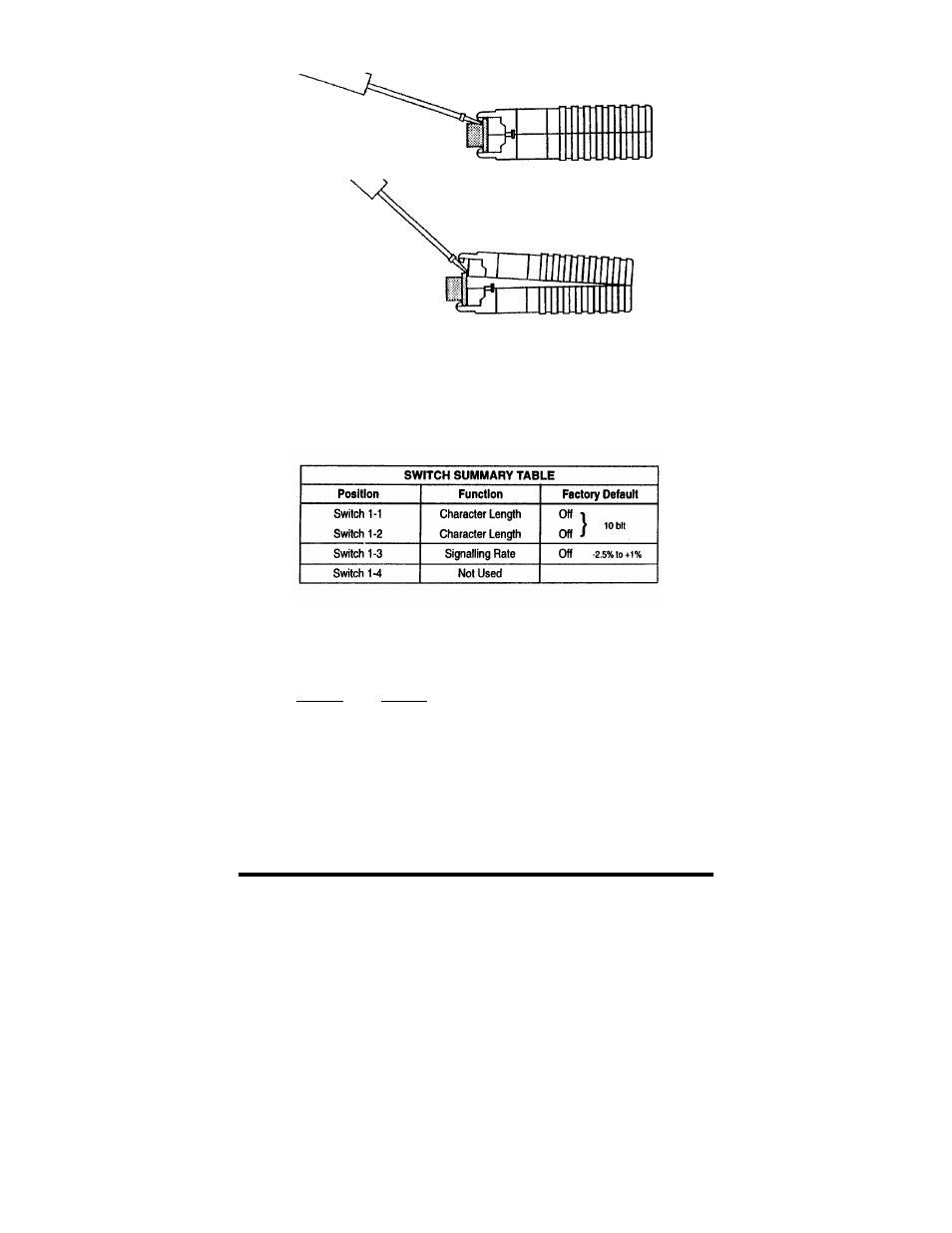

Figure 3. Opening the Model 2010’s case with a small screwdriver
3.2 SWITCH SETTINGS
All possible settings for the Model 2010's configuration switches are
presented in the following summary table and descriptions. If you have
additional questions regarding configuration, contact B&B Technical
Support at (815) 433-5100.
Switches SW1-1 and SW1-2: Character Length
Switches SW1-1 and SW1-2 are set in combination to determine the
character length for asynchronous data.
SW 1-1 SW 1-2
Off On 8 bit
On On 9 bit
Off Off 10 bit
On Off 11 bit
