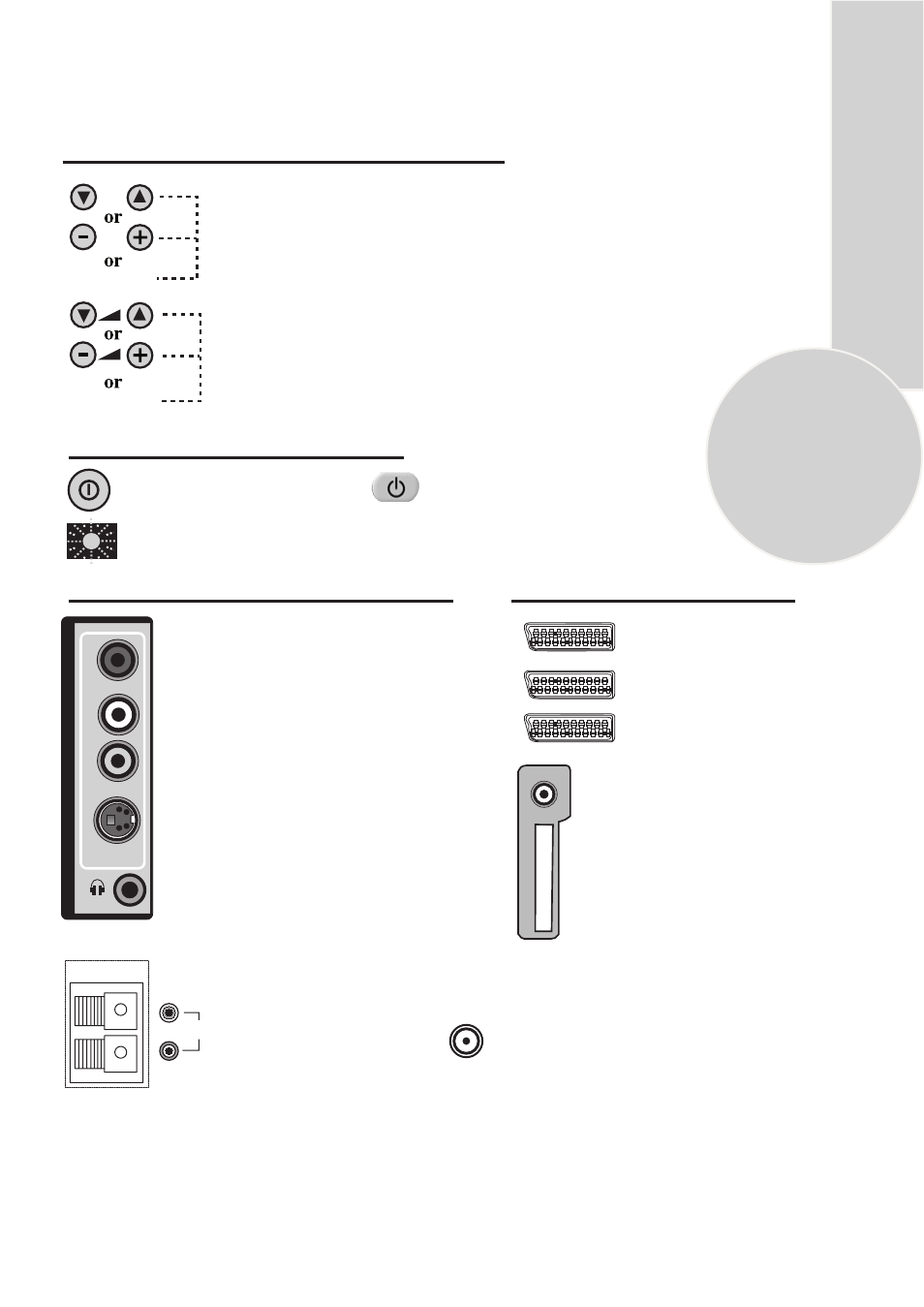

Control Unit
Front Panel
Program Down/Up button
Volume Down/Up button.
General
ON/OFF switch Stand by (Model dependant)
Stand by indicator
External Connections: (Front or side)
Right audio PHONO (Red)
Left audio PHONO/Mono PHONO (White)
Video PHONO (Yellow)
S-Video connection
Headphone socket
Please note
• See the external connections table on next page for available connections depending the
size and model of your TV set.
• Do not use Video PHONO and S-Video connections at the same time, otherwise they will
effect the picture each other.
AV1 scart
(External connections: (Rear)
AV2 scart
Aerial socket
AV3 scart (Model dependant)
COAX
Coaxial output (Model dependant)
CI slot ( Model dependant)
This common interface (C.I) slot
works with an external module,
and for use with top up TV
conditional access moduele and
smart card.
S-VIDEO
VIDEO
L
MONO
R
AUDIO
You may wish to connect
an audio amplifier or any
similar devices to audio
out. The output is always
the current channel you
are watching.
AUDIO
OUT
P- P+
V- V+
R
L
SUBWOOFER
(Model Dependant)
It is used for external
subwoofer in 33” televisions
