28

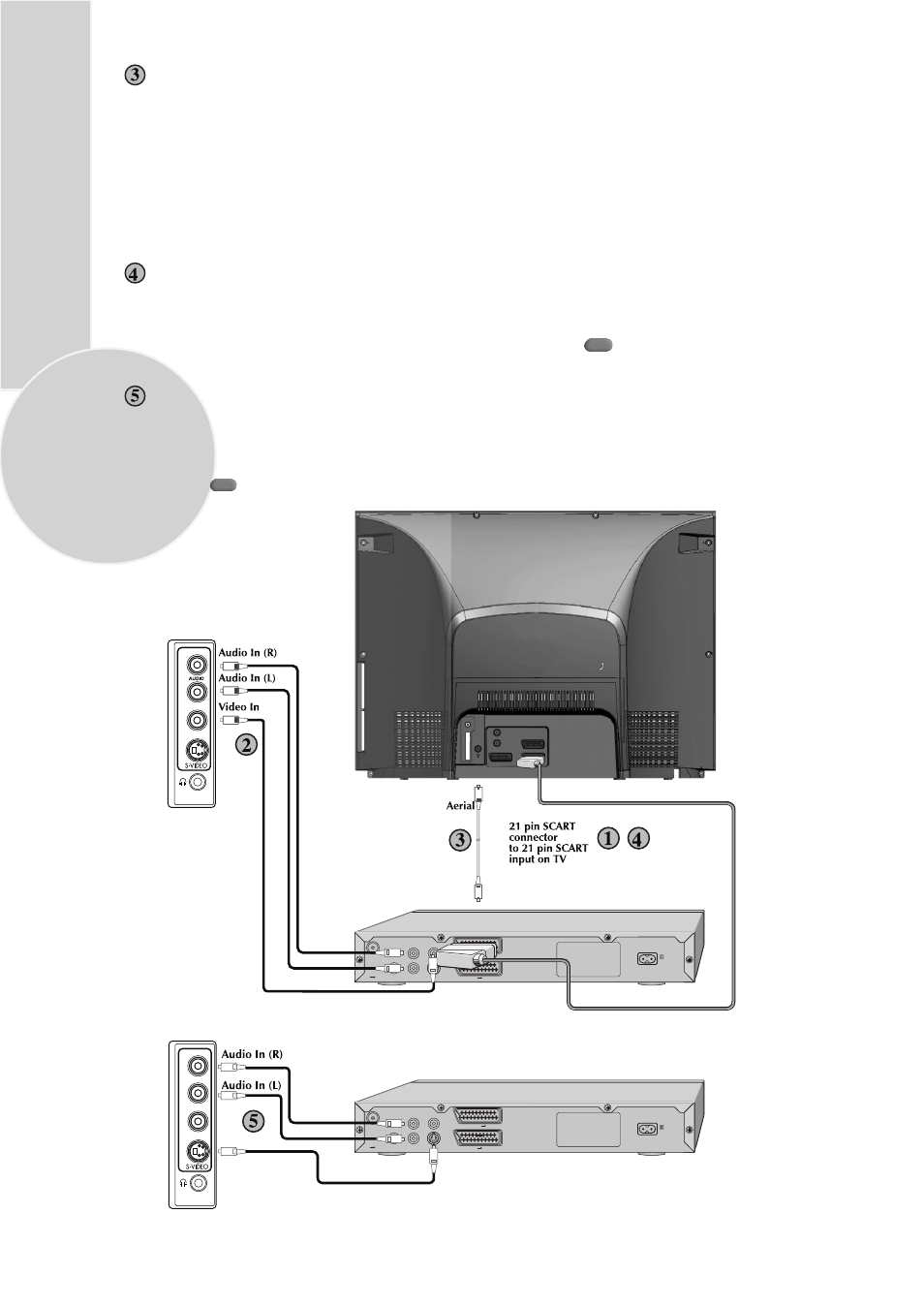

Via aerial socket
Make sure the TV and video recorder are both switched off.
Unplug the aerial lead from the TV and plug it into the aerial socket on the video recorder
(if fitted). Plug a coaxial plug into the RF out socket on the rear of the video recorder and
plug the other end into the aerial socket of the TV. Switch on the video recorder and the
TV. If your video recorder has a test signal, switch it on. (Refer to the video recorder user
guide). See ‘Tuning the TV’ and carry out the tuning procedure for the video recorder test
signal. Select a programme number 0 or between 55 and 99.
S-Video Player
If you have an S-Video player you can connect it to SCART socket 2 via an adaptor from
scart to S-Video/PHONO audio (not supplied). Press the
»
AV
« button three times to select
AV2S (available for two scart models).
Via PHONO lead and S-Video socket
You can also connect it through the S-Video socket of the TV (Model dependant).
Plug the S-Video plug into the S-Video socket and the audio leads into the audio sockets.
Press the
»
AV
«
button repetitively to select AV3S for two scart models or AV4S for three
scart models.
R
L
MONO
VIDEO
110-240 V ~
50/60 Hz 35 W
ANTENNA IN
OUT TV DIGITAL AUDIO OUT
L
R
AUDIO OUT S-VIDEO OUT
VIDEO OUT
EURO A V 1 TV
EURO A V 2 DECODER
110-240 V ~
50/60 Hz 35 W
ANTENNA IN
OUT TV DIGITAL AUDIO OUT
L
R
AUDIO OUT S-VIDEO OUT
VIDEO OUT
EURO A V 1 TV
EURO A V 2 DECODER
R
L
MONO
VIDEO
S-Video In
R
L
AUDIO OUT
AV1
AV2
AV3
COAX
VIDEO
VIDEO
