BUNN

®

practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such

revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.

Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.

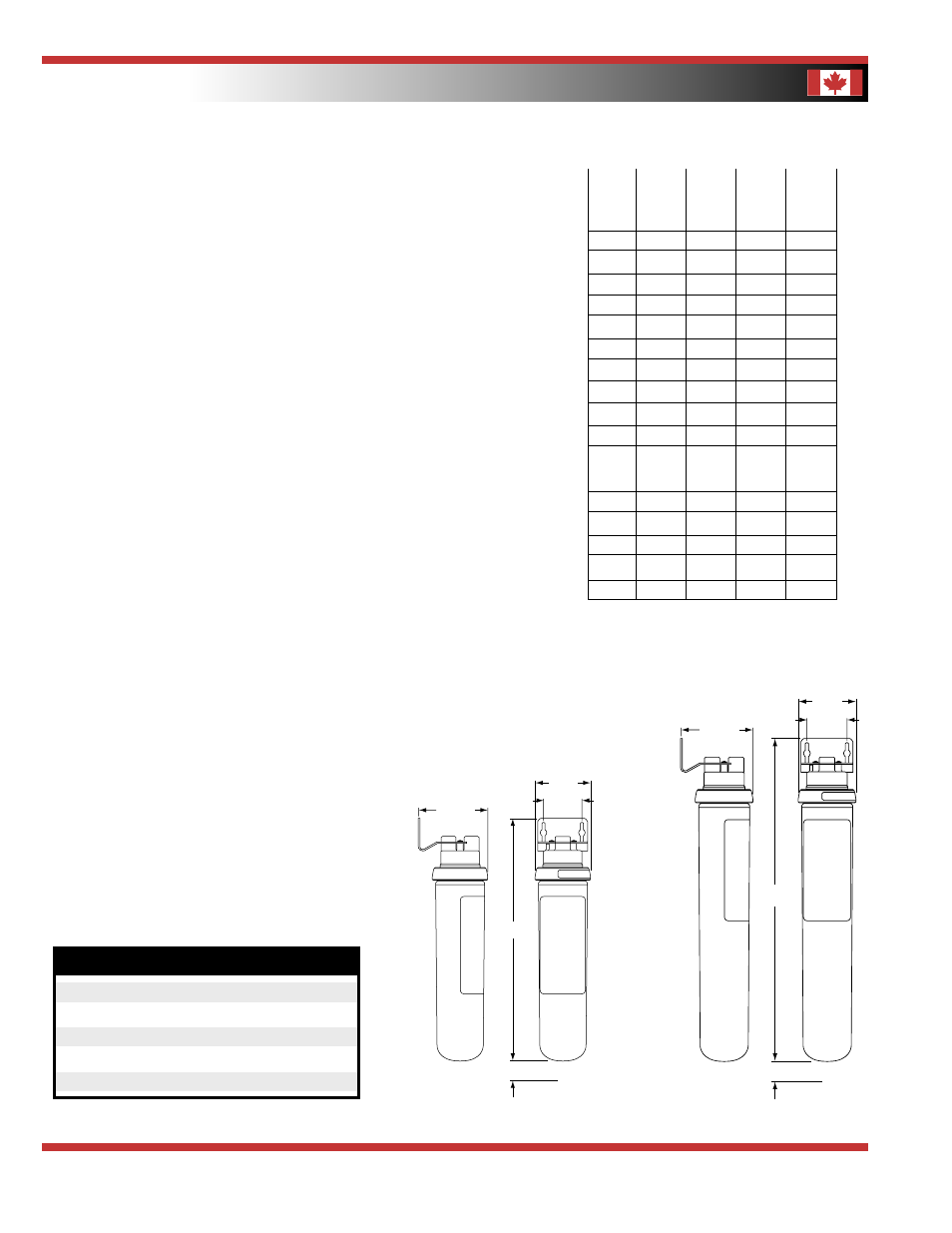

Dimensions & Specifications

Bunn-O-Matic Corporation of Canada - 280 Industrial Pkwy. S. Aurora, Ontario L4G 3T9 • 905-841-2866 • Fax 905-841-2775 • www.bunn.com

CANADA

Model

Product #

Flow Rate

& Capacity

Multipurpose Systems

EQ-11-TL

30344.1001

1.5 gpm/4,800 gals.

EQ-12-TL

30345.1001

1.67 gpm/12,600 gals.

10” Cartridges

EQ-TL-1

(1) 30331.1001

1.5 gpm/4,800 gals.

Case

(12) 30331.0001

EQ-T-1

(1) 30331.1002

1.5 gpm/4,800 gals.

Case

(12) 30331.0002

EQ-L-1

(1) 30331.1003

.75 gpm/NA

Case

(12) 30331.0003

EQ-H-1

(1) 30331.1004

.5 gpm/900 grains

Case

(12) 30331.0004

14” Cartridges

EQ-TL-2

(1) 30332.1001

1.67 gpm/12,600 gals.

Case

(4) 30332.0001

EQ-T-2

(1) 30332.1002

1.67 gpm/12,600 gals.

Case

(4) 30332.0002

EQ-H-2

(1) 30332.1004

.5 gpm/1350 grains

Case

(4) 30332.0004

Manifolds

EQ-10

(1) 30321.1000

NA

EQ-21

(1) 30369.1000

NA

EQ-22

(1) 30325.1000

NA

EQ-32

(1) 30329.1000

NA

To figure gallon capacity for an EQ-H-1 & 2 use the

following formula: Grain capacity of cartridge ÷ water
hardness (in grains) = gallons treated.

Note: EQ models includes inlet and outlet
valves with

3

8

” female pipe

threading plus mounting bracket.

Applications For EQ Systems

TL Sediment, Taste/Odor & Lime Scale
T Taste & Odor (Carbon)
L Lime Scale (Scale Inhibitor)
H Hardness Treatment (Water Softener)
S Sediment Filtration

Sediment

Scale

Taste

Chlorine

Softener

EQ-12

EQ-11

20

1

8

1

1

4

Cartridge Changeout

3

5

8

2

1

2

4

17

32

15

7

8

1

1

4

Cartridge Changeout

3

5

8

2

1

2

4

17

32
