Ref. Qty. Description
1 2 Grapple Cylinder 2-1/2"
2 4 Fitting, 90° NPTF 1/2" x ORBM 3/4"
3 4 Clevis pin 5/16" x 2" Heat Treated
for use on 1-1/8" pins
2 Clevis pin 3/8" x 2-1/4"
for use on 1-5/16" pins.
4 6 Cotter Pin 1/8" x 1"
5 1 Hose 3/8" x 47.72" Top Left
6 1 Hose 3/8" x 27.48" Top Right
7 1 Hose 3/8" x 42.73" Bottom Left
8 1 Hose 3/8" x 22.98" Bottom Right
9 1 Quick Coupler Mount
10 1 Hex Bolt 3/8"-16NC x 3-1/2" Grade 5
11 2 Flatwasher 3/8"
Ref. Qty. Description
12 2 Hex Nut 3/8" Nylon Lock
13 1 Hex Bolt 3/8"-16NC x 1-3/4"
Pin On Bucket only, or
1 Weld-on Stud
Quick Draw Bucket only.
14 1 Hose Clamp Plastic 5/8 x 5/8
15 1 Hose Bar Support 3/16" x 1" x 2-1/2"
16 1 Quick Coupler Male ORBF 3/4"
17 1 Quick Coupler Female ORBF 3/4"
18 1 Quick Coupler Dust Plug
19 2 Bulkhead O-Ring 3/4"
20 2 Fitting Str. Bulkhead JIC M 3/4"-16
21 2 Bulkhead Nut 3/4"-16
22 2 Fitting Tee JIC M-M-F 3/4"-16

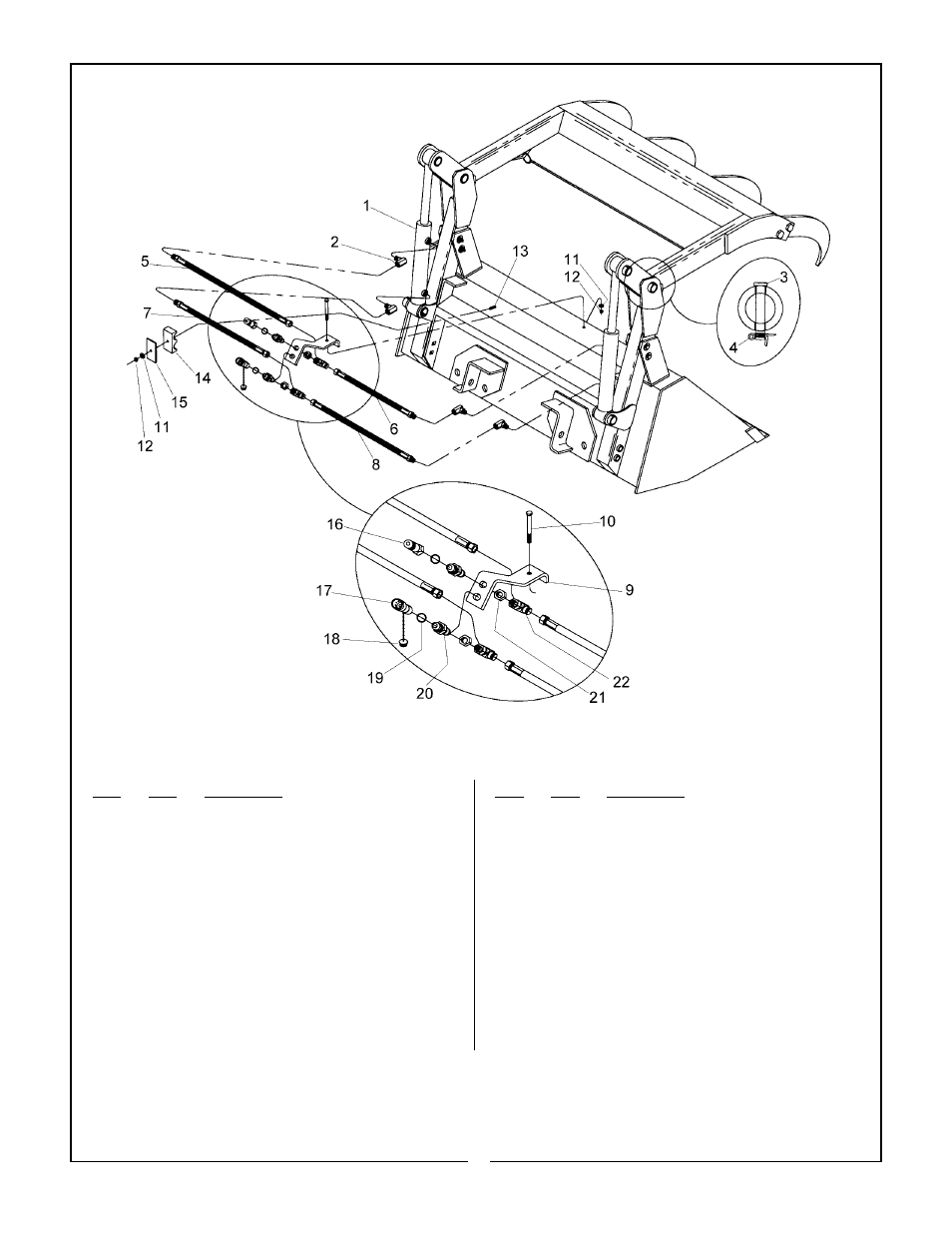

Figure 10
