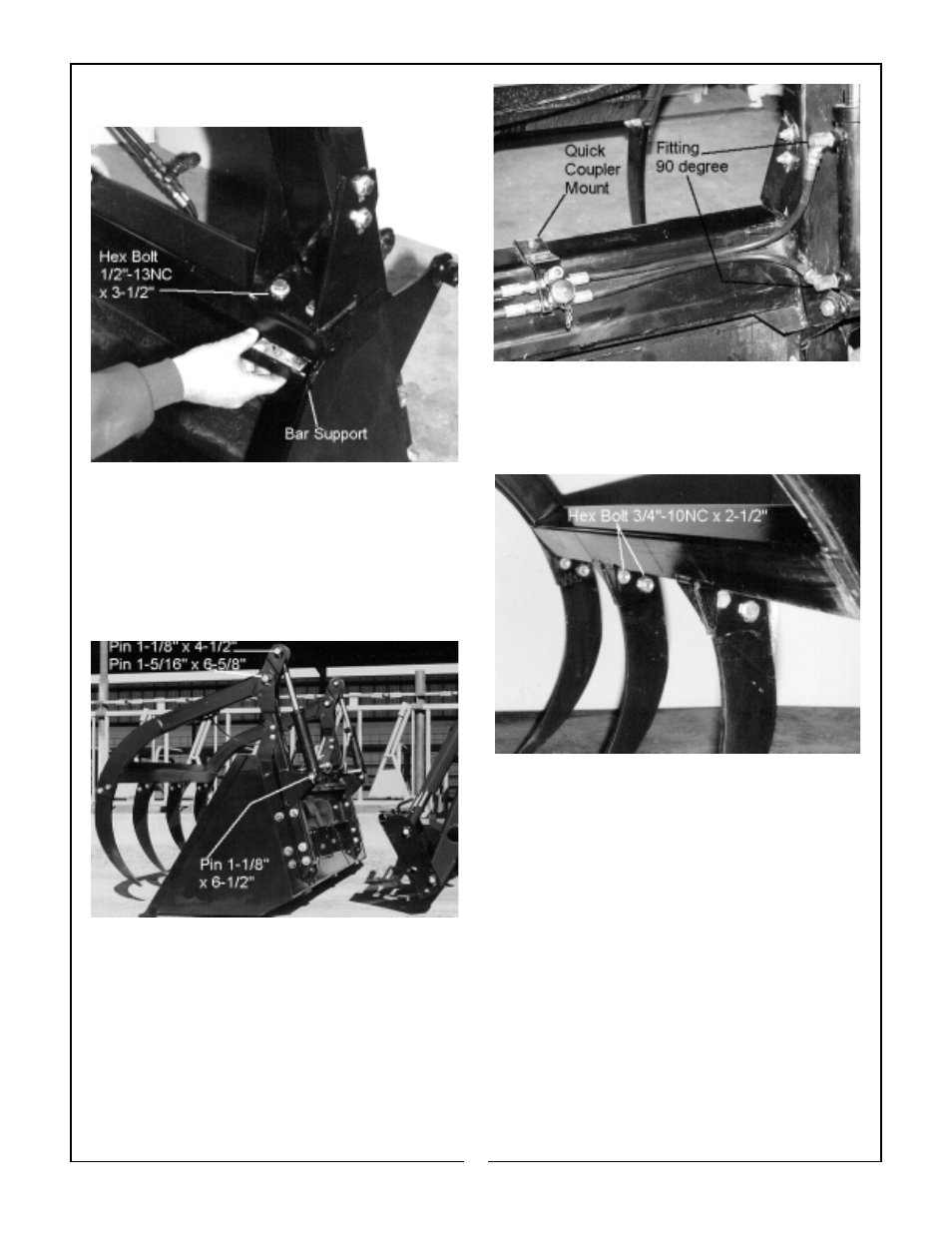

Install bar supports and attach using 1/2" x 3-1/2"
bolts, flatwashers, and nuts. Refer to Figure 4.
Install grapple swing arm assembly to pedestal using
1-5/16" x 6-5/8" pins. Install grapple cylinders to
grapple pedestals using 1-1/8" x 6-1/2" pins. Install
grapple cylinders to swing arm using 1-1/8" x 4-1/2"
pins. Secure all pins using clevis pins and cotters.
Install 90° fittings into cylinder ports and rotate into
position shown. Refer to Figures 5 & 6.
Figure 4
Figure 5
Figure 6
Install grapple tines to swing arm using 3/4" x 2-1/2"
bolts and locknuts, 8 places. Refer to Figure 7.
Figure 7
37
