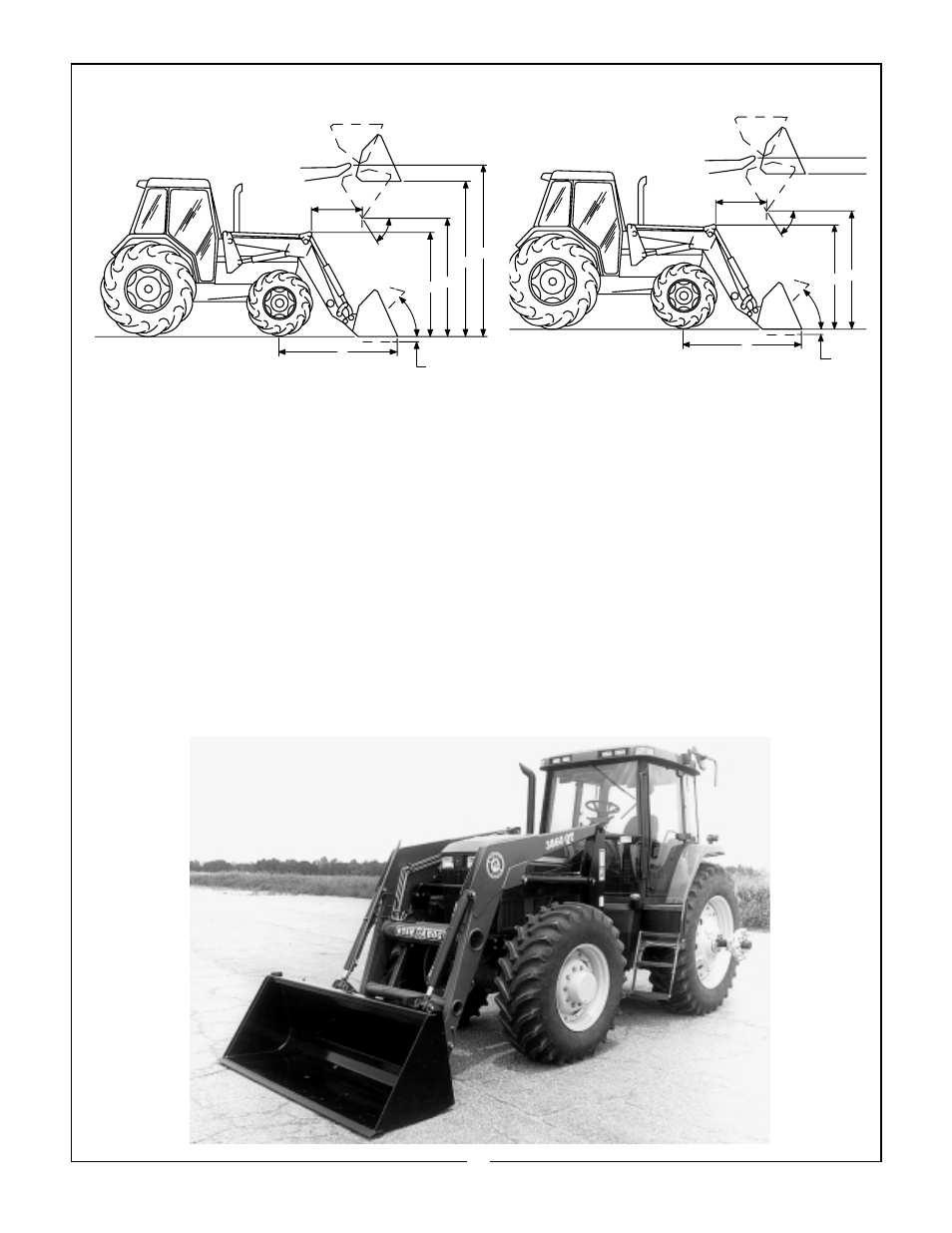

Model 3860 QT Technical Specifications
G
E
J
C
B
A
H
F
D
8
A. Maximum Lift Height - Measured at Pivot Pin . . . .176"
B. Maximum Lift Height - Under Level Bucket . . . . . 170"
C. Clearance with Attachment Dumped 45º . . . . . . . 148"
D. Reach at Maximum Height . . . . . . . . . . . . . . . . . . . . 33”
E. Maximum Dump Angle . . . . . . . . . . . . . . . . . . . . . . . 34°
F. Reach with Bucket on Ground . . . . . . . . . . . . . . . . 89”
G. Maximum Rollback Angle . . . . . . . . . . . . . . . . . . . . 19°
H. Digging Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5”
J.
Overall Height in Carry Position . . . . . . . . . . . . . . . 81”
U. Lift Capacity to Maximum Height - At Pivot Pin . . 4580 lbs.
V. Lift Capacity to Maximum Height -
31.5” Forward of Pivot Pin . . . . . . . . . . . . . . . . . . . 3680 lbs
.
W. Lift Capacity to 59” Height - At Pivot Pin . . . . . . . 7100 lbs.
X. Lift Capacity to 59” Height -
31.5” Forward of Pivot Pin . . . . . . . . . . . . . . . . . . . 4970 lbs.
Y. Breakout Force - At Pivot Pin . . . . . . . . . . . . . . . . 8400 lbs.
Z.
Breakout Force - 31.5” Forward of Pivot Pin .
6050 lbs.
VV. Rollback Force at Maximum Height -
31.5” Forward of Pivot Pin . . . . . . . . . . . . . . .
7706lbs.
XX. Rollback Force at 59” Height -
31.5” Forward of Pivot Pin . . . . . . . . . . . . . .
6787 lbs.
ZZ.
Rollback Force at Ground Level -
31.5” Forward of Pivot Pin . . . . . . . . . . . . . .
5250 lbs.
Raising Time - Ground Level to Full Height . .
5.7 sec.
Lowering Time - Full Height to Ground Level .
5.1 sec.
Bucket Dumping Time - Full Rollback
to Full Dump . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 sec.
Bucket Rollback Time - Full Dump
to Full Rollback . . . . . . . . . . . . . . . . . . . . . . . .
3.8 sec.
Specififications based on tractor system of 2800 psi hydraulic pres-
sure and 28 gpm pump capacity. Specifications will vary slightly
with different tractors.
SPECIFICATIONS BASED ON 1997 ASAE STANDARDS AND SUBJECT
TO CHANGE WITHOUT NOTICE
