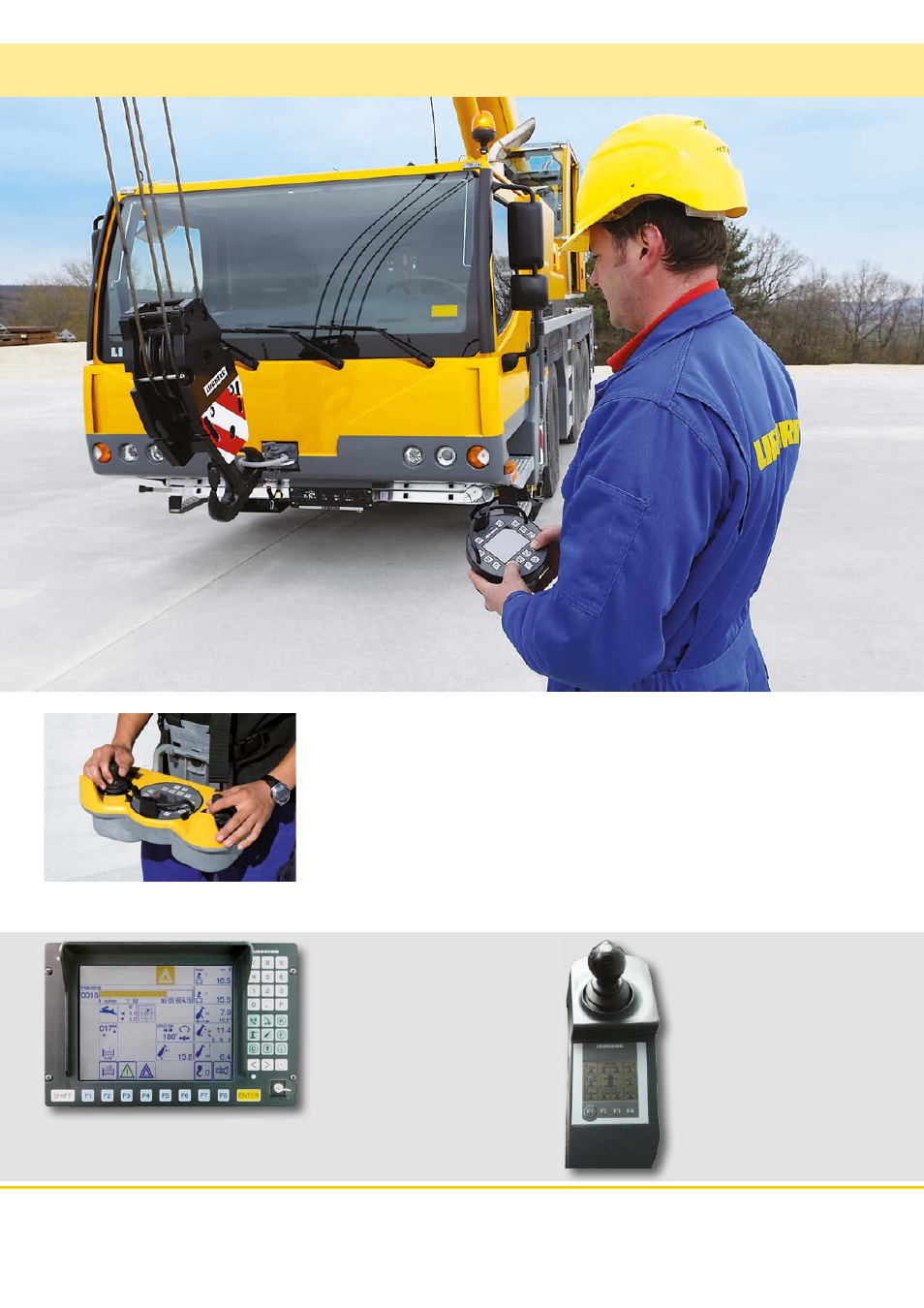

LICCON2 – safe and comfortable
Colour monitor
The readability of the data on
the monitor of the LICCON2
control system in the crane
cab is enhanced by the
colour display. Warnings and
crane utilization are consider-
ably better recognized.
Wireless remote control
(option)
All crane motions can be controlled
outside of the cab.
• Higher efficiency
• Free view and closeness to the load
• Prevention of communication errors
between the crane driver and the job
site personnel
Attaching and detaching of the
hook block
The BTT – Bluetooth Terminal offers the crane driver
the possibility to attach or detach the hook block at the
front of the vehicle within sight, as the hoist winch and
the luffing cylinder of the telescopic boom are remote
controlled.
Touch displays
Below the joy sticks integrat-
ed in the armrests the touch
displays are installed, with
which the various operational
functions can be selected.
These are beside others the
supporting of the crane, the
adjustment of the working
floodlights as well as heater
and air condition controls.
Supporting the crane
By use of the BTT the mobile crane will
be setup comfortably and safely. En-
gine start/stop and speed regulation,
electronic inclination display and auto-
matic levelling are standard. Optionally
the BTT can also display the outrigger
forces.
