Working range - fixed jib, 15° and 30, Boom configuration for boom lengths – Liebherr LR 1250 User Manual

Page 20: Fixed jib configuration for fixed jib lengths, Main boom 88° – 30, 20 m – 77 m), 11 m – 26 m)

background image

20

LR 1250

Boom configuration for boom lengths

(20 m – 77 m)

–

see table 1 on page 10

Fixed jib configuration for fixed jib lengths

(11 m – 26 m)

Length

Amount of fixed jib extensions

Fixed jib foot

5.5 m

1

1

1

1

1

1

Fixed jib insert

3 m

1

1

1

Fixed jib insert

6 m

1

1

2

2

Fixed jib head

5.5 m

1

1

1

1

1

1

Fixed jib length (m)

11

14

17

20

23

26

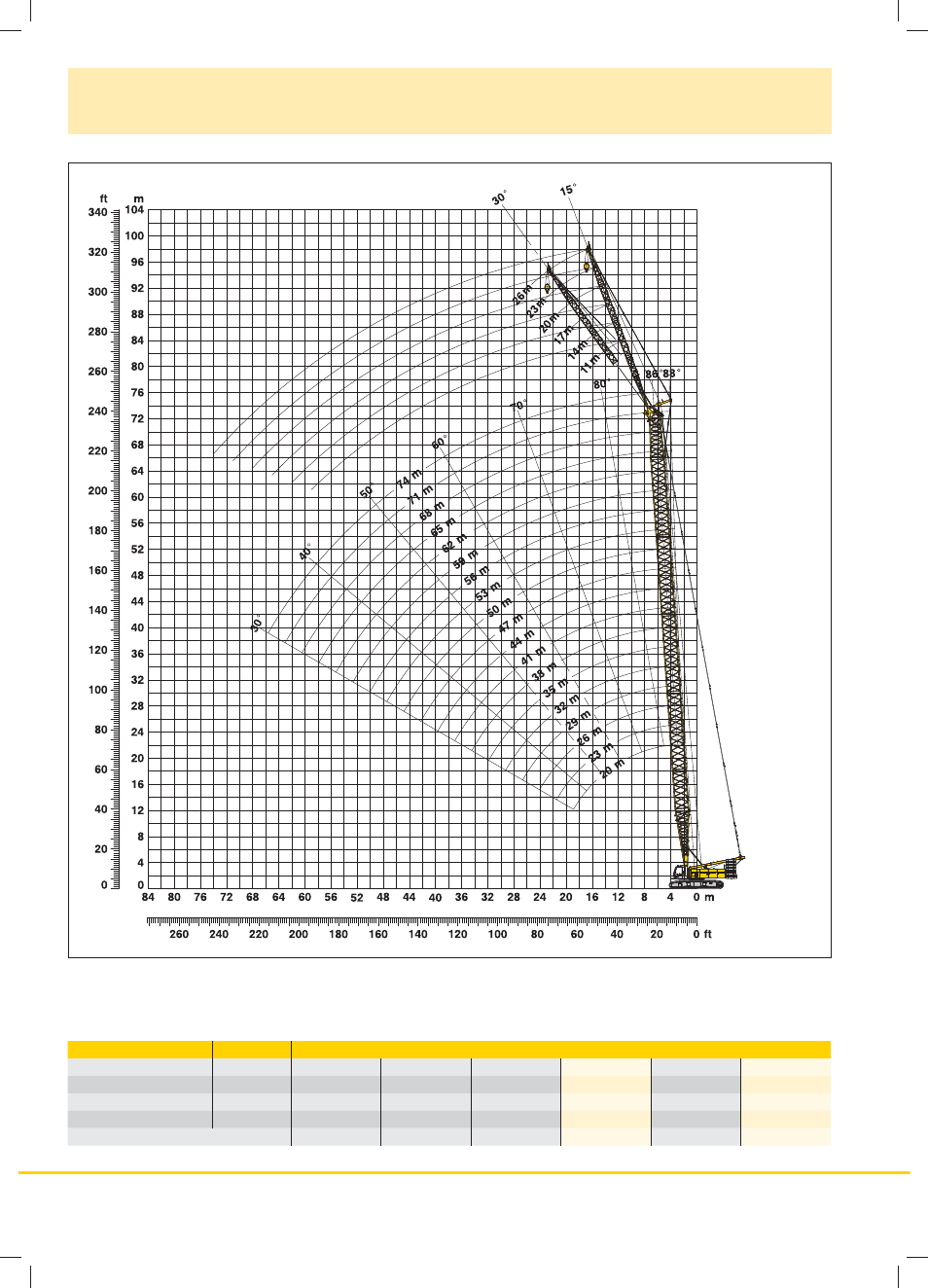

Working range - fixed jib

(No. 1008.xx)

15° and 30°

Main boom 88° – 30°
