Briggs & Stratton 326400 - Manual (Page 26)

326400
6179−26

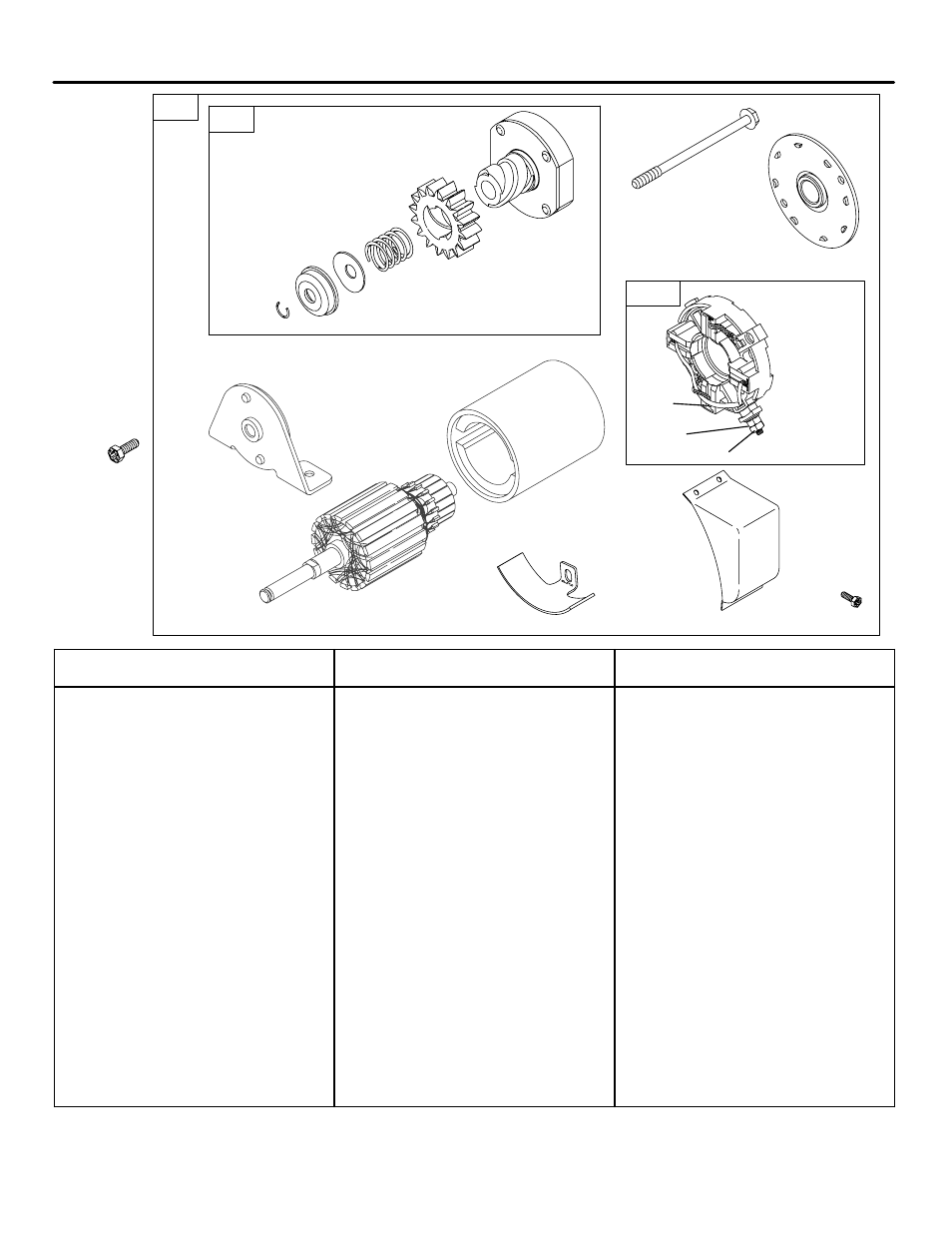

Assemblies include all parts shown in frames.
03/18/2009
26
544
802
801
803
310B
697
311
1051
309
510
1090
797
783
513
675
668B 732
727
309 396306 Motor−Starter
310B 691263 Screw
(Starter Motor)
(4 3/4” Long)
311 497608 Brush Set
510 696541 Drive−Starter
513 692024 Clutch−Drive
544 Armature−Starter
(Serviced By 396306
Starter Motor Only)
668B 396515 Spacer
675 691261 Washer
(Brush Retainer)
697 691058 Screw
(Drive Cap)
727 692338 Cover−Starter Drive
732 93410 Screw
(Starter Drive Cover)
783 695708 Gear−Pinion
797 691029 Nut
(Brush Retainer)
801 Cap−Drive
(NO LONGER
AVAILABLE)
802 691286 Cap−End
803 Housing−Starter
(Serviced By 396306
Starter Motor Only)
1051 691265 Ring−Retaining
1090 691293 Retainer−Brush
Engine Gasket Set−Reference 358
Carburetor Overhaul Kit−Reference 121
Valve Gasket Set−Reference 1095
