326400
6179−10

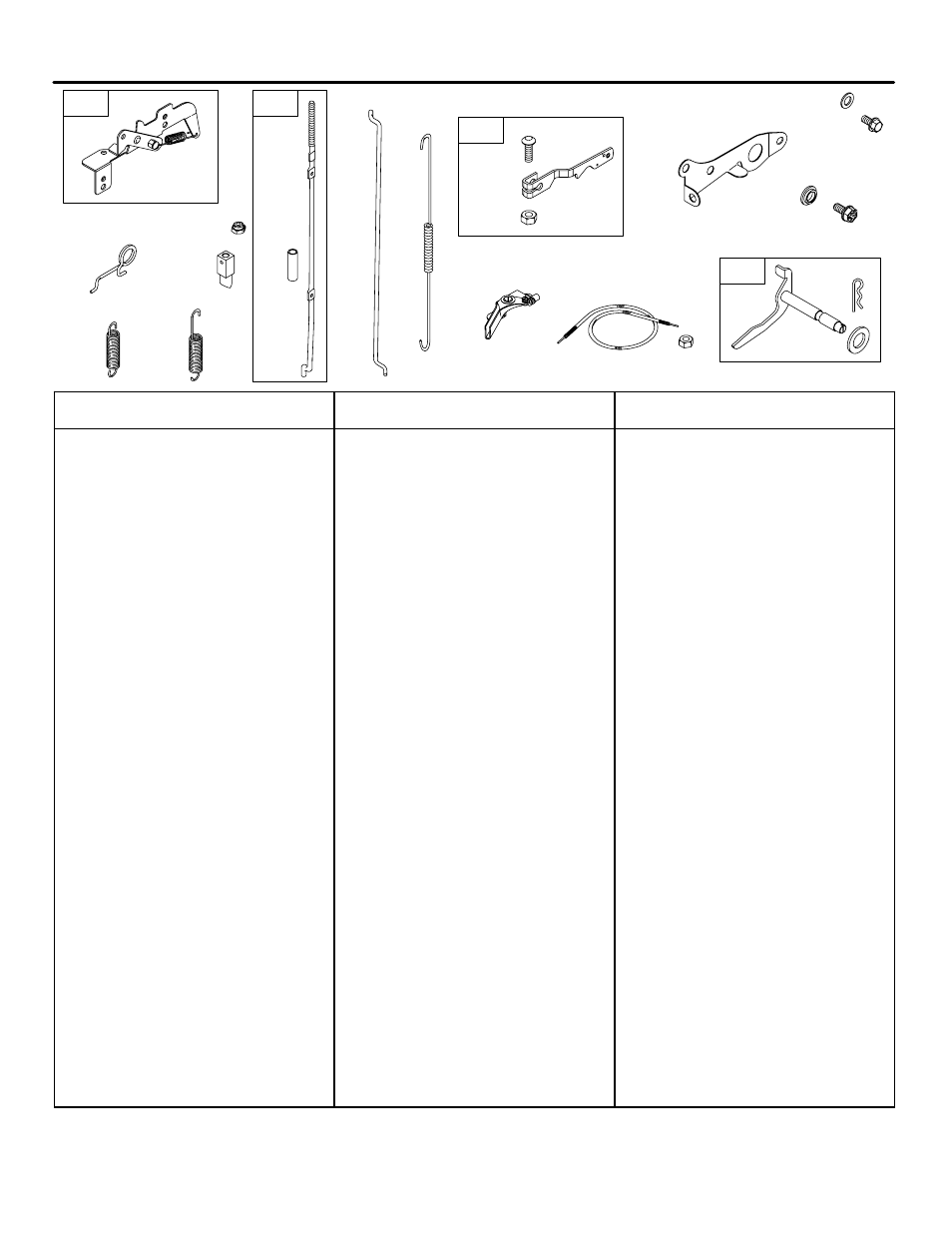

Assemblies include all parts shown in frames.
03/18/2009
10
212
208
206A
162
209
211
232
203
614
404
206
205
562
505
668
270
268
269
271
629
227
616
205A
414
201
266
162 690267 Collar−Bell Crank
201 261027 Link−Air Vane
Used on Type No(s).
0234, 0705.
203 690263 Crank−Bell
205 691681 Screw
(Bell Crank)
Used on Type No(s).
0136, 0139, 0204,
0228, 0234, 0248,
0328, 0678, 0705.
205A 690810 Screw
(Bell Crank)
206 691079 Nut−Governor
Adjusting
206A 691584 Nut−
Governor Adjusting
208 393613 Rod−Governor Control
209 691596 Spring−Governor
−−−−−−− Note −−−−−
691789 Spring−
Governor
Used on Type No(s).
0611, 0630, 0647,
0651, 0690, 0760,
0781, 0801, 2520,
2527, 2528, 2529,
2550, 2581, 2582.
211 691790 Spring−Governed Idle
Used on Type No(s).
0611, 0630, 0647,
0651, 0690, 0760,
0781, 0801, 2520,
2527, 2528, 2529,
2550, 2581, 2582.
212 691791 Link−Throttle
−−−−−−− Note −−−−−
691595 Link−Throttle
Used on Type No(s).
0248, 0308, 0358,
0638, 0707, 0770.
227 690607 Lever−
Governor Control
−−−−−−− Note −−−−−
690616 Lever−
Governor Control
Used on Type No(s).
0611, 0630, 0647,
0651, 0684, 0690,
0706, 0721, 0660,
0671, 0675, 0681,
0683, 0685, 0689,
0692, 0694, 0697,
0699, 0801, 2520,
2527, 2528, 2529,
2550, 2561, 2581,
2582.
232 690545 Spring−Governor Link
−−−−−−− Note −−−−−
692207 Spring−
Governor Link
Used on Type No(s).
0248, 0308, 0358,
0638, 0707, 0770.
266 494554 Control−Throttle
−−−−−−− Note −−−−−
Control−Throttle
(Dial Control)
(NO LONGER
AVAILABLE)
Used on Type No(s).
0640, 0652, 0653,
0665.
268 691025 Casing−Control Wire
(Cut to
Required Length)
269 691026 Wire−Control
(Cut to
Required Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever−Control
−−−−−−− Note −−−−−
221987 Lever−Control
Used on Type No(s).
0678, 0705.
404 690264 Washer
(Governor Crank)
414 692810 Washer
(Bell Crank)
Used on Type No(s).
0136, 0139, 0204,
0228, 0234, 0248,
0328, 0678, 0705.
505 691251 Nut
(Governor
Control Lever)
562 92613 Bolt
(Governor
Control Lever)
614 691620 Pin−Cotter
616 291364 Crank−Governor
629 690538 Spring−Throttle Return
Used on Type No(s).
0234, 0631, 0632,
0637, 0641, 0642,
0705, 0803, 2580.
668 690313 Spacer
(Governor
Control Rod)
Engine Gasket Set−Reference 358
Carburetor Overhaul Kit−Reference 121
Valve Gasket Set−Reference 1095
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
