326400
6179−2

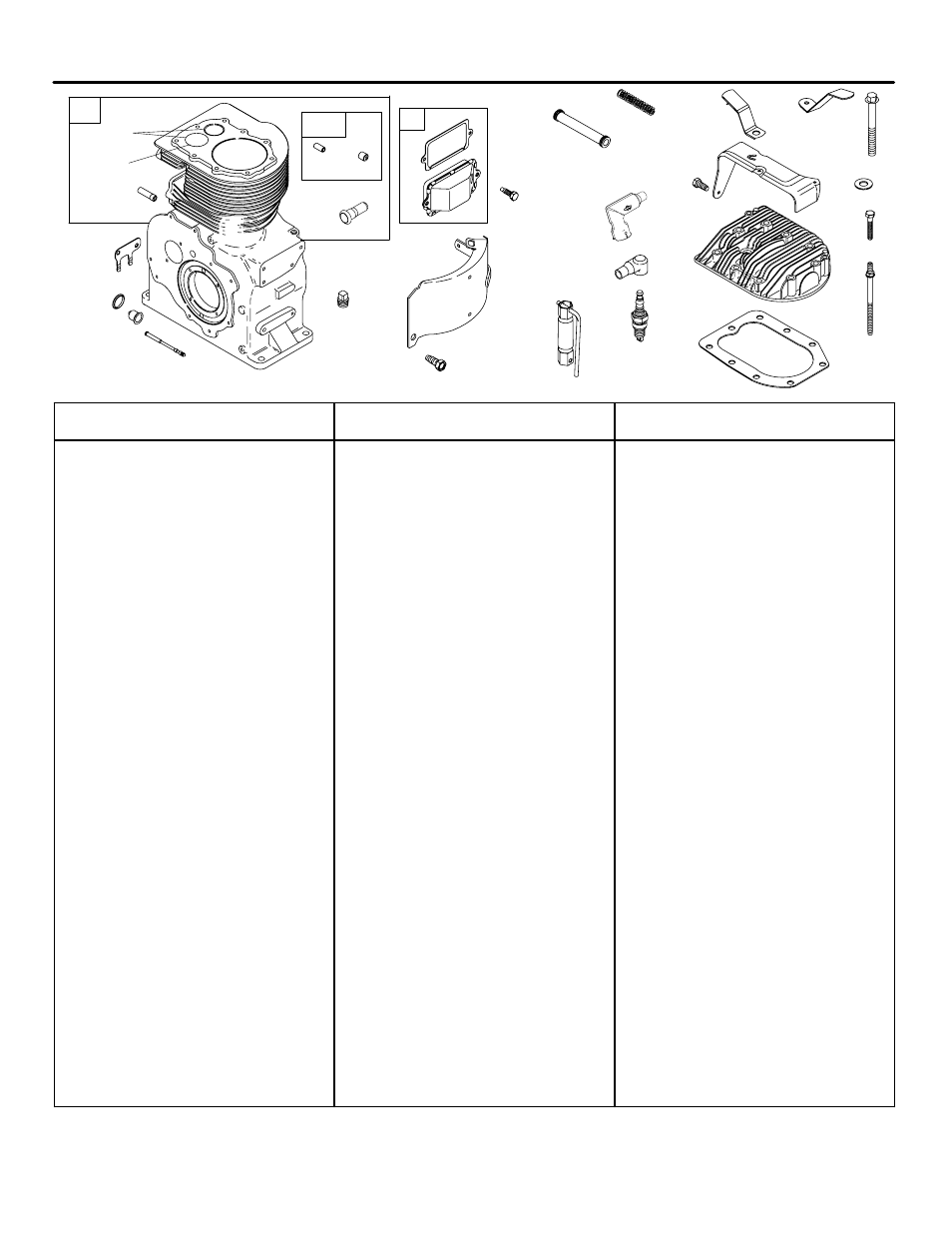

Assemblies include all parts shown in frames.
03/18/2009
2
13A
9
10
383
635
6
7
5
308
11
337
645
406
342
989
307
724A
724
722
989A
13
362
322
15
8
552
14
626
871
870
415
306
1
1 395663 Cylinder Assembly
5 691712 Head−Cylinder
6 691261 Washer
(Cylinder Head)
7 692231 Gasket−Cylinder Head
8 495738 Breather Assembly
9 27803s Gasket−Breather
10 690294 Screw
(Breather Assembly)
11 691512 Tube−Breather
13 691614 Screw
(Cylinder Head)
(1 3/4” Long)
−−−−−−− Note −−−−−
691640 Screw
(Cylinder Head)
(2 1/16” Long)
13A 691441 Screw
(Cylinder Head)
(2 7/16” Long)
14 691690 Stud
(Cylinder Head)
15 692833 Plug−Oil Drain
306 299536 Shield−Cylinder
307 690294 Screw
(Cylinder Shield)
308 691731 Cover−Cylinder Head
(Used After Code Date
75060800).
−−−−−−− Note −−−−−
221953 Cover−
Cylinder Head
(Used Before Code
Date 75060900).
Used on Type No(s).
0291, 0648.
322 692198 Screw
(Cylinder Head Cover)
337 802592s Plug−Spark
342 298125s Plunger−Breaker
362 793351 Shield−Spark Plug
383 89838 Wrench−Spark Plug
406 690533 Spring−Breather Tube
415 692882 Plug
(Cylinder)
552 393666 Bushing−
Governor Crank
626 690512 Spacer−
Governor Crank
635 66538s Boot−Spark Plug
645 692880 Bushing−Plunger
722 68768 Seal−Plunger
724 93516 Retainer−Seal
724A 221873 Retainer−Seal
870 691583 Seat−Valve
(Exhaust)
871 231218 Bushing−Valve Guide
989 690578 Stop Switch−
Spark Plug
−−−−−−− Note −−−−−
293739 Stop Switch−
Spark Plug
Used on Type No(s).
0200.
298926 Stop Switch−
Spark Plug
Used on Type No(s).
0028, 0062, 0138,
0187, 0195, 0220,
0232, 0237, 0238,
0243, 0266, 0295,
0320, 0327, 0658,
0663, 0675, 0680,
0681, 0687, 0691,
0729, 0730, 0735,
2528, 2562.
390785 Stop Switch−
Spark Plug
Used on Type No(s).
0640, 0734.
989A 690633 Stop Switch−
Spark Plug
Engine Gasket Set−Reference 358
Carburetor Overhaul Kit−Reference 121
Valve Gasket Set−Reference 1095
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
